About 8118 IPE V1.0
Poziciigado:
• A legacy high-power motor designed for 4.5–7.5 kg single-axis loads.
• Engineered to deliver both the efficiency of the 8108 series and significantly greater thrust.
• Once favored in aerial platforms with 30–32 inch props, now commonly adopted in robotic arm systems.
Ĉefaj trajtoj:
✔ Delivers up to 17.5 kg maximum thrust per axis with large carbon fiber props.
✔ 660g single motor weight ensures a balance between strength and manageable payload.
✔ Reliable structure ideal for industrial-grade motion systems and experimental builds.
Perfekta por:
• Robotic arm designs requiring high torque and stability.
• Legacy platform users transitioning to M9C12 100KV or 90KV for enhanced performance.
Motordatumoj |
|||
| Motormodelo | MAD 8118 IPE V1.0 | Nombro de polparoj | 20 |
| Statoro | Kontraŭkoroda | Varnisita drato Grado | 180°C |

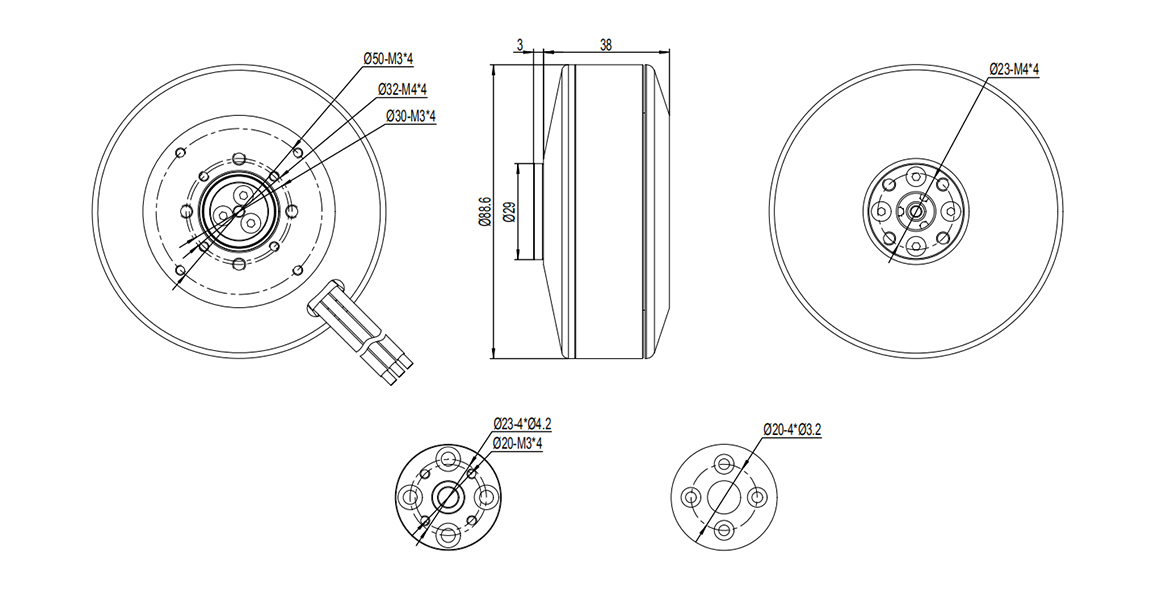

| Motora grandeco | D:88.6 × 41 mm | Magneta grado | 150°C |
| Protekta grado | IP35 | Kabla longo | 150 mm 16# Awg (nigra) silikono |
| Centrifuga varmodissipado | Jes | Rotora ekvilibrigo | ≤10 mg |
| Propelera muntadtruoj | D:23 M4×4 | Motora ekvilibro | ≤20 mg |
| Aksdiametro | EN: 15 mm | Motormuntadtruoj | D:30 M3×4, D:32 M4×4, D:50 M3×4 |
| Ŝafto | 6802ZZ*2 | Disrupta testo | kvincent voltoj |

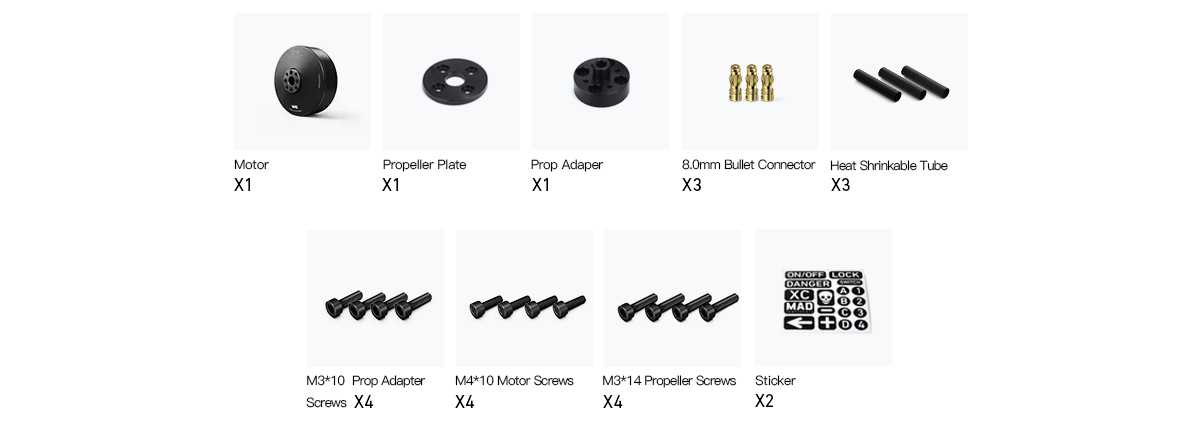

Akcesoraĵoj
