About M6C08 EEE V2.0
Poziciigado:
• A high-efficiency motor from the ANTIMATTER series, designed for 2–4 kg single-axis payloads.
• Optimized for use with 20–24 inch carbon fiber propellers.
• Developed through a year-long design and validation process to redefine efficiency in multi-rotor propulsion.
Ĉefaj trajtoj:
✔ Supports 6S, 8S, and 12S voltage configurations.
✔ Unique stator architecture with 24N28P configuration.
✔ Delivers up to 7.6 kg thrust per axis with a lightweight 188g design.
Perfekta por:
• Multi-rotor platforms carrying 2–4 kg payloads per motor.
• Drones using 20–24 inch props requiring high thrust-to-weight ratio.
• Builders seeking tested, high-efficiency propulsion within the ANTIMATTER series.
| Motordatumoj | |||
|---|---|---|---|
| Motormodelo | MAD M6C08 EEE V2.0 | Nombro de polparoj | 14 |
| Stator Size | Kontraŭkoroda | Varnisita drato Grado | 180°C |

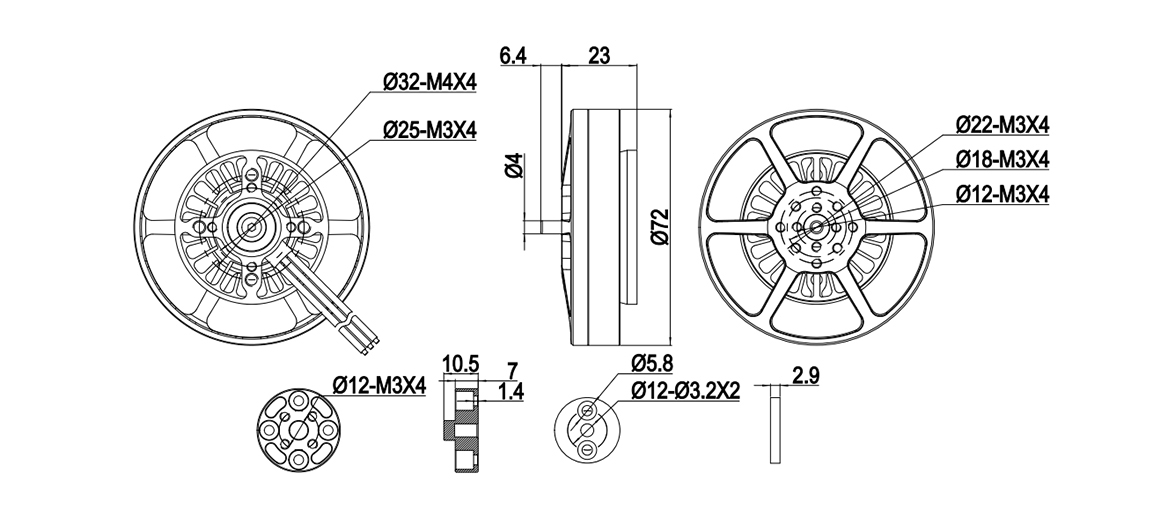

| Motora grandeco | D:72 × 29.4 mm | Magneta grado | 150°C |
| Protekta grado | Pluvoprotekto | Kabla longo | 60 mm 16# Awg(Black) silicone |
| Centrifuga varmodissipado | Sendependa | Rotora ekvilibrigo | ≤5 mg |
| Propelera muntadtruoj | D:12 M3×4,D:18 M3×4,D:22 M3×4 | Motora ekvilibro | ≤10 mg |
| Aksdiametro | IN: 6mm | Motormuntadtruoj | D:25 M3×4, D:32 M4×4 |
| Ŝafto | 696ZZ*2 | Disrupta testo | kvincent voltoj |

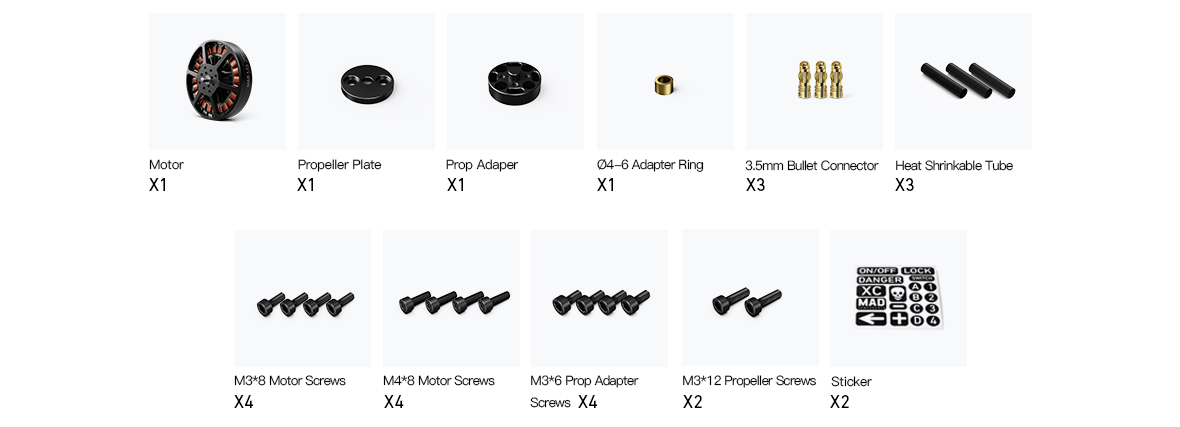

Akcesoraĵoj
