SKYRC PC2500 SPECIFICATIONS
Wheelbase: Screws
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Adaptilo
Tool Supplies: Cutting
Technical parameters: KV1100
Size: As description
Remote Control Peripherals/Devices: Remote Controller
RC Parts & Accs: Connectors/Wiring
Quantity: 1 pcs
Plastic Type: PC
Origin: Mainland China
Model Number: PC2500
Material: Plastic
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Airplanes

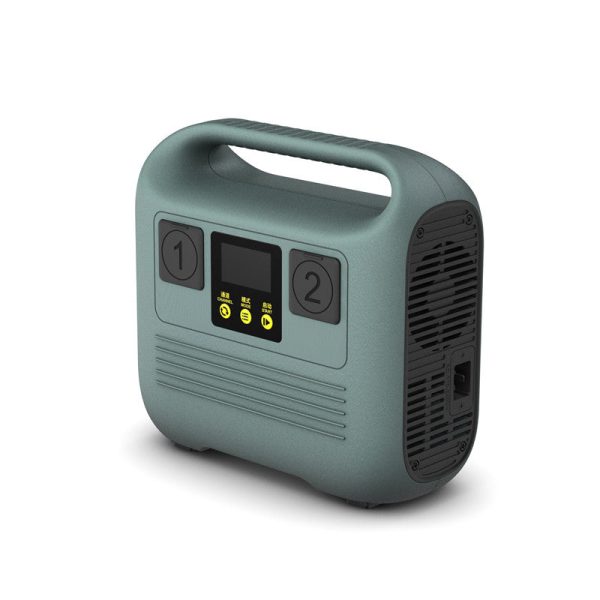

SKYRC PC2500 12/14S Agricultural UAV Intelligent 2500W 45A 4 Channel High-power Fast Charging Lithium Battery Charger For Drone
SkyRC PC2500 battery charger can connect four batteries at the same time. The charger’s maximum output power is up to 2500W. with three modes: Fast(Fast Charge). Charge(Slow Charge). Storage. The charger can recognize the batteries with customized CAN communication instantly. Charging is convenient and straightforward with a better user experience.
Main Features:—The Max. output can reach 2500W and the Max. Current is 45A. a 12S 16000mah battery can be fully charged in about 15 minutes;
—The LCD shows the charging process in real time. such as the charging time. battery percentage. single cell voltage and etc;
—PC2500 charger comes with built-in CAN Bus communication;
—Effectively filtering dust and sediment with a high-quality ventilator
—Short Circuit Protection;
—Reverse Polarity Protection;
—Over-temperature Protection.
Item brand: SKYRC
Item Model: PC2500 Size and Weight
Housing Material: Plastic (Flame Retardant PC+ABS)
Size: 294mmx139mmx282mm
Weight: 5.6Kg
Power Supply: AC Input: 100-240V
Charging Power:
AC220V：2500W
AC120V：1200W
Type：Lithium Battery
LiPo Battery Cells： 12S/14S
LiHV Battery Cells：12S Charge/Discharge
AC 220V
Fast Charge Current: max. 45A single channel
Slow Charge Current: max. 20A single channel; max. 45A multi channels in total
AC 120V
Fast Charge Current: max. 1200W single channel
Slow Charge Current: max. 20A single channel; max. 1200W multi channels in total
Storage Discharge Power
Main Port: 75W Max.
Balance Port: 80W Max. (The current will be adjusted based on the balance port’s temp)
Max Charge Output Power
AC220V Output Power: 2500W
AC120V Output Power: 1200W
Discharge Power：60W
Charging Mode：Fast Charge. Slow. Storage
Working Temperature: 0℃-40℃
Working Humidity: 0%-75%
Storage Temperature: -10℃-70℃
Storage Humidity: 0%-75%
This high-power charger features four channels. allowing you to charge multiple batteries simultaneously. It supports both smart batteries and standard lithium batteries. with pre-charge protection and intelligent charging current adjustment based on battery voltage. The CAN Bus readiness enables compatibility with different circumstances. extending battery life while also providing a fast and reliable charging experience.
