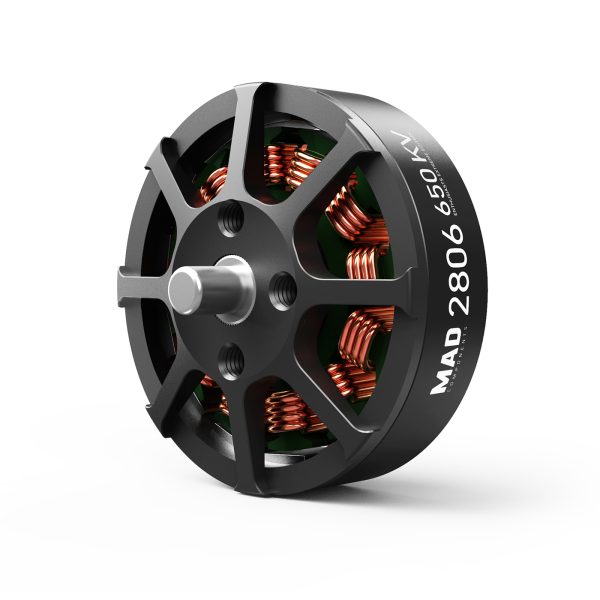

2806 EEE Drone Motor Overview
The MAD 2806 EEE V1.0 is a compact aerial motor with published 400KV and 650KV options. The product data specifies a 6S configuration, a 35 × 19.8 mm motor size and a 4 mm shaft.
Key Features
- 12N14P multi-slot stator design stated in the product data.
- 6061-T6 aluminum alloy housing.
- Independent centrifugal heat dissipation and rotor balance of ≤3 mg.
- Rain protection and a 50 mm extended enameled-wire lead.
Technical Specifications
| Motor model | MAD 2806 EEE V1.0 |
|---|---|
| KV options | 400KV / 650KV |
| Operating configuration | 6S, as listed for this product |

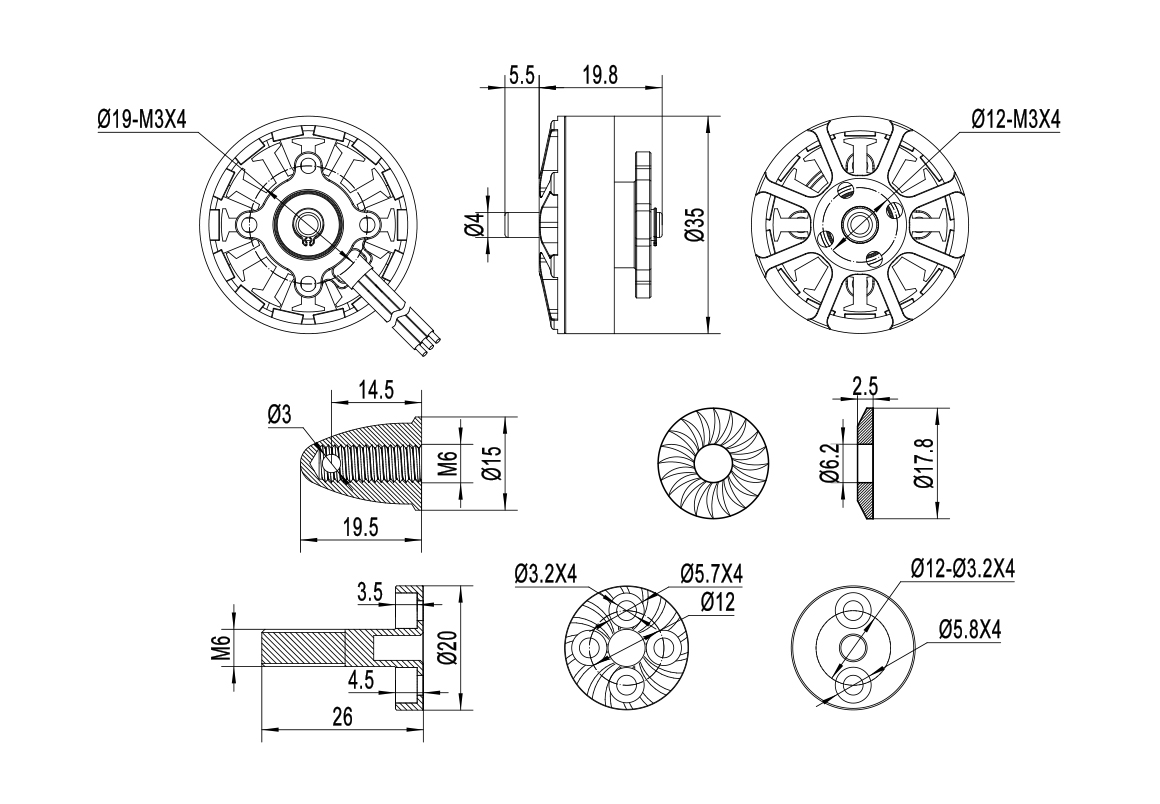

| Motor size | D35 × 19.8 mm |
| Shaft diameter | 4 mm |
| Propeller mounting | D12 M3×4 |
| Motor mounting | D19 M3×4 |
| Rodamiento | NSK 694ZZMC3×1 |
| Rotor balance | ≤3 mg |
Application and Compatibility
The compact 35 mm class format and listed 6S configuration suit aerial survey, mapping and training-quad builds when the selected KV and propeller are matched to the aircraft electrical system. Confirm the final propeller and ESC before purchase.
Preguntas frecuentes
Which KV options are available?
The product lists 400KV and 650KV options. The correct selection depends on the battery, propeller and required operating point.
What mounting information is published?
The listed motor mounting pattern is D19 M3×4 and the propeller mounting pattern is D12 M3×4.
Request a Quote
Send the required KV option, battery configuration, propeller specification and quantity for a compatibility review and quotation.
