About this item
• A high-efficiency, ultra-lightweight motor built for 2–3 kg single-axis payloads
• Tailored for 21–24 inch carbon propellers, offering up to 5.4 kg of thrust per axis
• Part of the ENTHUSIASTS EXTREME EDITION series—engineered for extreme weight reduction without sacrificing performance
Ĉefaj trajtoj:
✔ Supports 6S, 8S, and 12S voltage configurations for flexible builds
✔ Weighs only 163g with a maximum hollow design for rapid heat dissipation
✔ Advanced 24N28P stator structure ensures high torque output and smooth operation
✔ Optimized magnetic flux density through simulation testing for energy-efficient performance
Perfekta por:
• High-performance drones requiring lightweight yet powerful propulsion
• Aerial platforms carrying 1.5–2.5 kg payloads on each axis
• Builders pushing for endurance and stability without excess motor weight
| Motordatumoj | |||
|---|---|---|---|
| Motormodelo | MAD M6C06 EEE V2.0 | Nombro de polparoj | 14 |
| Statoro | Kontraŭkoroda | Varnisita drato Grado | 180°C |

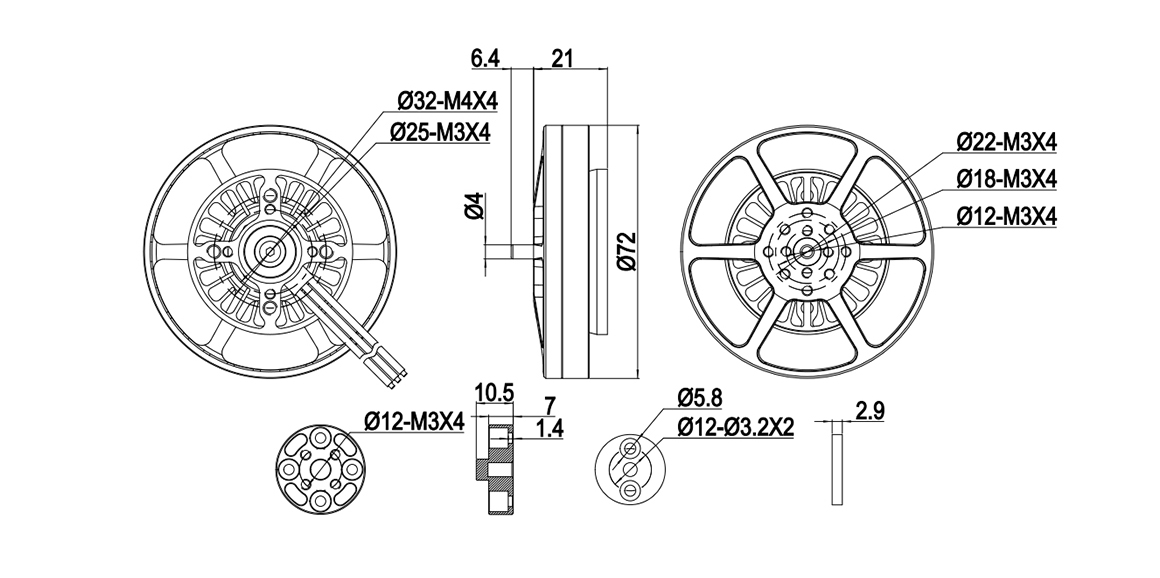

| Motora grandeco | D:72 × 27.4 mm | Magneta grado | 150°C |
| Protekta grado | Pluvoprotekto | Kabla longo | 60 mm 16# Awg(Black) silicone |
| Centrifuga varmodissipado | Sendependa | Rotora ekvilibrigo | ≤5 mg |
| Propelera muntadtruoj | D:12 M3×4,D:18 M3×4,D:22 M3×4 | Motora ekvilibro | ≤10 mg |
| Aksdiametro | EN: 6 mm | Motormuntadtruoj | D:25 M3×4, D:32 M4×4 |
| Ŝafto | 696ZZ *2 | Disrupta testo | kvincent voltoj |

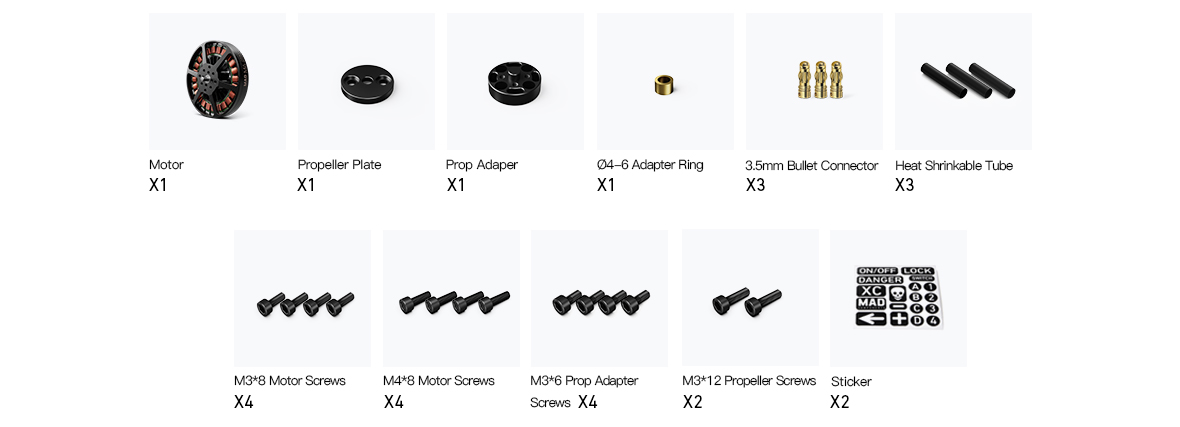

Akcesoraĵoj
