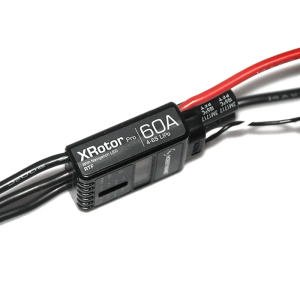

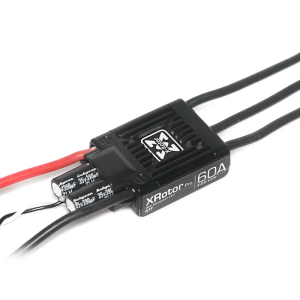

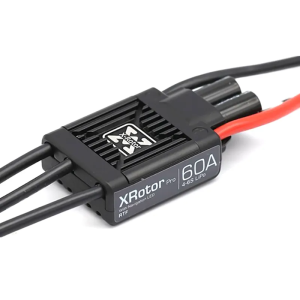

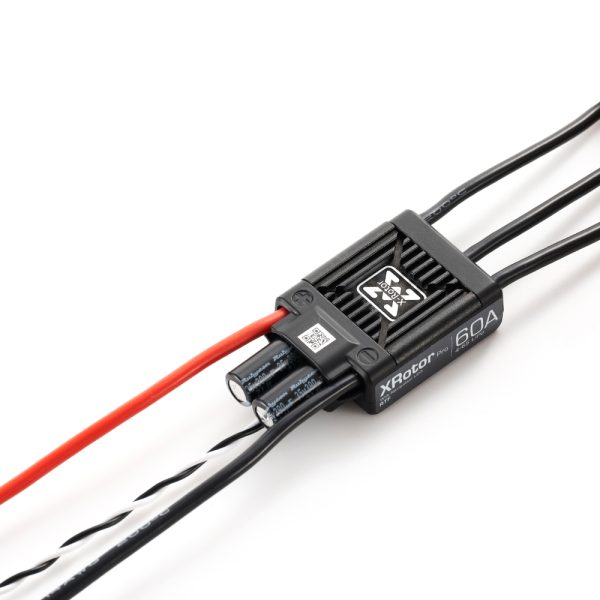

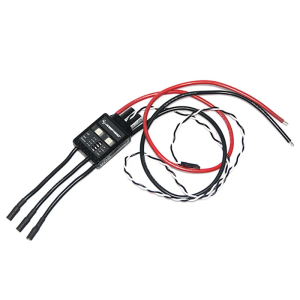

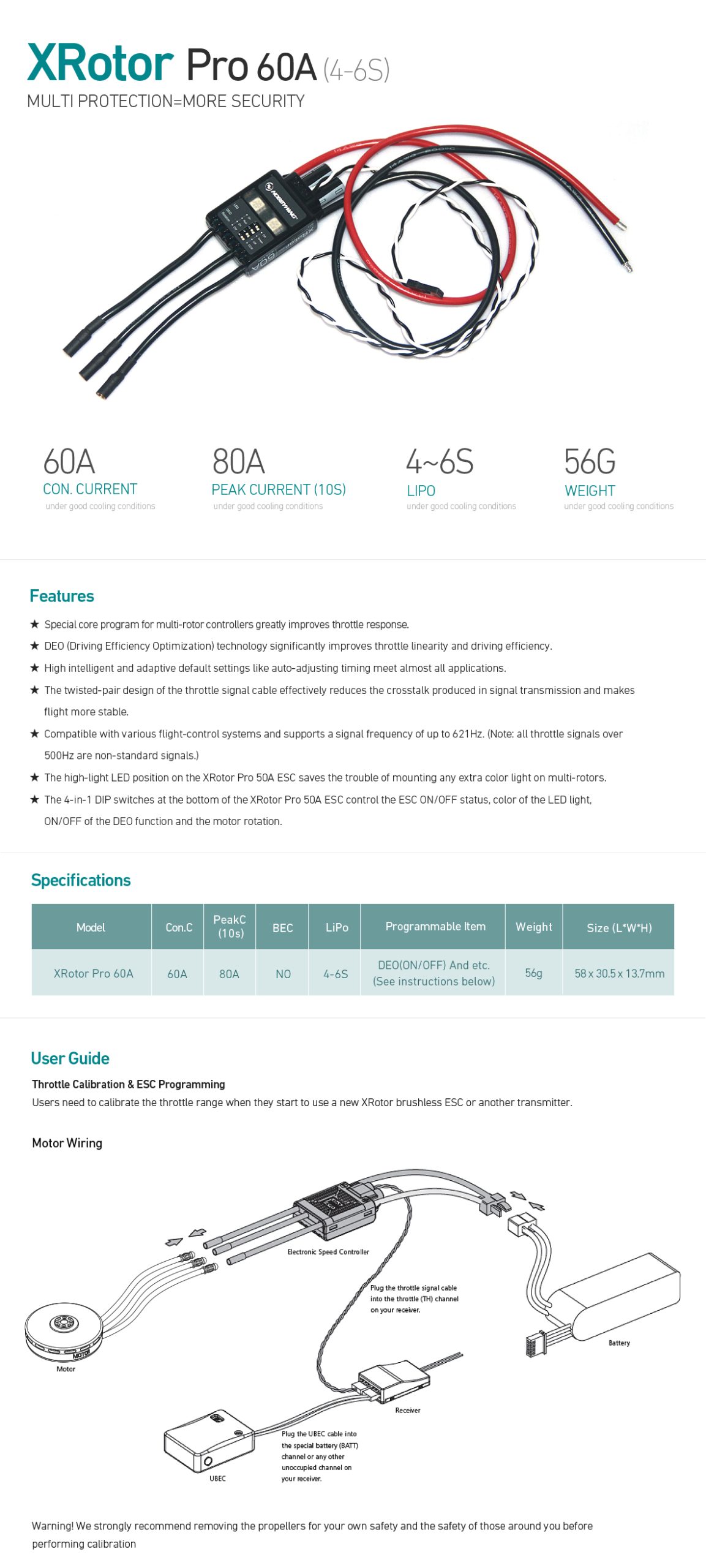

XROTOR Pro 60A (4–6S) is a Hobbywing XRotor Pro H60A 6S BLDC ESC for industrial and professional multirotor systems. The official specification lists a 4–6S input range, equivalent to 12–27V, 40A continuous current with good heat dissipation, and 60A peak current for 3 seconds. It has no BEC.
The controller supports CAN and PWM throttle, CAN+PWM digital throttle, 5V/3.3V PWM input, 50–500Hz throttle frequency, and 1100–1940μs pulse width. The official listing gives a −40°C to 65°C operating range, IP55 protection, firmware updates, and fault storage for 1–24 hours of operating data and fault codes. Weight without cable is 53g and dimensions are 71.2×32.5×17.4mm. The listed cables are 14AWG input at 180mm, 16AWG output at 75mm, and a shielded five-core 350mm signal cable. Match the ESC to the motor, battery, propeller load and cooling airflow before testing.
For a related 4-in-1 controller, compare Xrotor 65A 4-in-1 Lite. For a lower-current option, review XROTOR Pro 40A. Browse Reachsky Drone ESCs for other voltage ranges.
XROTOR Pro 60A FAQs
What battery range is listed?
The official H60A 6S specification lists 4–6S or 12–27V input.
What are the current ratings?
The official specification lists 40A continuous current with good cooling and 60A peak current for 3 seconds.
Does this ESC include a BEC?
No. The official specification lists no BEC, so the aircraft power architecture must provide the required receiver and flight-controller supply.
