4012 EEE Drone Motor Overview

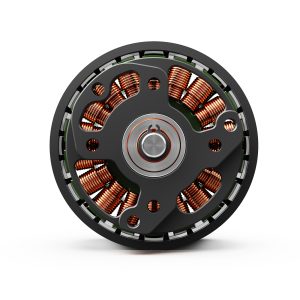

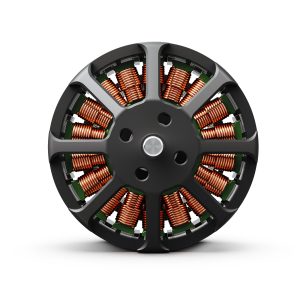

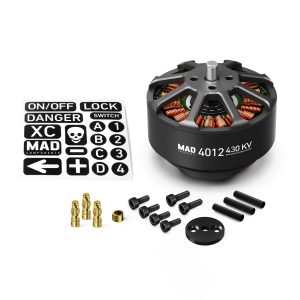

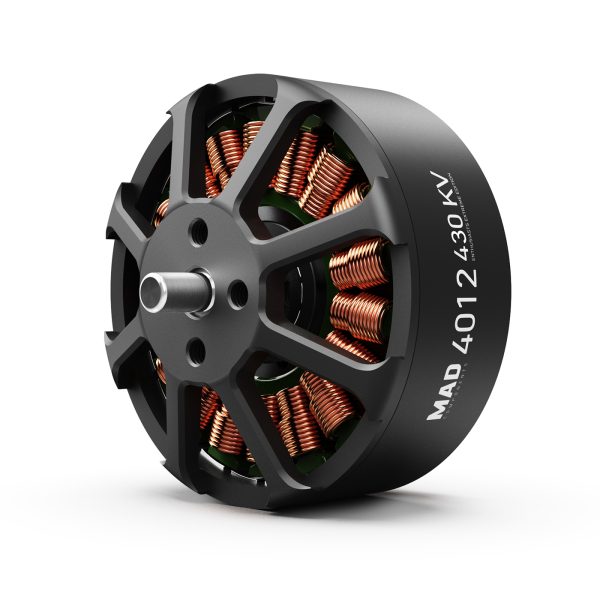

The MAD 4012 EEE V1.0 is a 430KV motor with a D44.9 × 37.9 mm size and 5 mm shaft. Use the published mounting data to check frame compatibility.
技术规格
| KV | 430千伏 |
|---|---|
| Motor size | D44.9 × 37.9 mm |
| Shaft | 5 mm |
| Motor mounting | D25 M3×4; D32 M2.5×3 |
| Propeller mounting | D12 M3×4 |
| Lead | 600 mm, 18# AWG black silicone |
| Protection | 防雨措施 |
| 轴承 | 685ZZ×1 / 695ZZ×1 |
选择与兼容性
This EEE variant is distinguished by its fixed 430KV rating, 5 mm shaft and two mounting patterns. Confirm the propeller, battery and ESC before integration.
常见问题解答
Which mounting patterns are listed? Motor mounting is D25 M3×4 and D32 M2.5×3; propeller mounting is D12 M3×4.
索取报价
Send the motor application, battery, propeller, ESC and quantity for a compatibility review.
