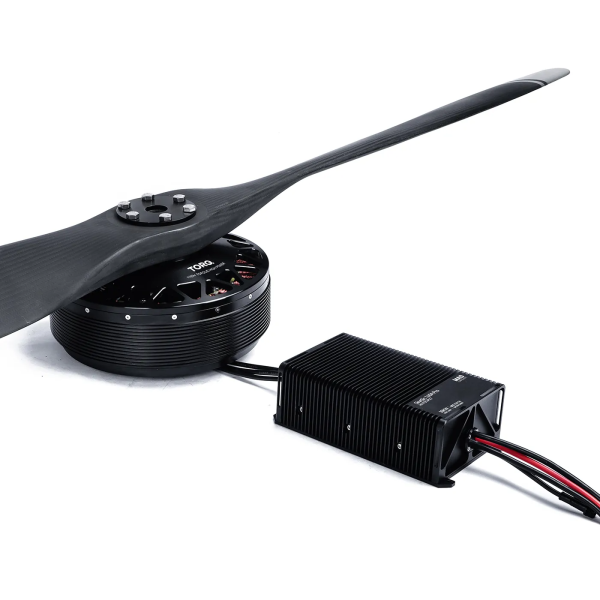

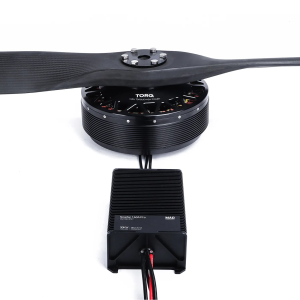

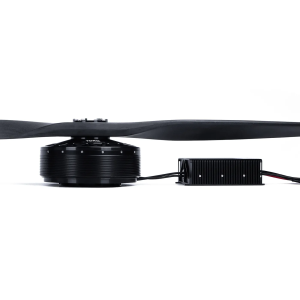

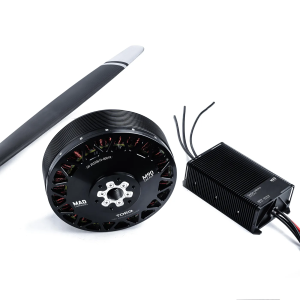

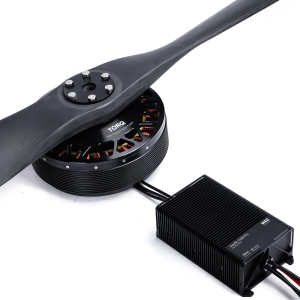

HB110 Drone Power Combo is an integrated heavy-lift propulsion package for large multirotors, e-VTOL aircraft, delivery drones, and urban-mobility platforms. The official MAD specification identifies a 9KV M90C60 EEE motor, a SineSic Pro 160A FOC ESC, and a matched propeller option of 72×31 or 73×29. Each rotor is rated for 110 kgf continuous thrust, with maximum power around 55 kW; the official technical listing also reports up to 201 kg maximum thrust.
Use the combo when the aircraft electrical system and structure are prepared for a 354–400V operating range. The motor specification lists a 12.7 kg motor, 150.9A maximum current, 55,609W maximum power, and a 257×123 mm motor envelope. The ESC is listed at 1.9 kg, 212.5×120×68 mm, 160A continuous current and 320A instantaneous current, with IP67 protection. The listed battery recommendation is 96–100S LiPo. Confirm cooling, wiring, propeller clearance, flight-control integration, and the CW/CCW arrangement before use.
For the matched motor, see M90C60 EEE Manned Drone Motor. Compare the related HB90-72X25 无人机电源套装 and review Reachsky Drone Propellers for propeller selection.
HB110 Drone Power Combo FAQs
What voltage range is listed for HB110?
The official technical listing specifies 354–400V operation and recommends a 96–100S LiPo battery.
What is included in the combo?
The listed package combines the M90C60 EEE motor, SineSic Pro 160A FOC ESC and a matched 72×31 or 73×29 propeller option.
Is 110 kgf the maximum thrust?
No. MAD lists 110 kgf as continuous thrust per rotor and reports up to 201 kg maximum thrust in the technical specification.
