MAD PULSAR BL-32 8S 80A 4IN1 ESC

滚动以切换图片

FPV电子设备

MAD PULSAR BL-32 8S 80A 4IN1 ESC

5.0 · 2 评测 有现货

SKU: 0102DT0514

MAD PULSAR BL-32 8S 80A 4-in-1 ESC for matched propulsion or FPV system integration. Confirm configuration and limits before use.

$99.00

引文出自 50 件

需要OEM标识或定制绕线服务吗？
详情

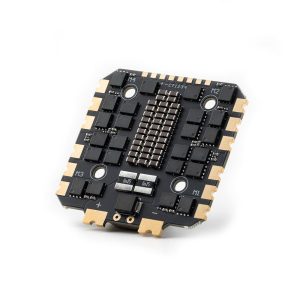

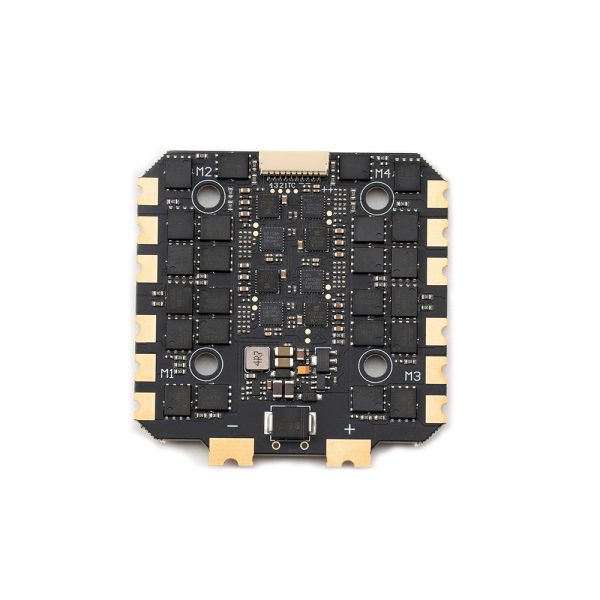

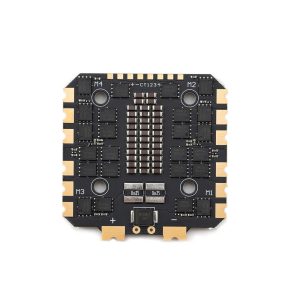

MAD PULSAR BL-32 8S 80A 4-in-1 ESC

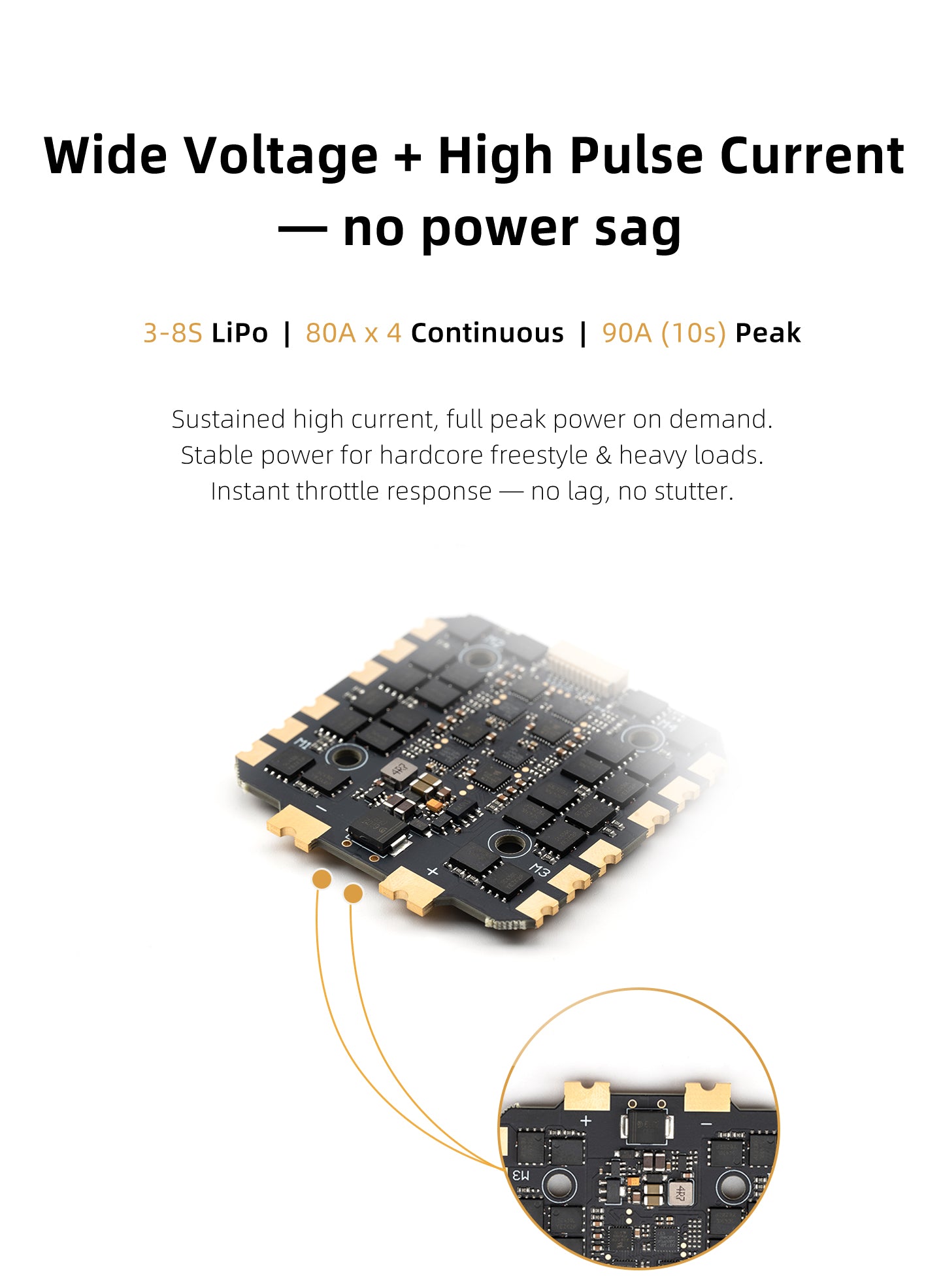

This four-channel ESC is specified for 3–8S LiPo FPV systems, with 80A × 4 continuous current and 90A peak current for 10 seconds.

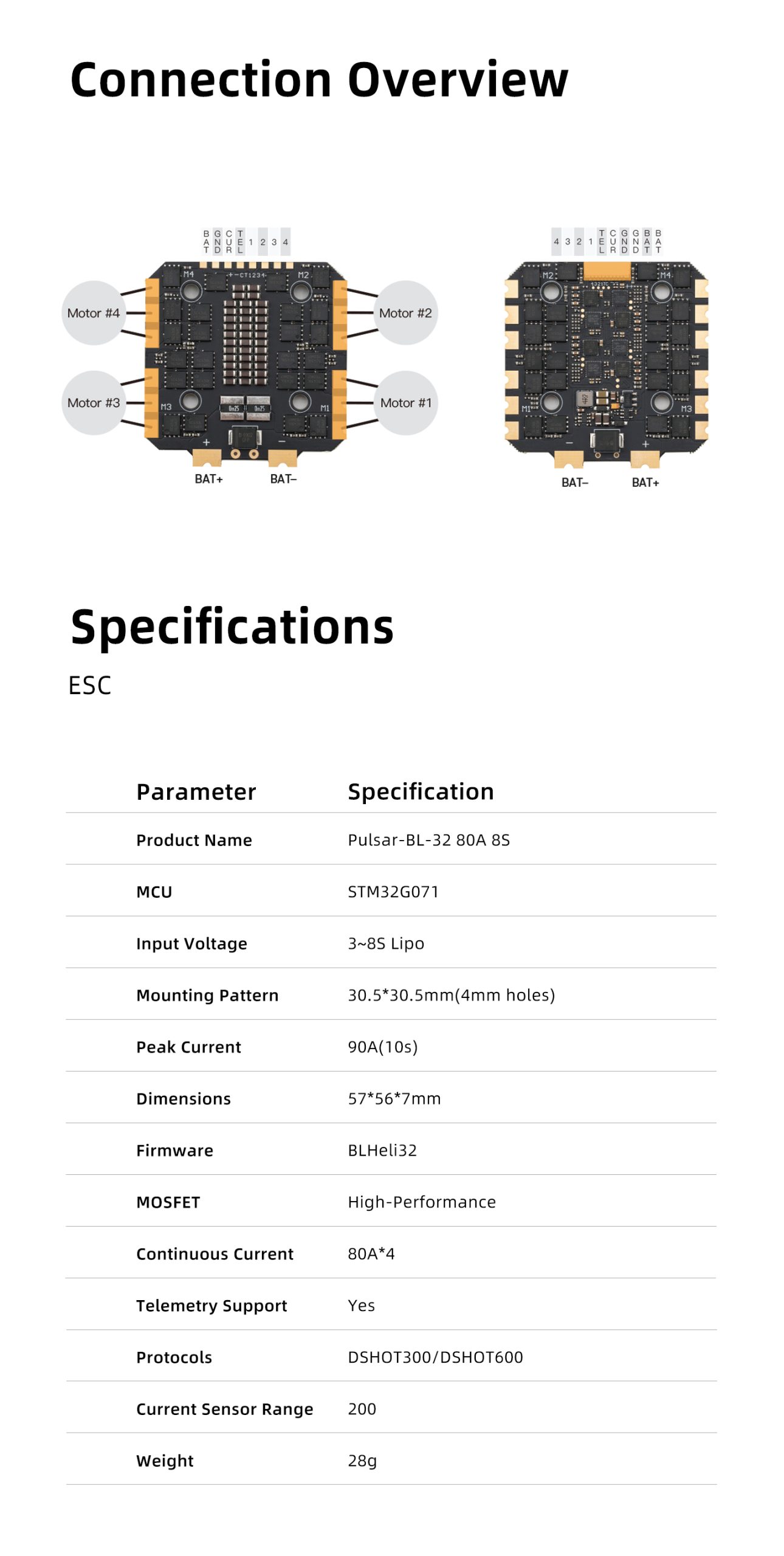

技术规格

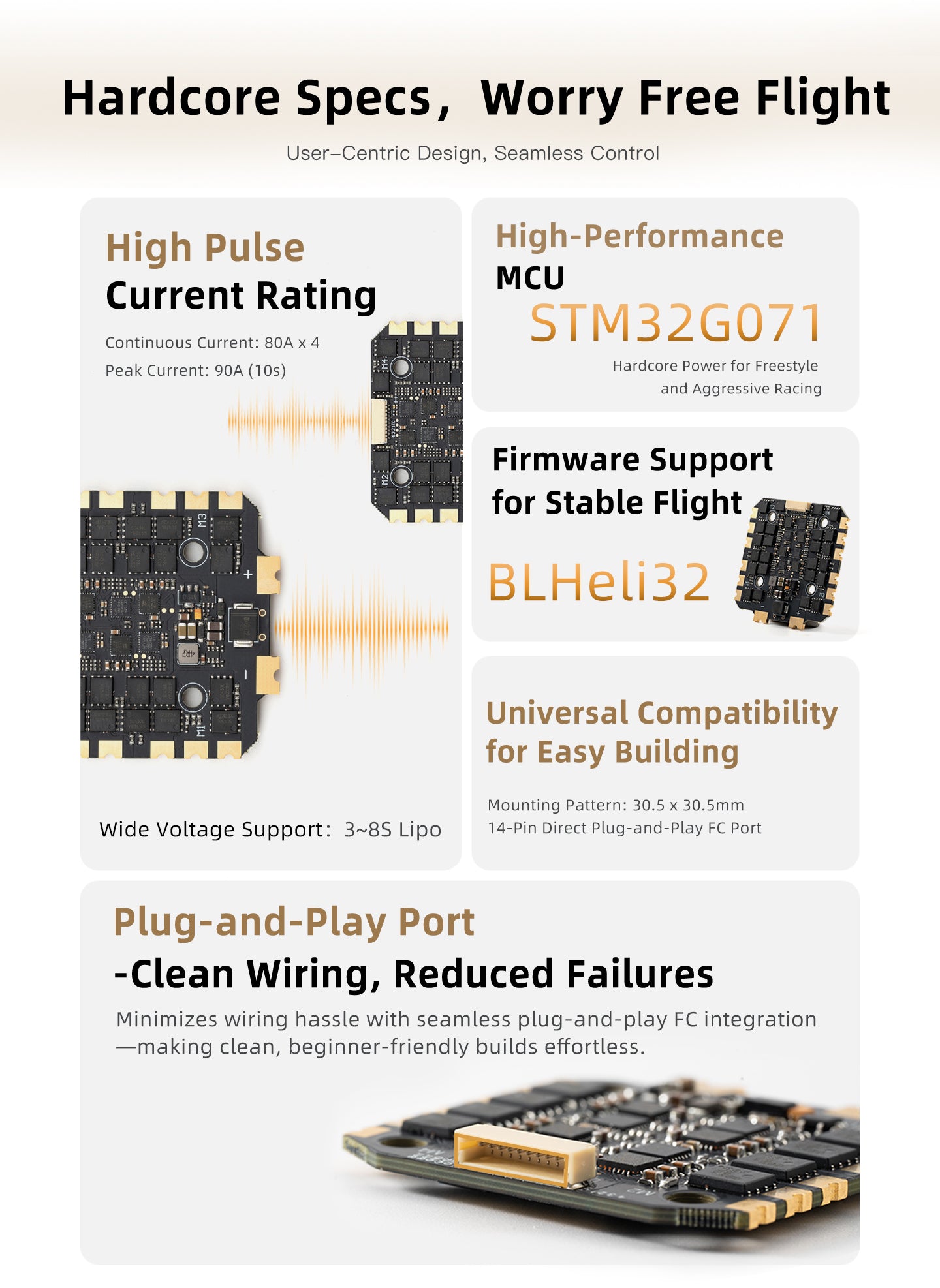

Model Pulsar-BL-32 80A 8S

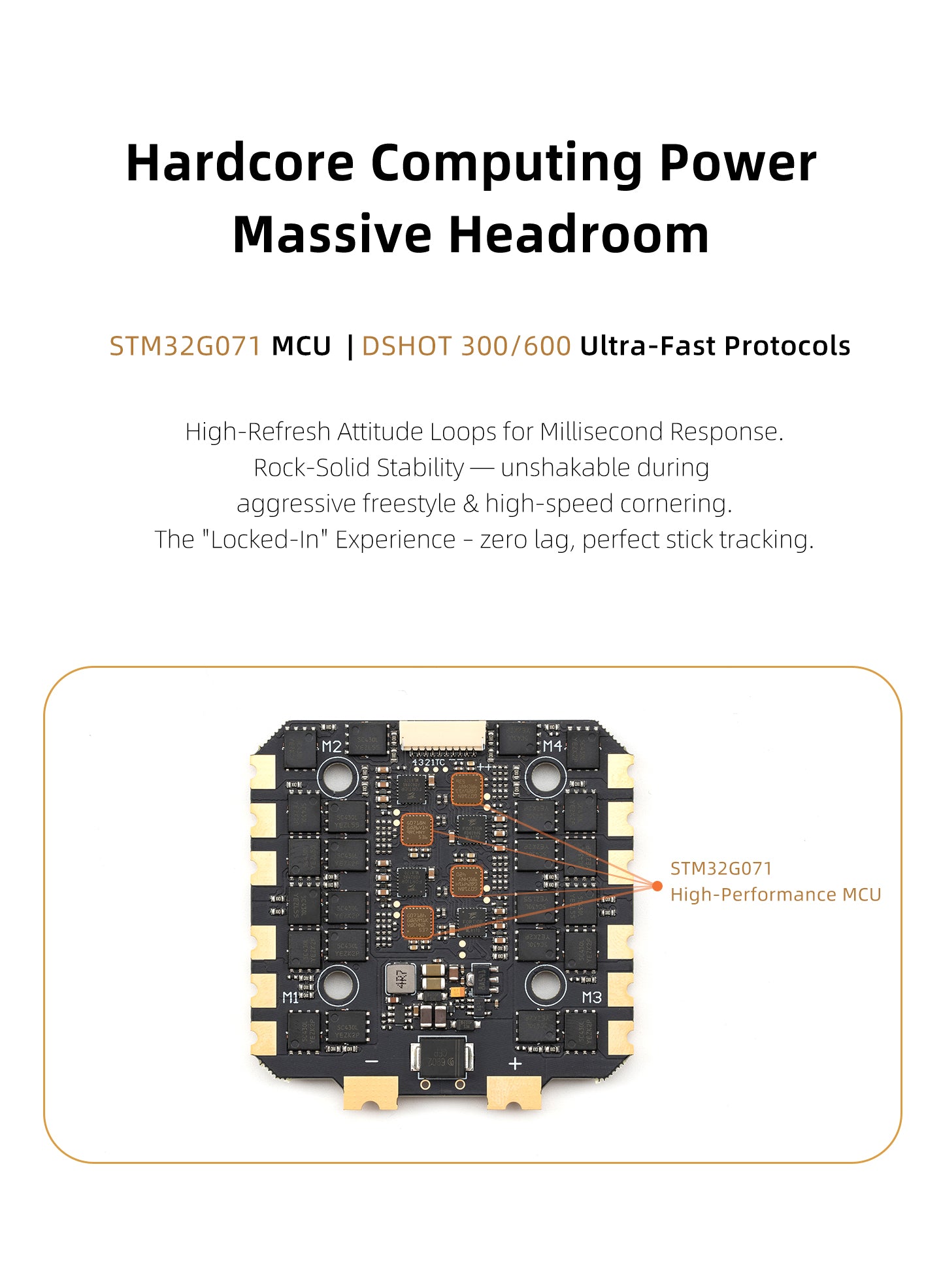

MCU STM32G071
Firmware BLHeli32
MOSFET High-performance MOSFET
Input 3–8S LiPo
Continuous current 80A × 4
Peak current 90A for 10 seconds
Telemetry Yes

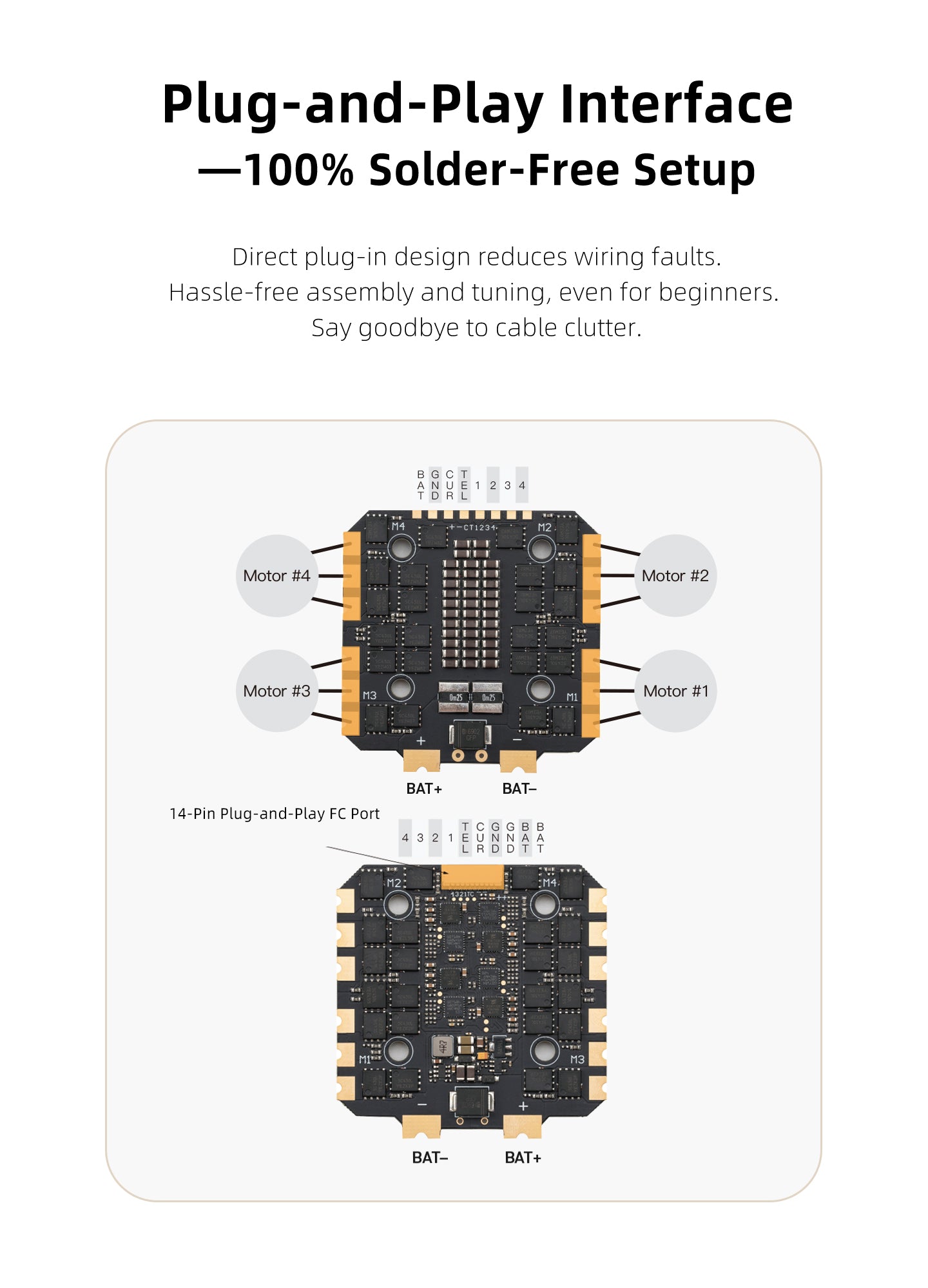

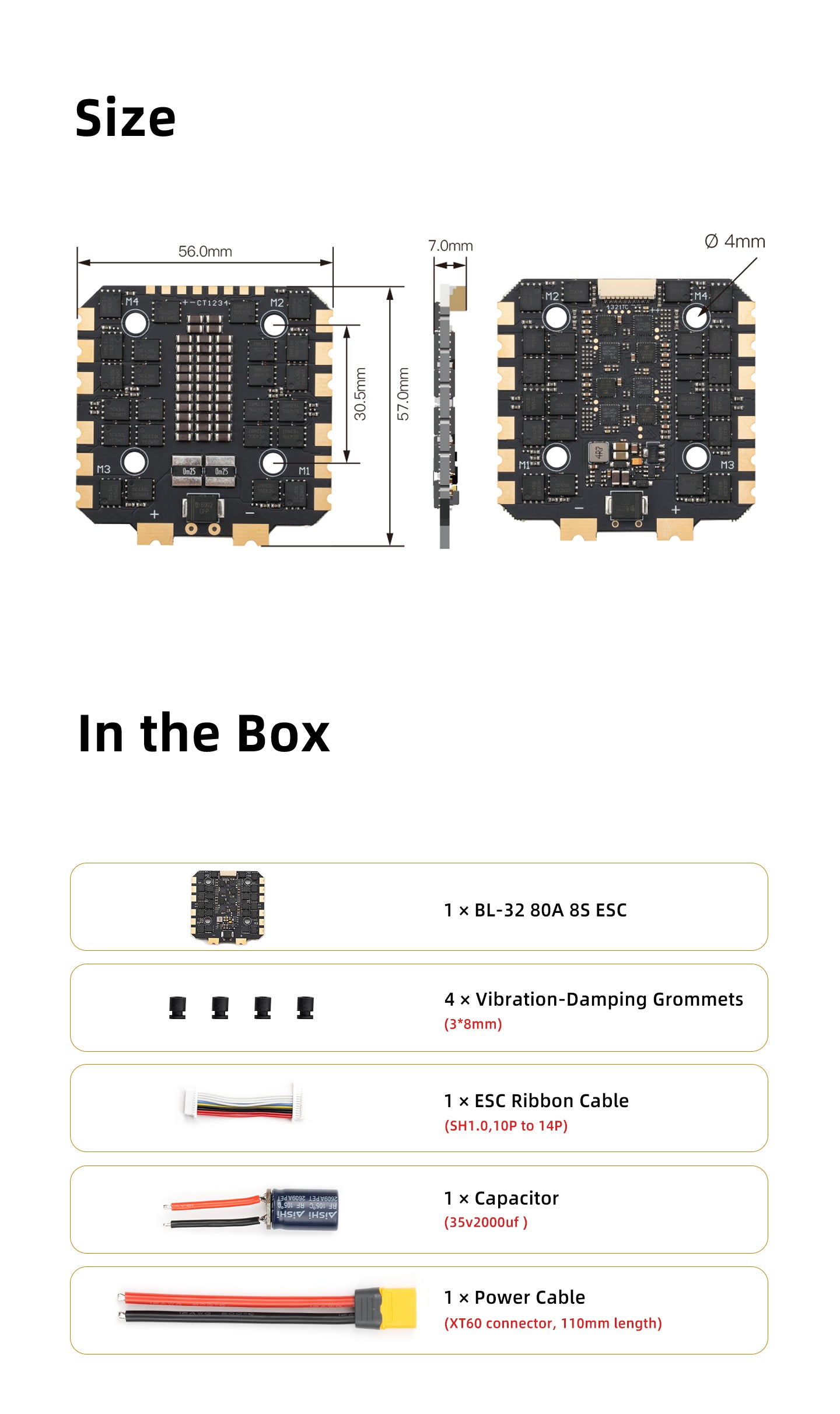

Mounting 30.5 × 30.5mm; 4mm holes
Protocol DSHOT300/600
Current sensor range 200
Dimensions 57 × 56 × 7mm
Weight 28g

Selection Notes

Match the 3–8S battery range, four-channel current rating, mounting holes and signal protocol with the propulsion system. Confirm cooling and wiring before installation.

索取报价

Send battery cell count, motor model, controller, mounting requirement, quantity and configuration for a quotation.

MAD PULSAR BL-32 8S 80A 4-in-1 ESC specificationMAD PULSAR BL-32 8S 80A 4-in-1 ESC detailsMAD PULSAR BL-32 8S 80A 4-in-1 ESC technical dataMAD PULSAR BL-32 8S 80A 4-in-1 ESC installation referenceMAD PULSAR BL-32 8S 80A 4-in-1 ESC product informationMAD PULSAR BL-32 8S 80A 4-in-1 ESC specification pageMAD PULSAR BL-32 8S 80A 4-in-1 ESC referenceMAD PULSAR BL-32 8S 80A 4-in-1 ESC product view

产品常见问题解答
What is the MAD PULSAR BL-32 8S 80A 4IN1 ESC intended for?

本产品适用于无人机和多旋翼飞行器的集成，前提是所列型号和配置与飞行器设计相匹配。下单前请确认电机、电调、电池、安装方式、间隙以及飞行测试要求。

How should I confirm compatibility for the MAD PULSAR BL-32 8S 80A 4IN1 ESC?

请提供飞机或推进系统的型号、所需数量、运行环境及安装详情。请对照制造商公布的工作范围核对已发布的产品信息；切勿仅凭名称进行选择。

Can the MAD PULSAR BL-32 8S 80A 4IN1 ESC be considered for OEM procurement?

当技术规格与目标飞机相符时，可针对OEM或机队项目进行评估。如需报价，请提供机型、数量、应用场景、目的地以及包装或文件要求，以便确认兼容性及生产细节。
