About 8118 EEE V1.0
Poziciigado:
• The MAD 8118 EEE is designed for single-axis loads of 4500–6500g.
• It is optimized for use with 28–30 inch carbon fiber propellers.
• Weighing 620g per motor, it delivers a maximum thrust of up to 14.5kg per axis.
Ĉefaj trajtoj:
✔ Reliable structure with proven performance in various industrial prototypes
✔ Designed to meet demand for both efficiency and enhanced thrust
✔ Compatible with custom applications where compact yet powerful motors are required
Perfekta por:
• Robotic arm prototypes and experimental UAV systems
• Users transitioning to M9C12 100KV or 90KV models for upgraded performance

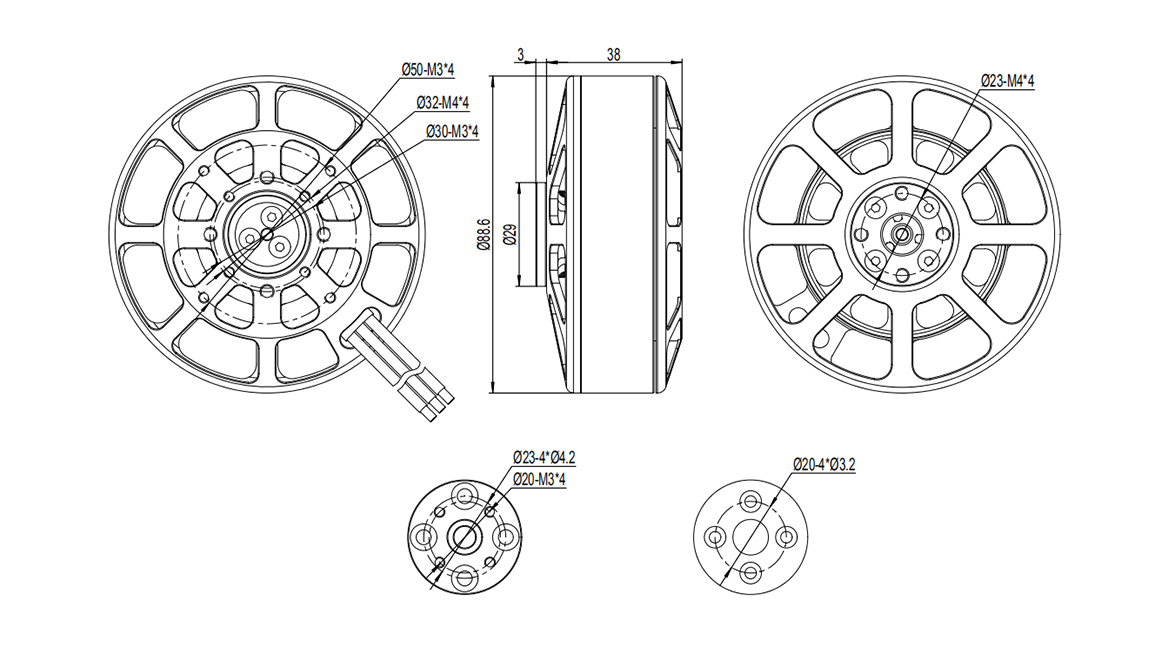

Motordatumoj |
|||
| Motormodelo | MAD 8118 EEE V1.0 | Nombro de polparoj | 20 |
| Statoro | Kontraŭkoroda | Varnisita drato Grado | 180°C |
| Motora grandeco | D:88.6 × 41 mm | Magneta grado | 150°C |
| Protekta grado | Pluvoprotekto | Kabla longo | 150 mm 16# Awg (nigra) silikono |
| Centrifuga varmodissipado | Sendependa | Rotora ekvilibrigo | ≤10 mg |
| Propelera muntadtruoj | D:23 M4×4 | Motora ekvilibro | ≤20 mg |
| Aksdiametro | EN: 15 mm | Motormuntadtruoj | D:30 M3×4, D:32 M4×4, D:50 M3×4 |
| Ŝafto | 6802ZZ*2 | Disrupta testo | kvincent voltoj |

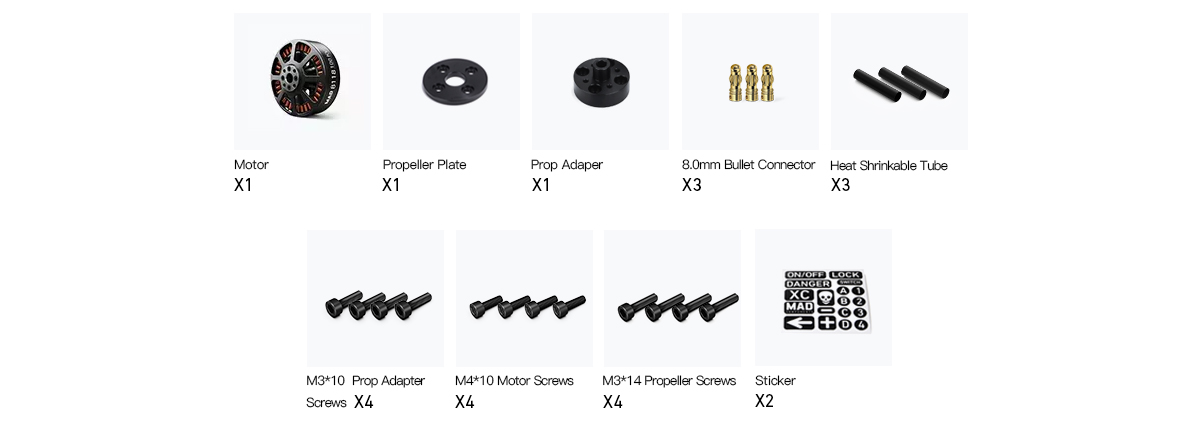

Akcesoraĵoj
