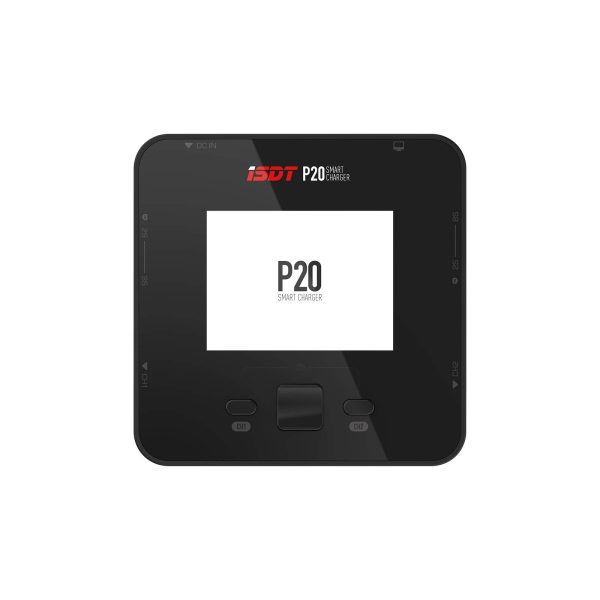

P20 Lipo Charger,DC 500WX2 20A Smart Charger for LiFe, LiIon, LiPo(1-8S)/LiHv(1-70S)/Pb(1-12S); NiMH/Cd(1-16S) Batteries

Scroll to switch images

1-14S

P20 Lipo Charger,DC 500WX2 20A Smart Charger for LiFe, LiIon, LiPo(1-8S)/LiHv(1-70S)/Pb(1-12S); NiMH/Cd(1-16S) Batteries

5.0 · 1 reviews In stock

SKU: 0109DC0267

P20 Lipo Charger,DC 500WX2 20A Smart Charger for LiFe, LiIon, LiPo(1-8S)/LiHv(1-70S)/Pb(1-12S); NiMH/Cd(1-16S) Batteries

$109.00

Custom description
Custom product

Volume quote from 50 pcs

Need OEM marking or custom winding?
Details

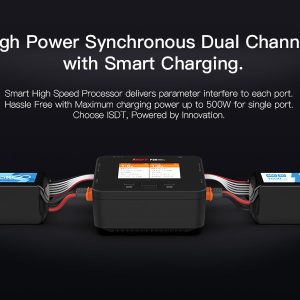

⚡【High Power DC lipo charger】Independent dual channel.synchronous parallel charging.charging current: 20AX2.Max. charging power: 500WX2.800W parallel charging.Input current:35A.advanced crafty cooling air duct for high efficiency heating dissipation.

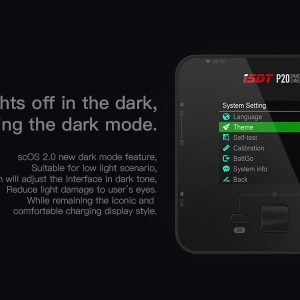

⚡【ISDT P20 Lipo charger with Smart Display】6S lipo charger with full color LCD.touch panel.it will indicate the whole charging process for batteries.with large screen display can show voltage.current.charging time.mode.battery type.internal resistance and battery capacity that charged. easy setup and manual operation modes.

⚡【ISDT Charger & Multiple Function】P20 lipo balance charger passed US safety certification comes with Li-ion and Lipo balancing.fast charging. data storage.cyclic charging. discharging function.After fully charged.it will automatically stop charging.

⚡【Various battery type compatibility】Rc car battery charger. All-in-one control for LiFe. LiIon. LiPo 1-8S.LiHv 1-7S. Pb 1-12S. NiMH/Cd 1-16 rc car /vehicle/plane/drone batteries.automatic battery type identification with intelligent charge algorithm matching.rc lipo charger with balance. (No power cord!)

⚡【Multi-Application】 Aluminium alloy shell with good handfeel and nice apperance.our hobby charger can widely used in rc drone/rc plane/rc ship/rc vehicle.portable devices.remote control car etc.Auto adjustment feature on charging parameters and auto safety shut-off for best charging performance.To help extend battery life with more reasonable.

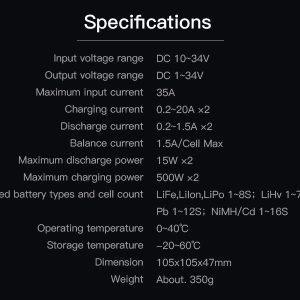

Input voltage DC 10~34V
Output voltage DC 1~34V
Max. input current 35A
Charging current 0.2~20.0A x2
Max. charging power 500W x2
Balance current 1.5A/Cell Max
Discharging current 0.2~1.5A x2
Max. discharging power 15W x2
Abnormal voltage alarm Support
Incorrect cell count setting alarm Support
Supported battery types and cell count LiFe. LiIon. LiPo 1-8S ; LiHv 1-7S ;
Pb 1-12S ; NiMH/Cd 1-16S

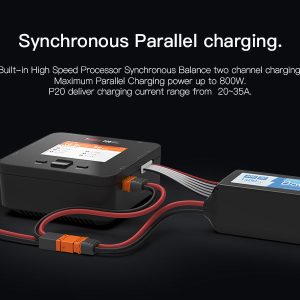

Parallel charging power and current 800W/35A
Parallel discharge power and current 30W/3A
Input anti-reverse function support
Output anti-reverse function support
Input anti-spark function support
Output anti-spark function support
Working temperature 0~40℃
Storage temperature -20℃~60℃
Dimension 105x105x47mm
Weight About 350g



Specifications

Custom description 1000W Dual-Channel Smart Charger
Custom product P20
Weight N/A
Product FAQ
What is the P20 Lipo Charger,DC 500WX2 20A Smart Charger for LiFe, LiIon, LiPo(1-8S)/LiHv(1-70S)/Pb(1-12S); NiMH/Cd(1-16S) Batteries intended for?

This product is intended for UAV and multirotor integration where the listed model and configuration match the aircraft design. Confirm motor, ESC, battery, mounting, clearance and flight-test requirements before ordering.

How should I confirm compatibility for the P20 Lipo Charger,DC 500WX2 20A Smart Charger for LiFe, LiIon, LiPo(1-8S)/LiHv(1-70S)/Pb(1-12S); NiMH/Cd(1-16S) Batteries?

Please provide the aircraft or propulsion-system model, required quantity, operating environment and installation details. Check the published product information against the manufacturer's operating range; do not select from the name alone.

Can the P20 Lipo Charger,DC 500WX2 20A Smart Charger for LiFe, LiIon, LiPo(1-8S)/LiHv(1-70S)/Pb(1-12S); NiMH/Cd(1-16S) Batteries be considered for OEM procurement?

It can be evaluated for an OEM or fleet project when the specification matches the target aircraft. For a quotation, share the model, quantity, application, destination and packaging or documentation requirements so compatibility and production details can be confirmed.

Frequently bought together

Pair this item with the accessories buyers usually evaluate in the same quote.

Total $956.00

4 items selected

Application scenarios

Built for teams that need continuous thrust and clear configuration options before locking a volume SKU.

UAV Propulsion Integration

UAV Propulsion Integration

Conceptual application for integrating the P20 Lipo Charger,DC 500WX2 20A Smart Charger for LiFe, LiIon, LiPo(1-8S)/LiHv(1-70S)/Pb(1-12S); NiMH/Cd(1-16S) Batteries into a compatible UAV propulsion system. Validate installation, loading, clearance and operating limits on the actual aircraft before deployment.

Professional UAV Platforms

Conceptual application for professional UAV development using the P20 Lipo Charger,DC 500WX2 20A Smart Charger for LiFe, LiIon, LiPo(1-8S)/LiHv(1-70S)/Pb(1-12S); NiMH/Cd(1-16S) Batteries. Confirm system interfaces, payload requirements and environmental conditions through the integrator's design review and flight testing.

OEM and Fleet Evaluation

Conceptual application for an OEM or fleet evaluation of the P20 Lipo Charger,DC 500WX2 20A Smart Charger for LiFe, LiIon, LiPo(1-8S)/LiHv(1-70S)/Pb(1-12S); NiMH/Cd(1-16S) Batteries. Final selection should follow aircraft-specific compatibility checks, procurement requirements and documented test procedures.

View all 1-14S

About REACHSKY

REACHSKY is a professional supplier of drone spare parts based in Changsha, China, with 12 years of industry experience. Our product range covers brushless motors, ESCs, propellers, drone batteries and related accessories. We have our own R&D team and factory for self-developed items, certified by ISO9001. Besides, we are the authorized exclusive distributor for several well-known manufacturers for North America, South America and Europe markets. Read more about REACHSKY.

Top reviews from worldwide buyers

Amy C.
Charges as expected

Reviewed in United States on April 27, 2022

Verified Purchase

Balance charged our usual packs without fuss. Display is readable outdoors with a bit of shade.
