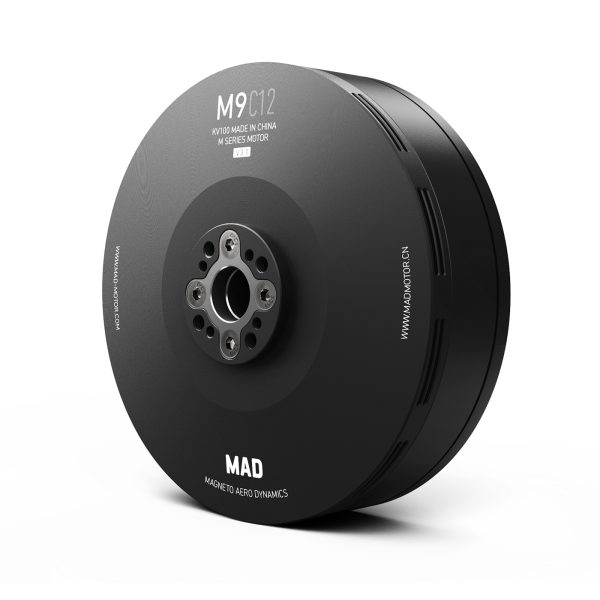

About M9C12 IPE V3.1
Positioning:
• Designed for 4–5 kg single-axis payloads with 28–32 inch carbon fiber propellers
• Engineered for low energy consumption and high efficiency through advanced magnetic simulation
• Ideal for professional UAV applications requiring high thrust and structural strength
Key Features:
✔ Maximum thrust up to 13.8 kg per axis
✔ Motor weight: 463g

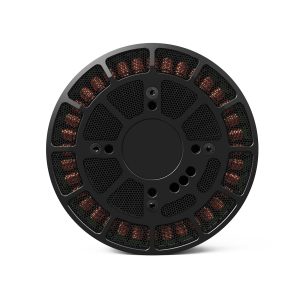

✔ Unique 36N42P motor core design for smooth, stable power delivery
✔ Constructed with 7075-T6 aviation-grade aluminum for durability
✔ Reinforced with a precision steel shaft for long-term reliability
Perfect for:
• Heavy-lift drones using large-diameter props
• UAVs needing efficient, high-thrust motors
| 电机数据 | |||
|---|---|---|---|
| 电机型号 | MAD M9C12 IPE V3.1 | 极对数 | 21 |
| 定子 | 防腐蚀 | 漆包线 规格 | 180°C |

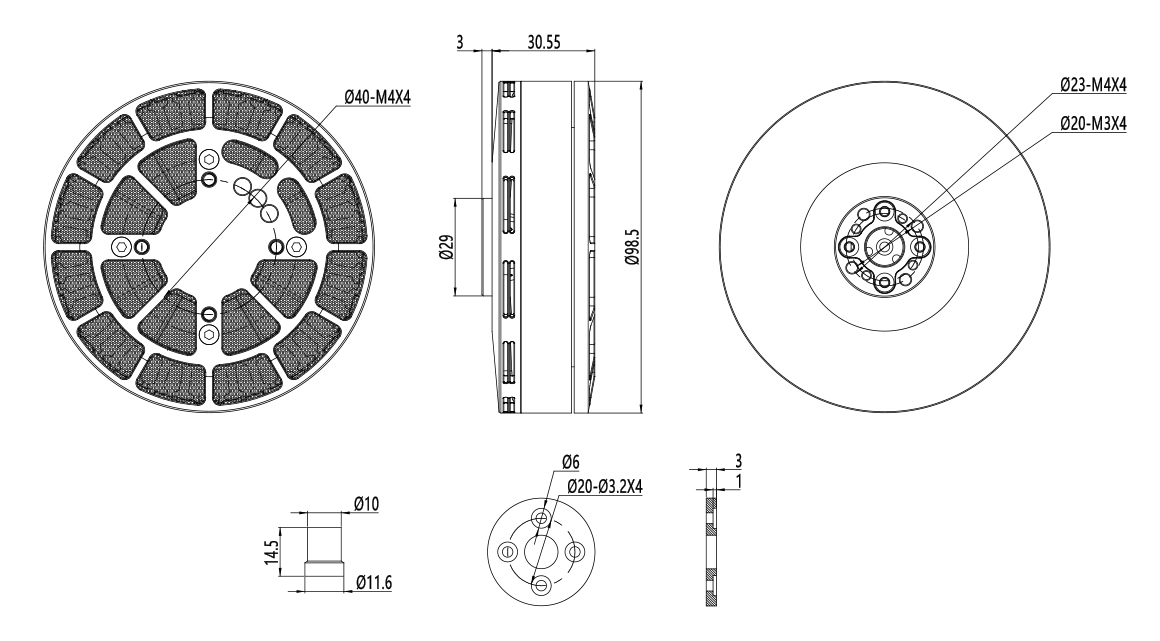

| 电机尺寸 | D:98.5 × 33.55 mm | 磁力等级 | 150°C |
| 防护等级 | IP45 | 电缆长度 | 50mm 16# Awg(Black Yellow Red) silicone |
| 离心散热 | 是 | 转子平衡 | ≤5 毫克 |
| 螺旋桨安装孔 | D:20 M3×4, D:23 M4×4 | 运动平衡 | ≤10 毫克 |
| 轴直径 | IN: 15 mm | 电机安装孔 | D:40 M4×4 |
| 轴承 | EZ0 6902ZZ*2 | 干扰性测试 | 500 V |
