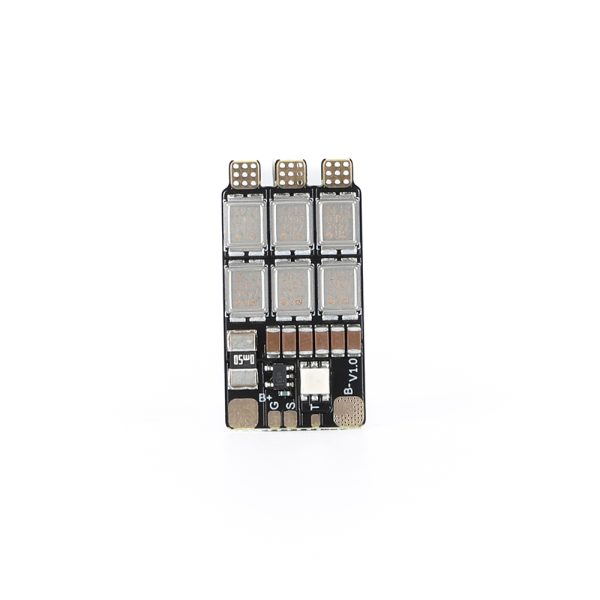

About AM32 Lightning 70A 3-6S ESC
The AM32 Lightning 70A ESC is a compact 3-6S LiPo controller for documented UAV and FPV power systems. Confirm the wiring, cooling and current demand against the selected build before ordering.
Key Features
- 70A continuous current rating.
- 90A maximum current at 5S.
- AT32F421K8U7 processor.
- DShot 150-600 drive signal support.
- Current sensing and telemetry passback support.
- No BEC.
Technical Specifications
| Product model | AM32 Lightning 70A 3-6S ESC |
|---|---|
| Size | 32 × 16.5mm |
| Weight | 4.2g |
| Continuous current | 70A |
| Maximum current | 90A at 5S |
| Input voltage | 3-6S LiPo |
| Processor | AT32F421K8U7 |
| BEC | No |
| Drive signal | DShot 150-600 |
| Current sensor | Supported |
| Telemetry passback | Supported |
| Firmware | AM32 (AM32_AT32DEV_F421) |
Compatibility Guide
Confirm the 3-6S battery, continuous current requirement, wiring, flight-controller signal and cooling clearance. The listed unit has no BEC, so verify the system’s separate power arrangement.
FAQ
What battery range is listed?
The product is listed for 3-6S LiPo input.
Does it include a BEC?
The official specification lists no BEC.
Which signal protocols are listed?
DShot 150-600 support is listed; confirm the flight-controller configuration before procurement.
Request a Quote
Send the battery cell count, current requirement, controller interface and quantity for a matched quotation.
