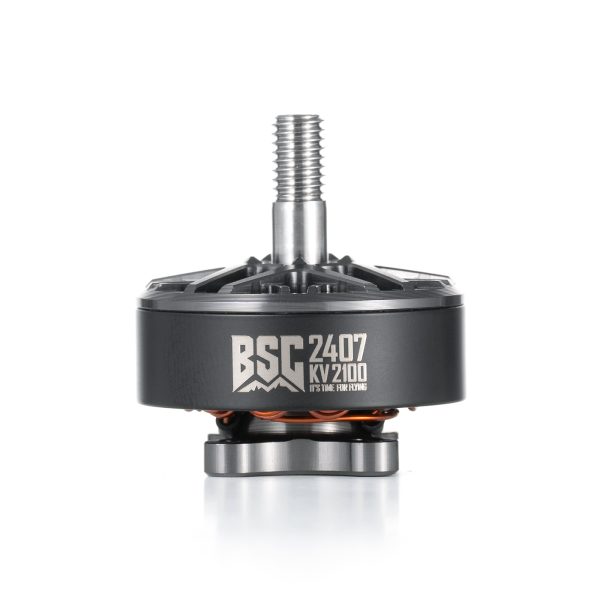

BSC 2407 FPV drone motor

Scroll to switch images

BSC Series - Basic

BSC 2407 FPV drone motor

5.0 · 2 reviews In stock

SKU: 0101DJ2820

BSC 2407 FPV Drone Motor is designed for pilots who need reliable power, smooth control, and excellent efficiency for 5-inch FPV builds. Featuring a large 2407 stator size, high-quality components, and a balanced 12N14P electromagnetic design, it delivers strong torque, responsive throttle control, and stable performance for freestyle and racing applications.

$10.99

KV OPTION

Volume quote from 50 pcs

Need OEM marking or custom winding?
Details

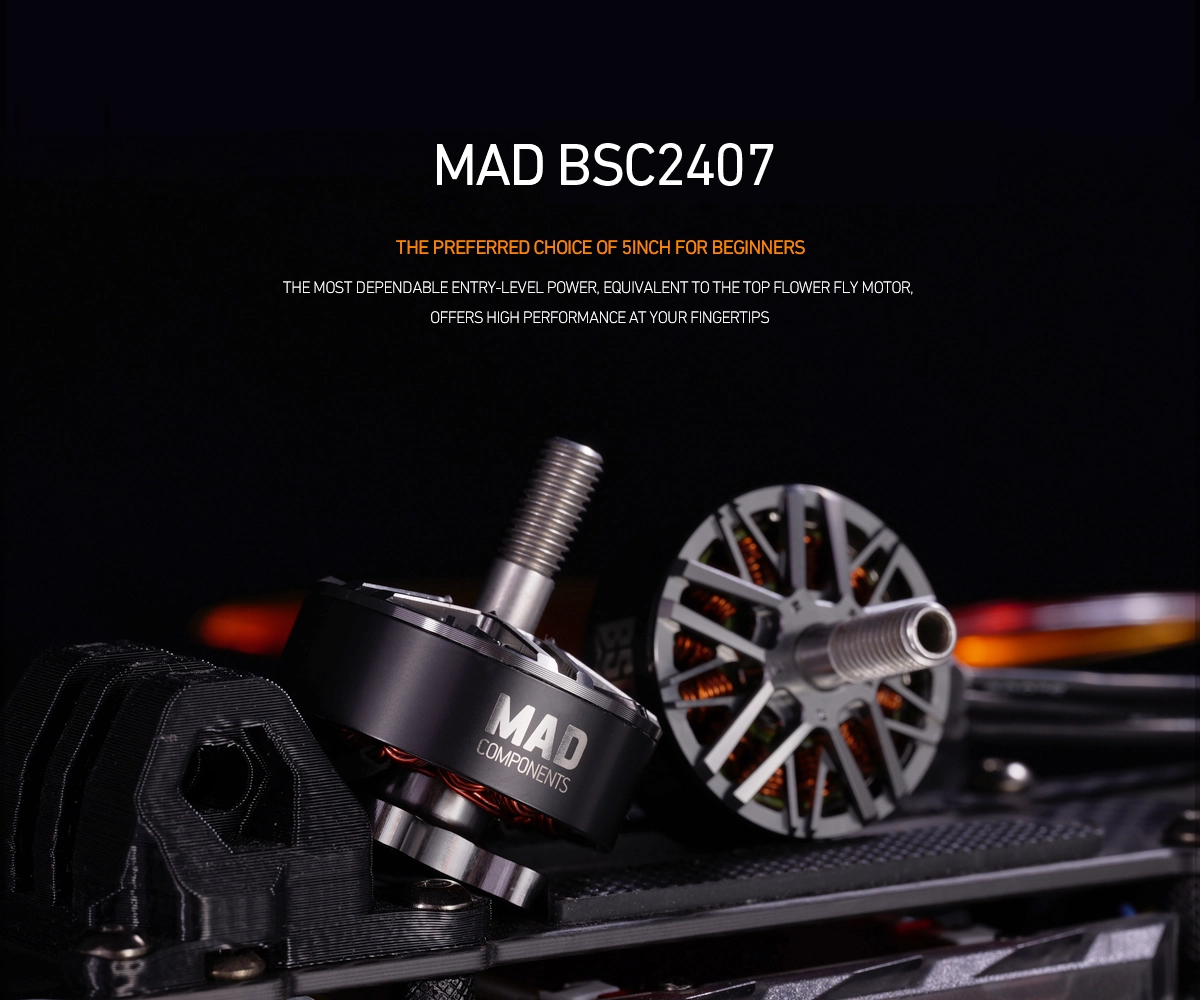

MAD BSC 2407 V1.0 FPV Motor

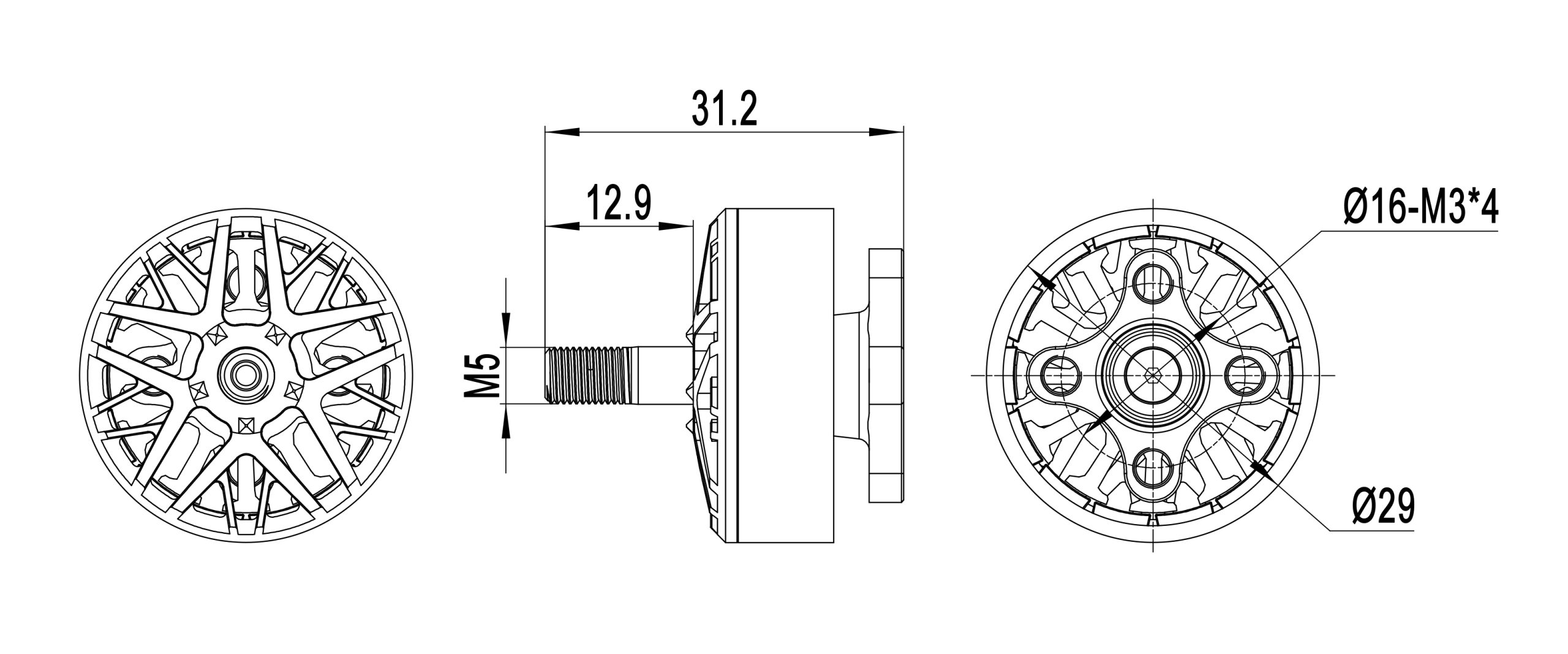

The BSC 2407 uses a 12N14P design with a 29 × 31.2mm body and 4mm shaft for 5-inch FPV propulsion selection.

Technical Specifications

Model MAD BSC 2407 V1.0
Slots / poles 12N14P
Motor size D:29 × 31.2mm
Rotor balance ≤5mg
Propeller mounting M5 nut
Motor mounting D:16 M3×4
Shaft diameter 4mm
Cable 150mm, 20 AWG black silicone wire

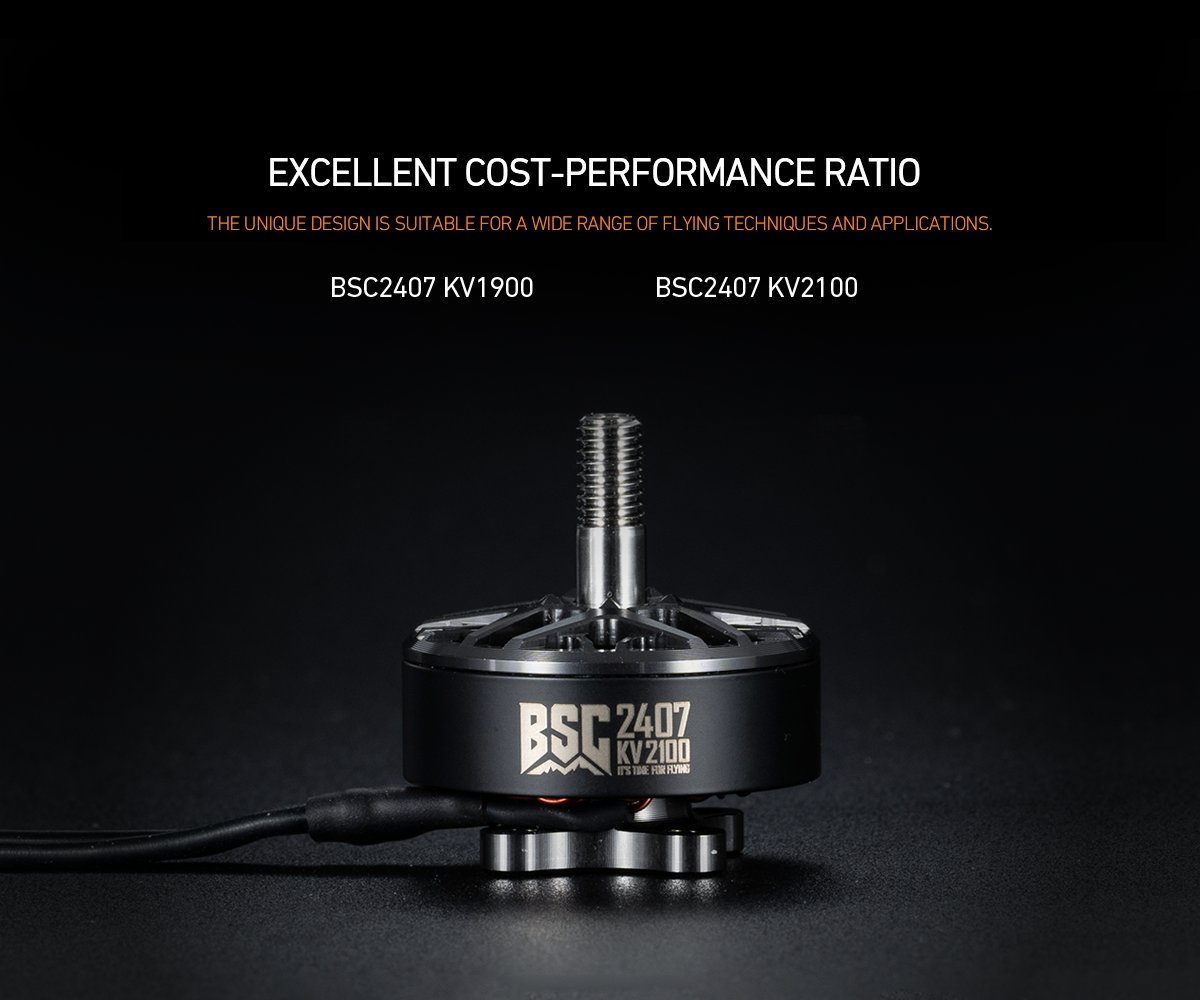

KV options 1900KV / 2100KV
Phase resistance 51mΩ / 41mΩ
No-load current 1.5A / 10V; 1.8A / 10V
Maximum thrust 1.9kg / 2.1kg
Maximum current 45.6A / 56.9A
Rated output power 215.7W / 272W
Motor weight with cable 38g
Boxed weight 46g

Request a Quote

Send the selected KV, battery, propeller, ESC, frame and quantity for a quotation.

Specifications

KV OPTION 1900KV / 2100KV
Weight N/A
Product FAQ
What is the BSC 2407 FPV drone motor intended for?

This product is intended for UAV and multirotor integration where the listed model and configuration match the aircraft design. Confirm motor, ESC, battery, mounting, clearance and flight-test requirements before ordering.

How should I confirm compatibility for the BSC 2407 FPV drone motor?

Please provide the aircraft or propulsion-system model, required quantity, operating environment and installation details. Check the published product information against the manufacturer's operating range; do not select from the name alone.

Can the BSC 2407 FPV drone motor be considered for OEM procurement?

It can be evaluated for an OEM or fleet project when the specification matches the target aircraft. For a quotation, share the model, quantity, application, destination and packaging or documentation requirements so compatibility and production details can be confirmed.

Frequently bought together

Pair this item with the accessories buyers usually evaluate in the same quote.

Total $270.89

4 items selected

Application scenarios

Built for teams that need continuous thrust and clear configuration options before locking a volume SKU.

UAV Propulsion Integration

UAV Propulsion Integration

Conceptual application for integrating the BSC 2407 FPV drone motor into a compatible UAV propulsion system. Validate installation, loading, clearance and operating limits on the actual aircraft before deployment.

Professional UAV Platforms

Conceptual application for professional UAV development using the BSC 2407 FPV drone motor. Confirm system interfaces, payload requirements and environmental conditions through the integrator's design review and flight testing.

OEM and Fleet Evaluation

Conceptual application for an OEM or fleet evaluation of the BSC 2407 FPV drone motor. Final selection should follow aircraft-specific compatibility checks, procurement requirements and documented test procedures.
