1005 IPE Drone Motor

Scroll to switch images

10XX Series

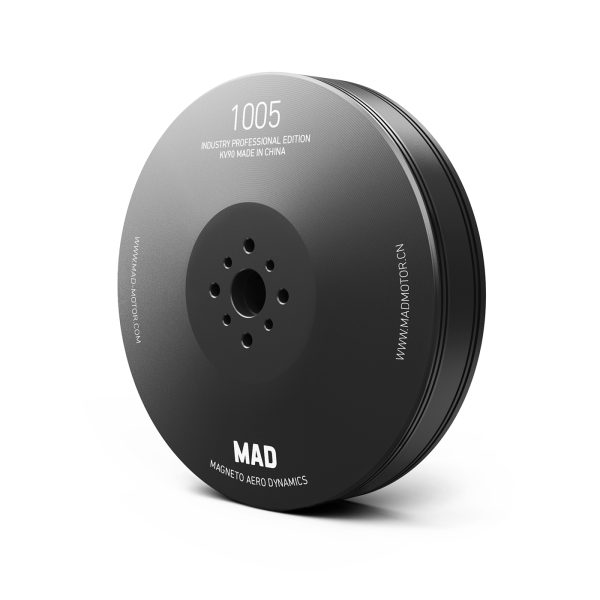

1005 IPE Drone Motor

5.0 · 1 reviews In stock

SKU: 0101DJ2245

Over 1000 hours of service time. 12g/w efficiency at 3kg thrust with 30-32inch propeller. Imported aerospace-grade aluminum. Motor weight: only 279g. Remended ESC: FOC 60A 12S ，AMPX 40A(5-14)s.

$175.00

KV Option

Volume quote from 50 pcs

Need OEM marking or custom winding?
Details

1005 IPE Drone Motor

The MAD 1005 IPE is listed for 3.5–4.5 kg single-axis payloads with 32-inch carbon-fiber propellers and up to 10.1 kg thrust per axis.

Technical Specifications

Payload 3.5–4.5 kg per axis
Propeller 32 inch carbon fiber
Maximum thrust 10.1 kg per axis
Efficiency reference 12 g/W at 3 kg thrust
Service-life reference Over 1,000 hours
Recommended ESC FOC 60A 12S or AMPX 40A 5–14S

Selection and Compatibility

Confirm the 32-inch propeller, battery, ESC and payload configuration against the aircraft frame before ordering.

FAQ

Which ESCs are listed? The product data lists FOC 60A 12S and AMPX 40A 5–14S; confirm the final system combination.

Request a Quote

Provide propeller, battery, ESC, payload and quantity for a matched quotation.

Specifications

KV Option 90KV
Weight N/A
Product FAQ
What is the 1005 IPE Drone Motor intended for?

This product is intended for UAV and multirotor integration where the listed model and configuration match the aircraft design. Confirm motor, ESC, battery, mounting, clearance and flight-test requirements before ordering.

How should I confirm compatibility for the 1005 IPE Drone Motor?

Please provide the aircraft or propulsion-system model, required quantity, operating environment and installation details. Check the published product information against the manufacturer's operating range; do not select from the name alone.

Can the 1005 IPE Drone Motor be considered for OEM procurement?

It can be evaluated for an OEM or fleet project when the specification matches the target aircraft. For a quotation, share the model, quantity, application, destination and packaging or documentation requirements so compatibility and production details can be confirmed.
