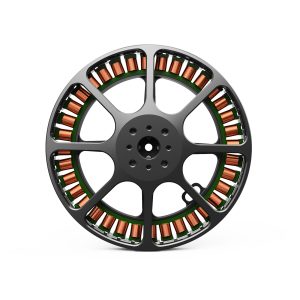

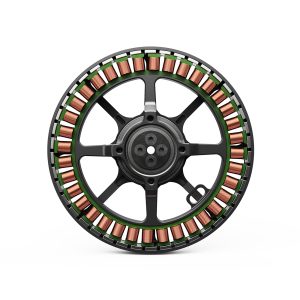

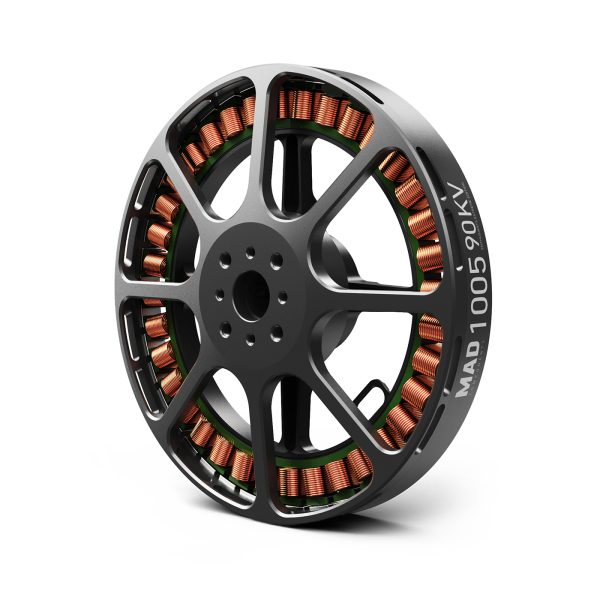

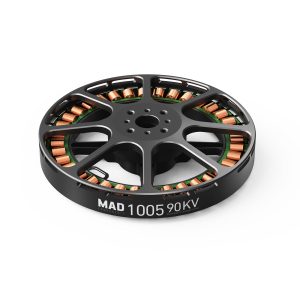

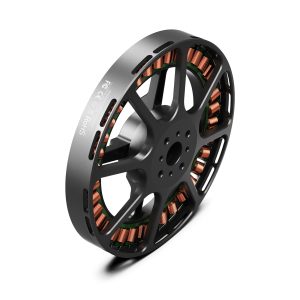

1005 EEE Drone Motor Overview
The MAD1005 EEE is a large-format UAV motor for single-axis payloads of 3.5–4.5 kg. The published configuration uses 30–32 inch carbon-fiber propellers and records up to 10.1 kg maximum thrust.
Key Features
- 279 g motor weight and imported aerospace-grade aluminum construction.
- 12 g/W efficiency at 3 kg thrust with 30–32 inch propellers.
- Over 1,000 hours of stated service life.
- Independent centrifugal heat dissipation and rotor balance of ≤5 mg.
Technical Specifications
| Motor model | MAD1005 EEE |
|---|---|

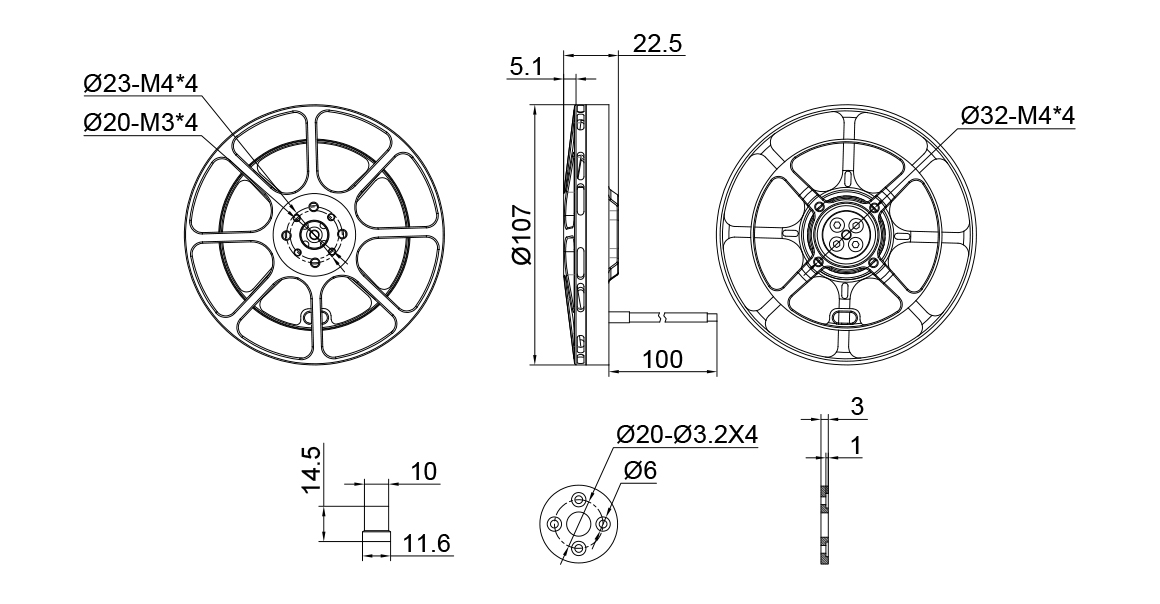

| Motor size | D107 × 22.5 mm |
| Maximum thrust | Up to 10.1 kg |
| Motor weight | 279 g |
| Recommended propeller | 30–32 inch carbon-fiber propeller |
| Propeller mounting | D20 M3×4; D23 M4×4 |
| Motor mounting | D32 M4×4 |
| Shaft diameter | 17 mm |
| Recommended ESC | FOC 60A 12S or AMPX 40A 5–14S, as listed for this product |
Application and Compatibility
The 30–32 inch propeller range and stated payload configuration make this motor relevant to long-endurance and payload-carrying UAV builds. Confirm the complete propeller, battery and ESC configuration before selection.
FAQ
Which propeller size is listed?
The published configuration lists 30–32 inch propellers and 32 inch carbon-fiber propellers for the payload positioning.
Which ESC options are listed?
The product data lists FOC 60A 12S and AMPX 40A 5–14S. Confirm the final electrical configuration with the motor and battery supplier.
Request a Quote
For a UAV propulsion quotation, send the target propeller, battery voltage, ESC choice and required quantity so compatibility can be checked.
