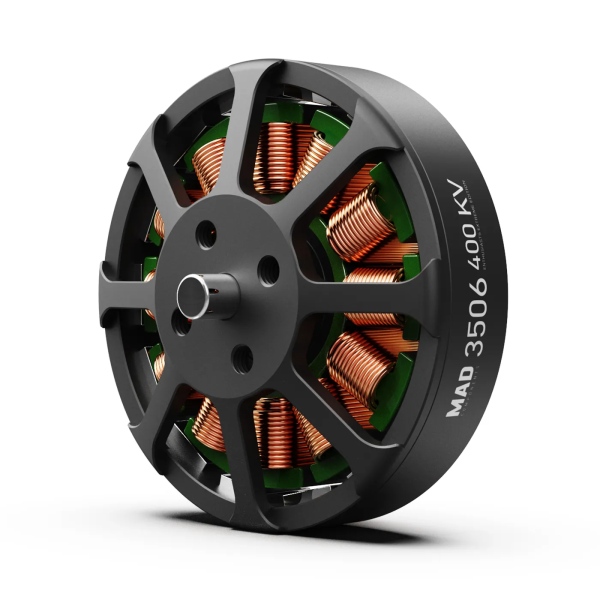

3506 EEE Drone Motor Overview
The MAD 3506 EEE V3.0 is listed with 400KV, 460KV and 650KV options for UAV propulsion. The published design targets single-axis payloads of 320–720 g and 11–14 inch carbon-fiber propellers.
Key Features
- Published maximum thrust: 1,600 g per motor.
- Published motor weight: 72.3 g.
- Independent centrifugal heat dissipation and rotor balance of ≤5 mg.
- 6061-class silicon-steel stator construction with temperature-resistant coating stated in the product data.
Technical Specifications
| Motor model | MAD 3506 EEE V3.0 |
|---|---|
| KV options | 400KV / 460KV / 650KV |
| Motor size | D42.5 × 23.8 mm |
| Maximum thrust | 1,600 g per motor |
| Motor weight | 72.3 g |
| Recommended propeller | 11–14 inch carbon-fiber propeller |
| Propeller mounting | D12 M3×4 |

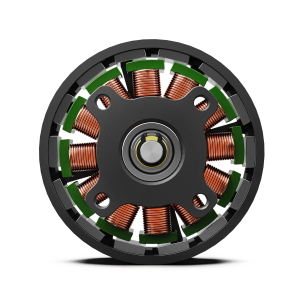

| Motor mounting | D25 M3×4 |
| Shaft diameter | 4 mm |
Application and Compatibility
The published 320–720 g single-axis payload range and 11–14 inch propeller guidance support payload UAV, aerial imaging and industrial multirotor design studies. Select the KV option only after checking battery, propeller and ESC compatibility.
FAQ
How do the KV options differ?
The product is listed in 400KV, 460KV and 650KV versions. The appropriate option depends on the aircraft voltage, propeller and target operating point; confirm the complete combination before ordering.
What mounting pattern is listed?
The motor mounting pattern is D25 M3×4 and the propeller mounting pattern is D12 M3×4.
Request a Quote
For a quotation, provide the selected KV, battery configuration, propeller size, ESC plan and required quantity.
