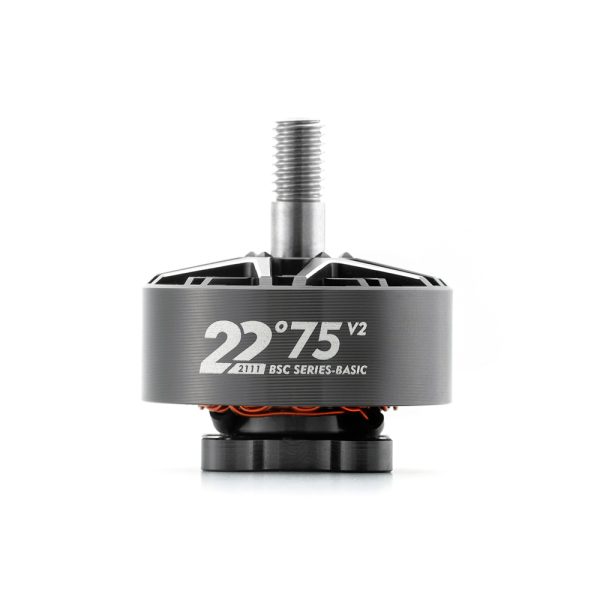

BSC 2207.5 V2.0 FPV Motor
The BSC 2207.5 V2.0 FPV Motor is an upgraded BSC-series motor with a one-piece solid construction. The product information lists this motor for 6S LiPo FPV builds using 5-inch tri-blade propellers and 45A–60A 4-in-1 ESCs.

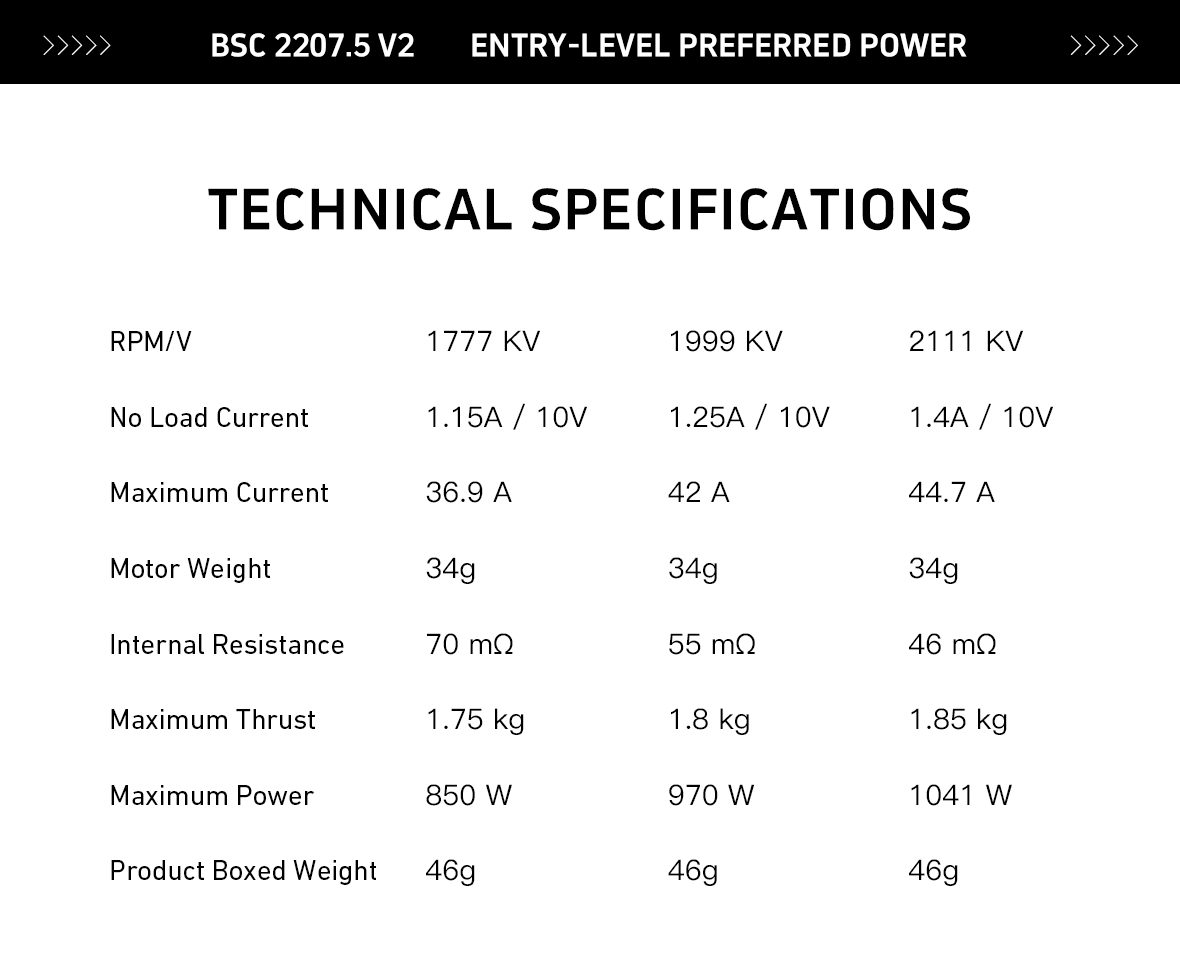

Technical Specifications
Model: BSC 2207.5 V2.0
Stator size: 2207.5
Battery: 6S LiPo
Recommended propeller: 5-inch tri-blade
Recommended ESC range: 45A–60A 4-in-1 ESC
Construction: One-piece solid construction
KV option: Select the required KV version on the product page
Selection and Compatibility
Before ordering, confirm the following items:
– Required KV version
– Battery voltage
– Propeller diameter, pitch and blade count
– ESC current rating
– Motor mounting pattern
– Available clearance on the frame
The motor should be evaluated together with the propeller, ESC, battery and aircraft frame. Do not select the motor based on KV alone.
Product Difference
The V2.0 version uses a one-piece solid construction. This is the main product difference stated on the current product information. Compare the construction, KV option and complete propulsion requirements before choosing between this version and other BSC 2207.5 models.
Quotation Information
For a compatibility check or quotation, please provide:
– Aircraft or frame model
– Battery voltage
– Required KV
– Propeller specification
– ESC model or current rating
– Required quantity
– Target application
