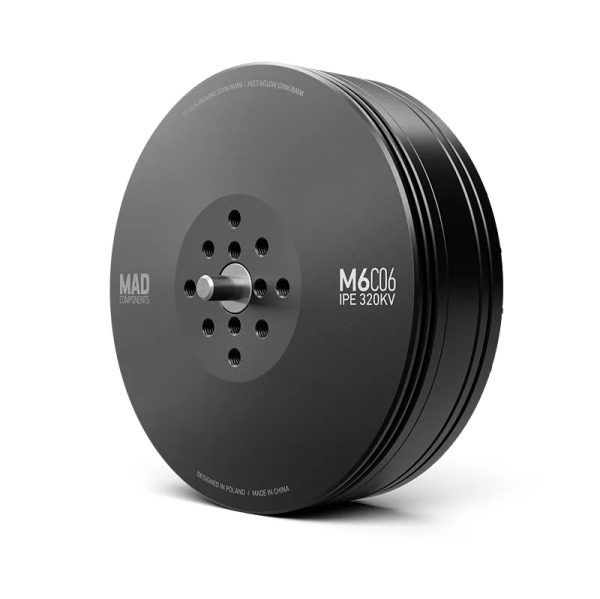

Antimatter M6C06 IPE V3 Drone Motor

Scroll to switch images

AN M6 Series

Antimatter M6C06 IPE V3 Drone Motor

5.0 · 1 reviews In stock

SKU: 0101DJ0765

M6C06 IPE is designed to carry payload of 1.4-2.5kg, supports 6S, 8S, 12S voltage. INDUSTRY PROFESSIONAL EDITION Upgrade M6C06 IPE V3 is improved to get higher reliability and stability for long range flight. It also maintains the excellent properties and characteristics of the previous generation and enhances motor safety and service life that fully meets the demanding requirements of va

$115.00

KV Option

Volume quote from 50 pcs

Need OEM marking or custom winding?
Details

Antimatter M6C06 IPE V3 Motor

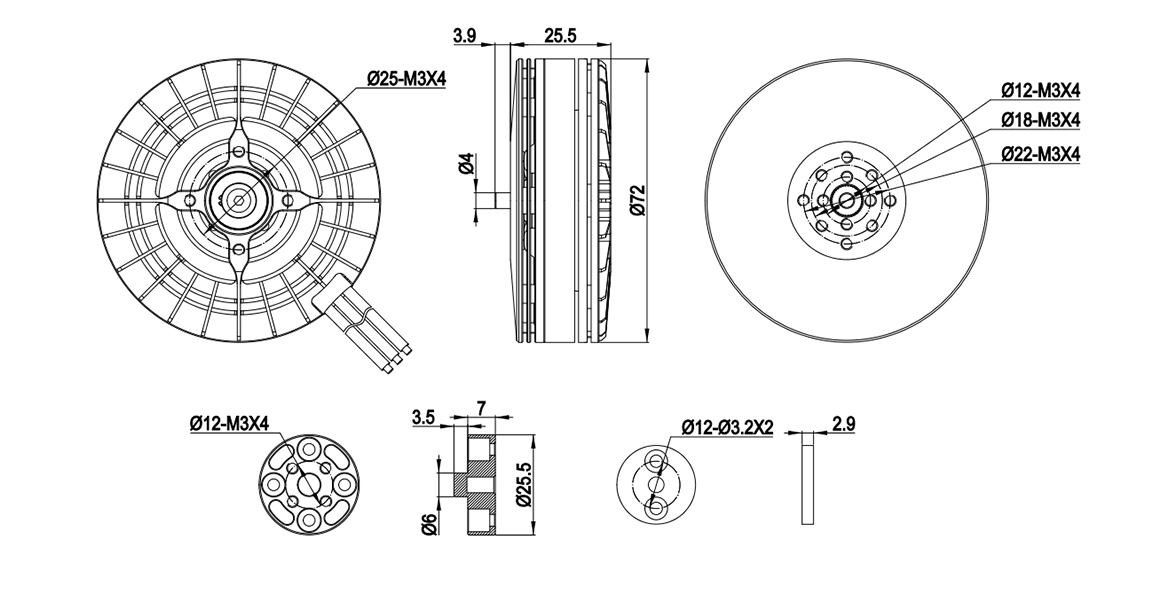

The MAD M6C06 IPE V3.0 is listed with IP45 protection, a D72 × 29.4 mm body and 6 mm shaft for UAV propulsion.

Technical Specifications

Motor model MAD M6C06 IPE V3.0
Motor size D72 × 29.4 mm
Protection IP45
Shaft 6 mm
Mounting D25 M3×4 motor; D12, D18 and D22 M3×4 propeller

Selection and Compatibility

Check the D72 × 29.4 mm body, 6 mm shaft and IP45 rating against the aircraft frame, propeller, battery and ESC before ordering.

FAQ

What propeller mounting options are listed? The data lists D12 M3×4, D18 M3×4 and D22 M3×4.

Request a Quote

Provide KV, battery, propeller, ESC and quantity for compatibility review.

Specifications

KV Option 140KV / 220KV / 320KV
Weight N/A
Product FAQ
What is the Antimatter M6C06 IPE V3 Drone Motor intended for?

This product is intended for UAV and multirotor integration where the listed model and configuration match the aircraft design. Confirm motor, ESC, battery, mounting, clearance and flight-test requirements before ordering.

How should I confirm compatibility for the Antimatter M6C06 IPE V3 Drone Motor?

Please provide the aircraft or propulsion-system model, required quantity, operating environment and installation details. Check the published product information against the manufacturer's operating range; do not select from the name alone.

Can the Antimatter M6C06 IPE V3 Drone Motor be considered for OEM procurement?

It can be evaluated for an OEM or fleet project when the specification matches the target aircraft. For a quotation, share the model, quantity, application, destination and packaging or documentation requirements so compatibility and production details can be confirmed.
