CM 4320 SWIFT FPV Drone motor

Scroll to switch images

CM Series - Cinematic

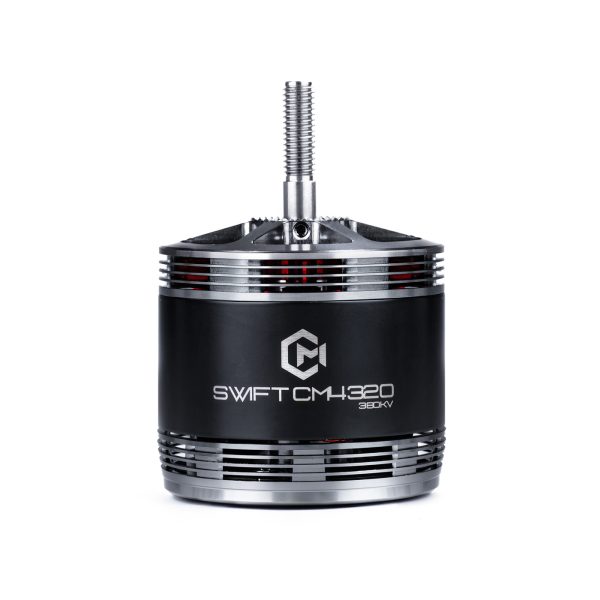

CM 4320 SWIFT FPV Drone motor

5.0 · 1 reviews In stock

SKU: 0101DJ1335

MAD SWIFT CM4320 V1.0 FPV motor with 380KV option, 51 × 73.2 mm size, 6 mm shaft, M6 propeller nut and D:30 M4×4 motor mounting.

$84.00

KV OPTION

Volume quote from 50 pcs

Need OEM marking or custom winding?
Details

CM 4320 SWIFT FPV Motor

The MAD SWIFT CM4320 V1.0 is listed with a 380KV option, 51 × 73.2 mm size, 6 mm shaft and M6 propeller nut.

Technical Specifications

KV 380KV

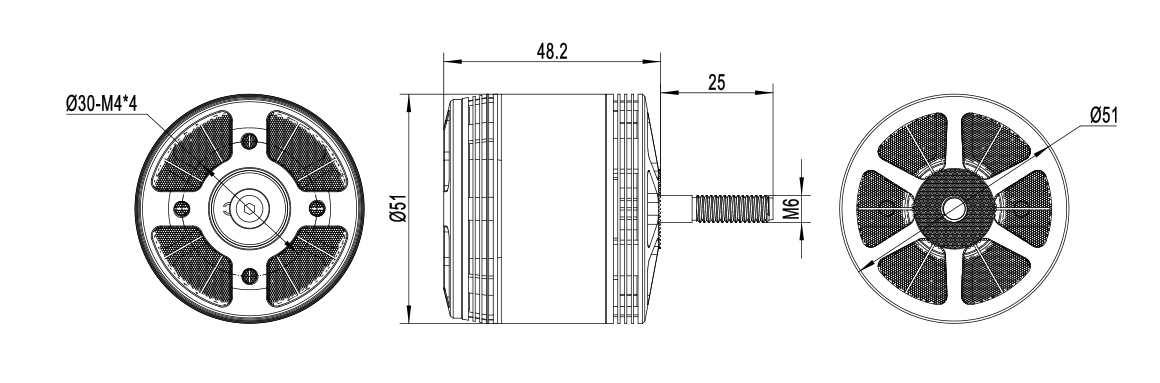

Motor size 51 × 73.2 mm
Shaft 6 mm
Propeller mounting M6 nut
Motor mounting D30 M4×4
Motor model MAD SWIFT CM4320 V1.0
KV / nominal voltage 380KV / 12S
Motor size 51 × 73.2 mm
Maximum current 79.8 A
Maximum thrust 7.9 kg
Motor weight 340 g
Maximum power 3788 W
Rated output power 795 W
Internal resistance 46.5 mΩ

Selection and Compatibility

Confirm 380KV, battery, propeller, M6 nut interface, ESC and airframe clearance as one propulsion system.

FAQ

What mounting data is listed? The source specifies D30 M4×4 motor mounting and an M6 propeller nut.

Request a Quote

Provide aircraft, battery, propeller, ESC and quantity for review.

Specifications

KV OPTION 380KV
Weight N/A
Product FAQ
What is the CM 4320 SWIFT FPV Drone motor intended for?

This product is intended for UAV and multirotor integration where the listed model and configuration match the aircraft design. Confirm motor, ESC, battery, mounting, clearance and flight-test requirements before ordering.

How should I confirm compatibility for the CM 4320 SWIFT FPV Drone motor?

Please provide the aircraft or propulsion-system model, required quantity, operating environment and installation details. Check the published product information against the manufacturer's operating range; do not select from the name alone.

Can the CM 4320 SWIFT FPV Drone motor be considered for OEM procurement?

It can be evaluated for an OEM or fleet project when the specification matches the target aircraft. For a quotation, share the model, quantity, application, destination and packaging or documentation requirements so compatibility and production details can be confirmed.

Frequently bought together

Pair this item with the accessories buyers usually evaluate in the same quote.

Total $247.90

4 items selected

Application scenarios

Built for teams that need continuous thrust and clear configuration options before locking a volume SKU.

UAV Propulsion Integration

UAV Propulsion Integration

Conceptual application for integrating the CM 4320 SWIFT FPV Drone motor into a compatible UAV propulsion system. Validate installation, loading, clearance and operating limits on the actual aircraft before deployment.

Professional UAV Platforms

Conceptual application for professional UAV development using the CM 4320 SWIFT FPV Drone motor. Confirm system interfaces, payload requirements and environmental conditions through the integrator's design review and flight testing.

OEM and Fleet Evaluation

Conceptual application for an OEM or fleet evaluation of the CM 4320 SWIFT FPV Drone motor. Final selection should follow aircraft-specific compatibility checks, procurement requirements and documented test procedures.
