Product detail

Scroll to switch images

70xx Series

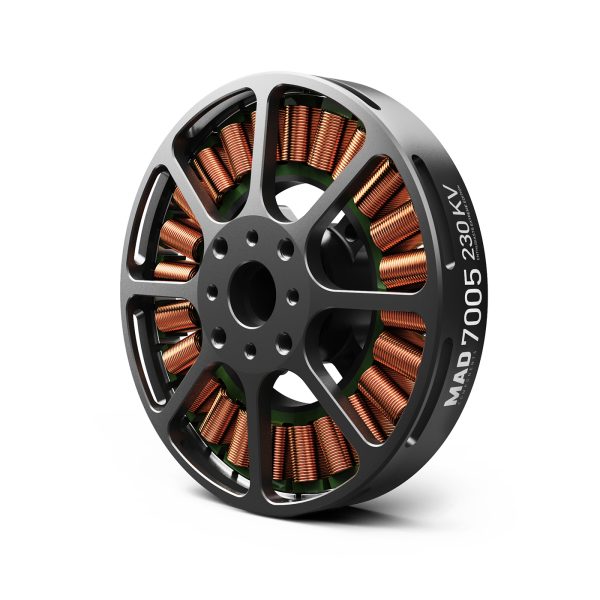

7005 EEE brushless drone motor

SKU: 0101DJ2309

Weight:188gMax Thrust:6kg (burst)Optimal Thrust Range:1.5kg/rotor(for best efficiency flight time)Typical Use: Adaptation for surveying/logistics drones,For industrial inspection machines or heavy-duty traversal machines,7005 model compatible with DJI Matrice modification 6S-12S setupswith22-26

$199.00

KV Option

Volume quote from 50 pcs

Need OEM marking or custom winding?

Details

Specification
Motor Model	MAD 7005 EEE	Number of pole pairs	14
Stator	Anticorrosive	Varnished wire Degree	180°C
Motor Size	D:79 × 21.8 mm	Magnet Degree	150°C
Degree of Protection	Rain protection	Cable Length	80 mm # Awg(Black) silicone
Centrifugal Heat Dissipation	Independent	Rotor Balance	≤5 mg
Propeller Mounting Holes	D:20 M3×4, D:23 M4×4	Motor Balance	≤10 mg
Shaft Diameter	IN: 15 mm	Motor Mounting Holes	D:32 M4×4
Bearing	EZO 6802ZZ*2	Disruptive test	500 V

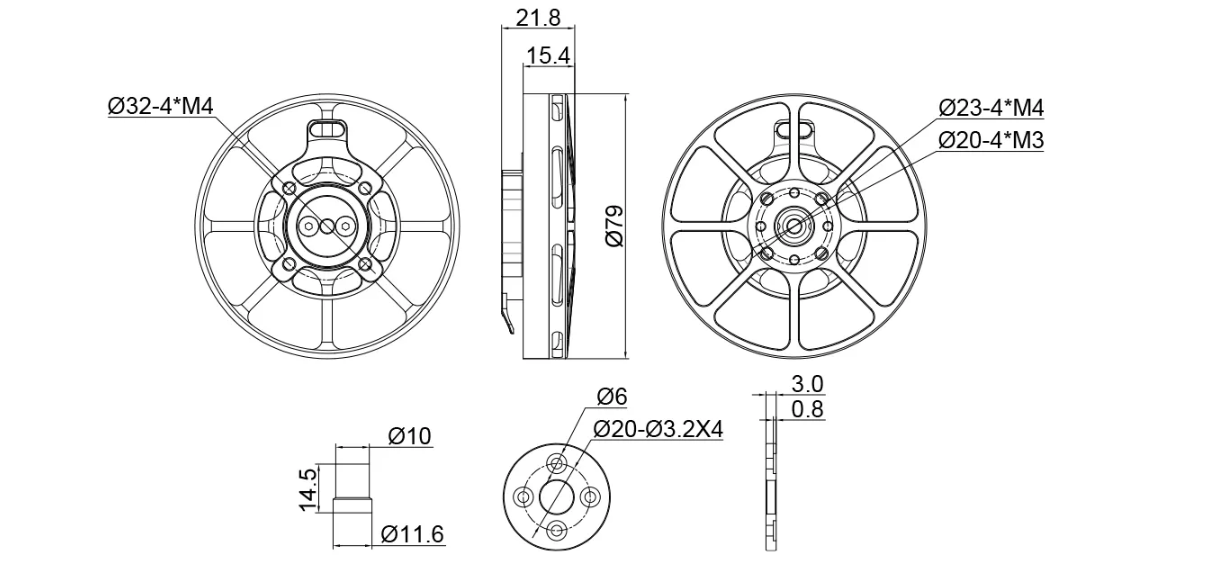

Drawing and mount holes

Specifications

KV Option	115KV / 230KV
Weight	N/A

Product FAQ

Which platforms is this SKU built for?

It targets industrial and distributor UAV programs that need clear specs, thermal margin, and repeatable production builds. Share duty cycle and AUW so we confirm the fit.

How do I choose the right configuration?

Match KV / config to pack voltage, prop diameter/pitch, and continuous current. Share duty cycle and AUW in the inquiry so we confirm the band before volume pricing.

What is the MOQ and when should I use Inquiry instead of Add to Cart?

Sample buys can use Add to Cart. Volume quote starts from 50 pcs on this SKU. Use Inquiry for dealer pricing, OEM marking, mixed lots, or when lead time and packing still need confirmation.

Can you support OEM marking and matched propulsion sets?

Yes. Logo, label language, wire length, and packing notes can be set early. We also help pair ESC class and prop size so sample and mass-production paths stay aligned.

Secure payment · SSL encrypted

Ships
Stock in 1–3 business days · volume per written lead time
Returns
7-day DOA exchange · unused sealed parts in 15 days
Warranty
12-month limited cover · defect review by photo / video
Support
Reply in 1 business day · WhatsApp for urgent matching

Frequently bought together

Pair this item with the accessories buyers usually evaluate in the same quote.

This item: 7005 EEE brushless drone motor $199.00
+
Antimatter M6C06 EEE Drone motor $99.00
+
BLC 4315 FPV Drone Motor $51.00
+
AM75 Heavy-Lift Drone Motor $2,429.00

Total $2,778.00

4 items selected

Application scenarios

Built for teams that need continuous thrust and clear configuration options before locking a volume SKU.

Heavy-lift multirotor

Cargo and industrial airframes that run long duty cycles. Pair KV with prop load and continuous current before sample evaluation.

Manned / hybrid platforms

Manned and hybrid propulsion stacks where thermal margin and repeatable production builds matter more than hobby peak thrust.

Cinema & survey fleets

Multi-airframe fleets that restock the same motor family across seasons. Volume inquiry covers dealer pricing and staged ship windows.

OEM private-label programs

Marking, wire length, and packing language for partners that move from evaluation lots into annual forecasts.
