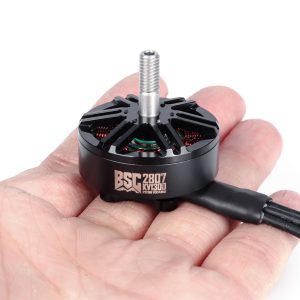

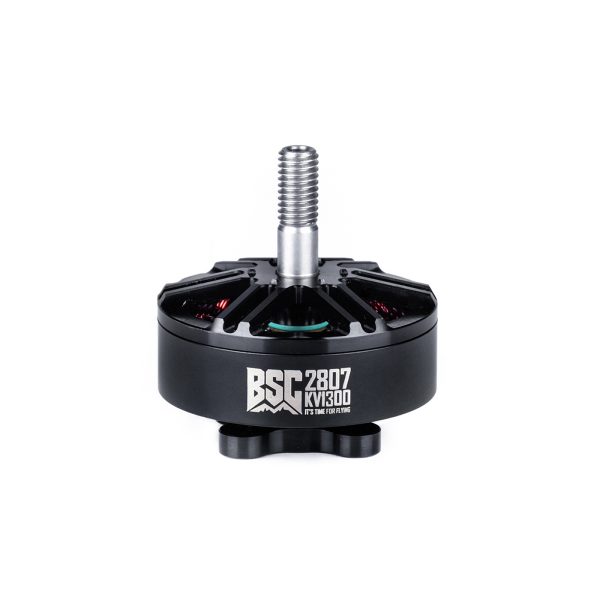

BSC 2807 FPV drone motor

Scroll to switch images

BSC Series - Basic

BSC 2807 FPV drone motor

5.0 · 1 reviews In stock

SKU: 0101DJ1488

BSC 2807 FPV drone motor for X8 coaxial twin-propeller builds; confirm motor fit and installation requirements when requesting this model.

Price range: $11.00 through $22.80

KV Option

Volume quote from 50 pcs

Need OEM marking or custom winding?
Details

MAD BSC 2807 V1.0 FPV Motor

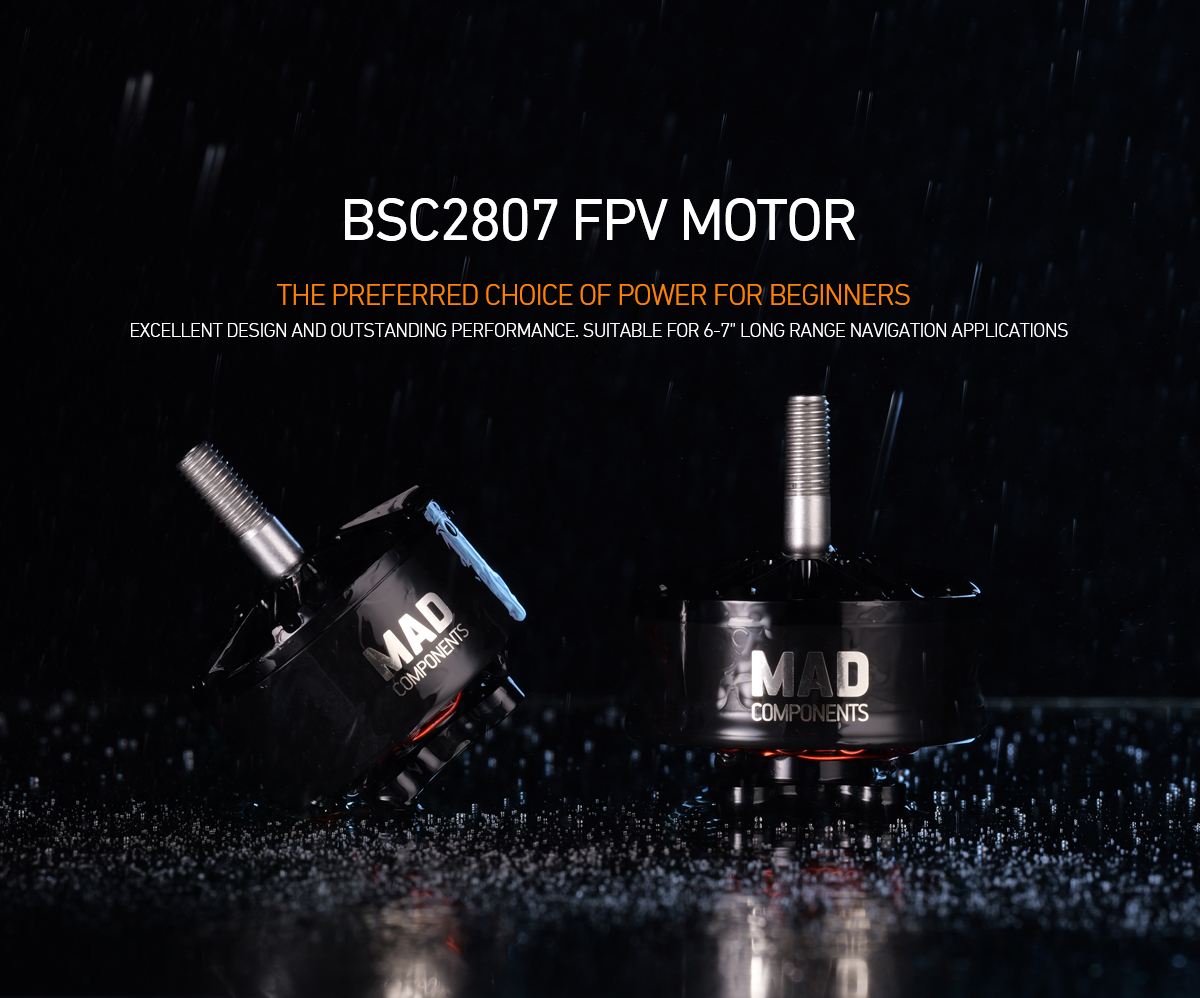

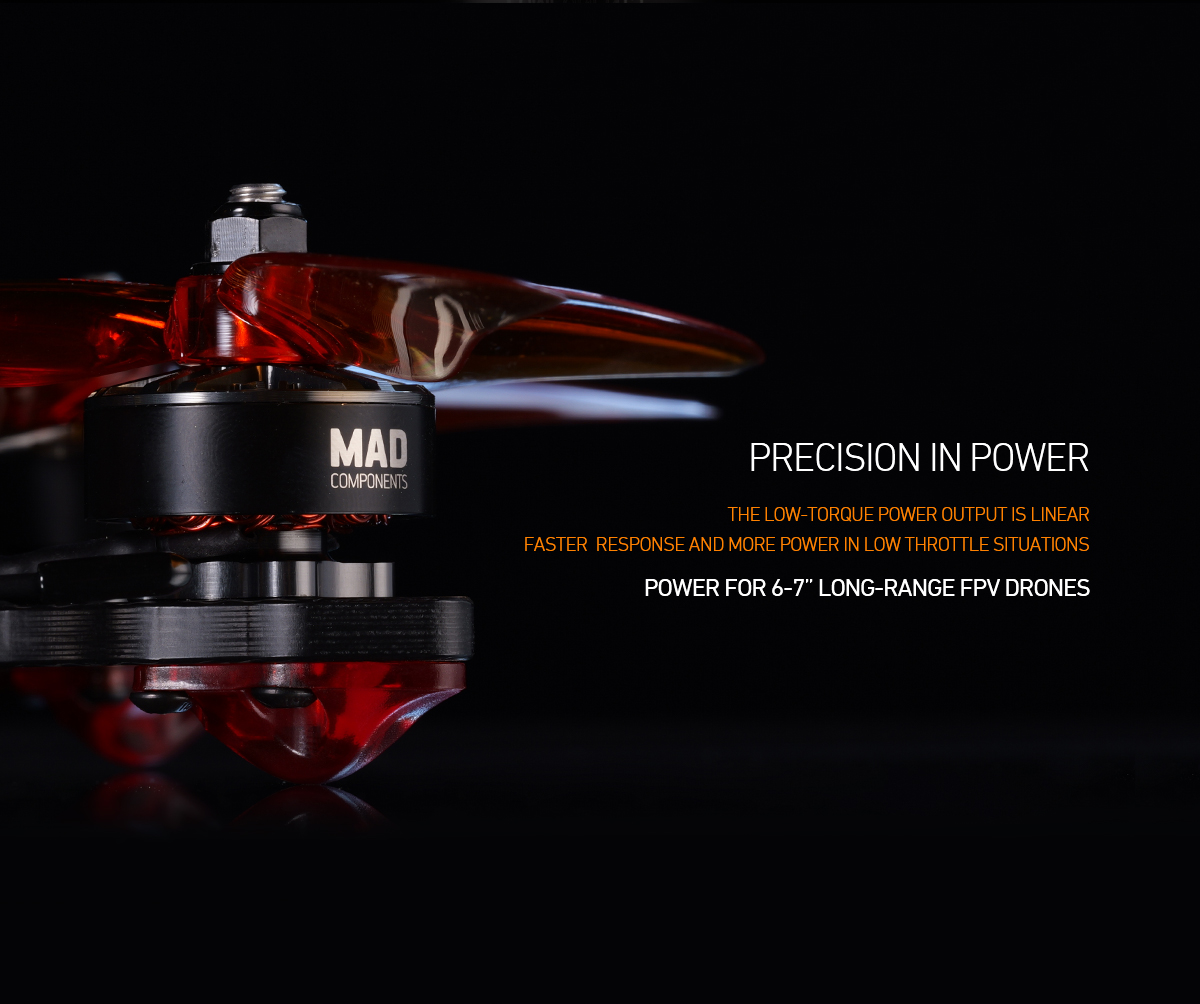

The BSC 2807 uses a 12N14P design with a 33.6 × 35.7mm body and 5mm shaft for 6–7 inch long-range FPV platforms.

Technical Specifications

Model MAD BSC 2807 V1.0

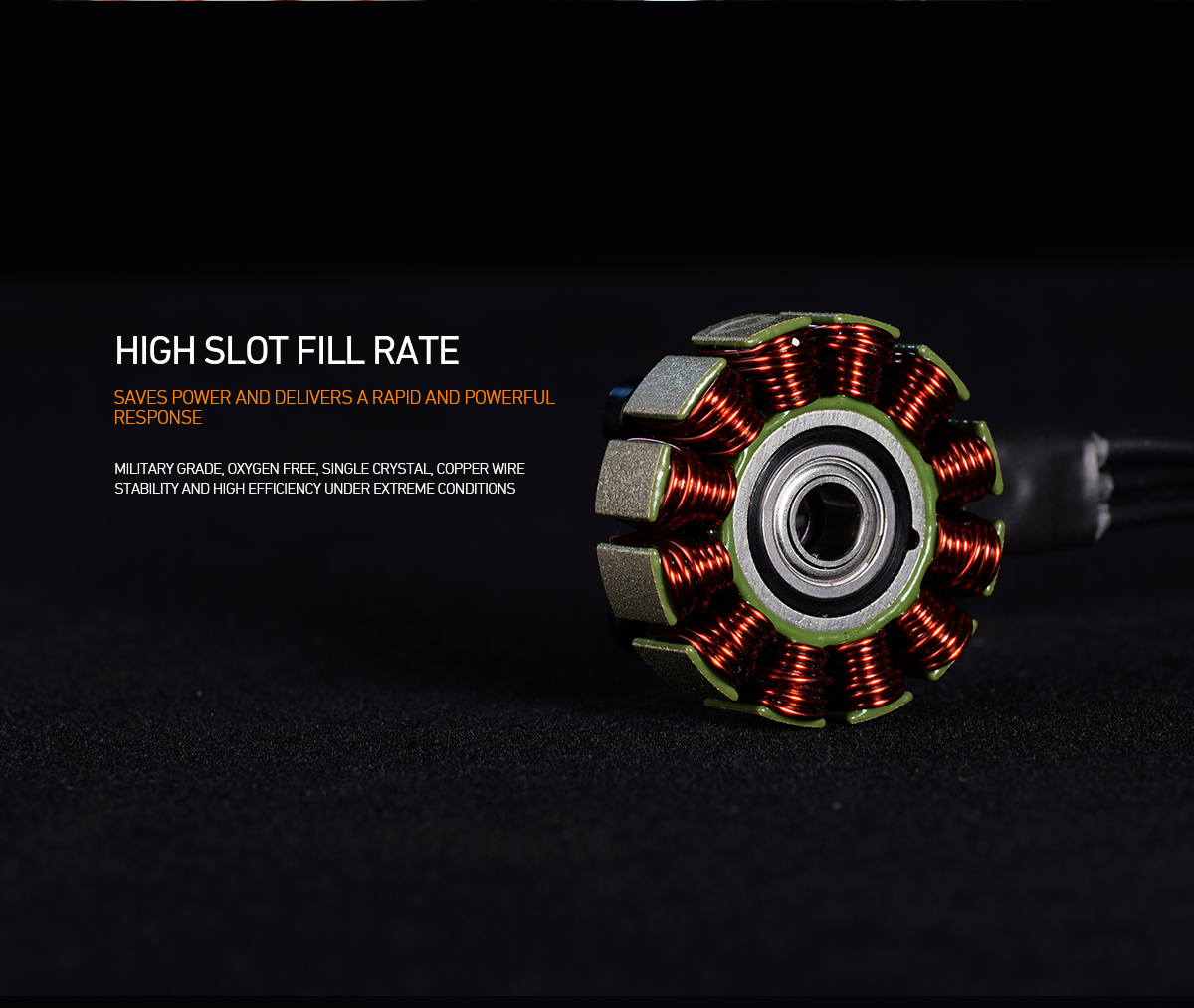

Slots / poles 12N14P

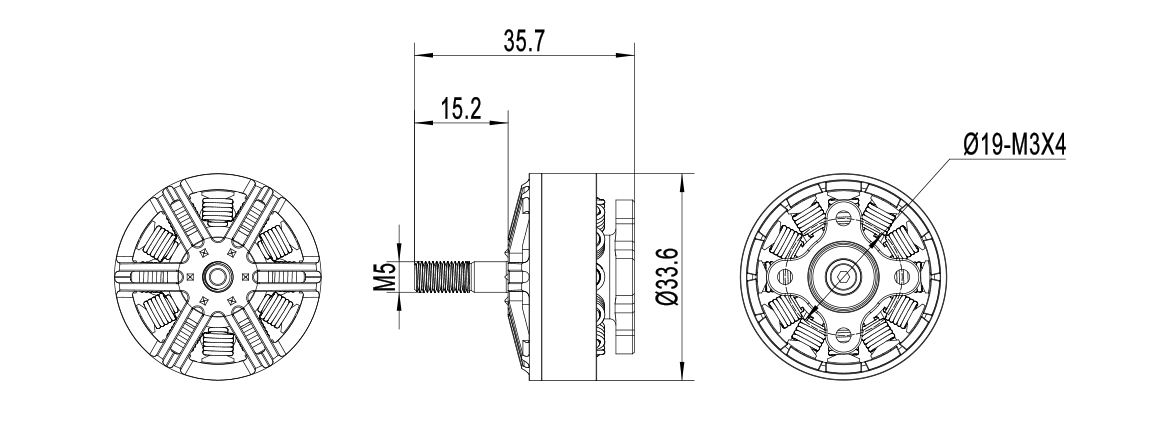

Motor size D:33.6 × 35.7mm
Rotor balance ≤5mg
Propeller mounting M5 nut
Motor mounting D:19 M3×4
Shaft diameter 5mm
Cable 250mm, 18 AWG black silicone wire

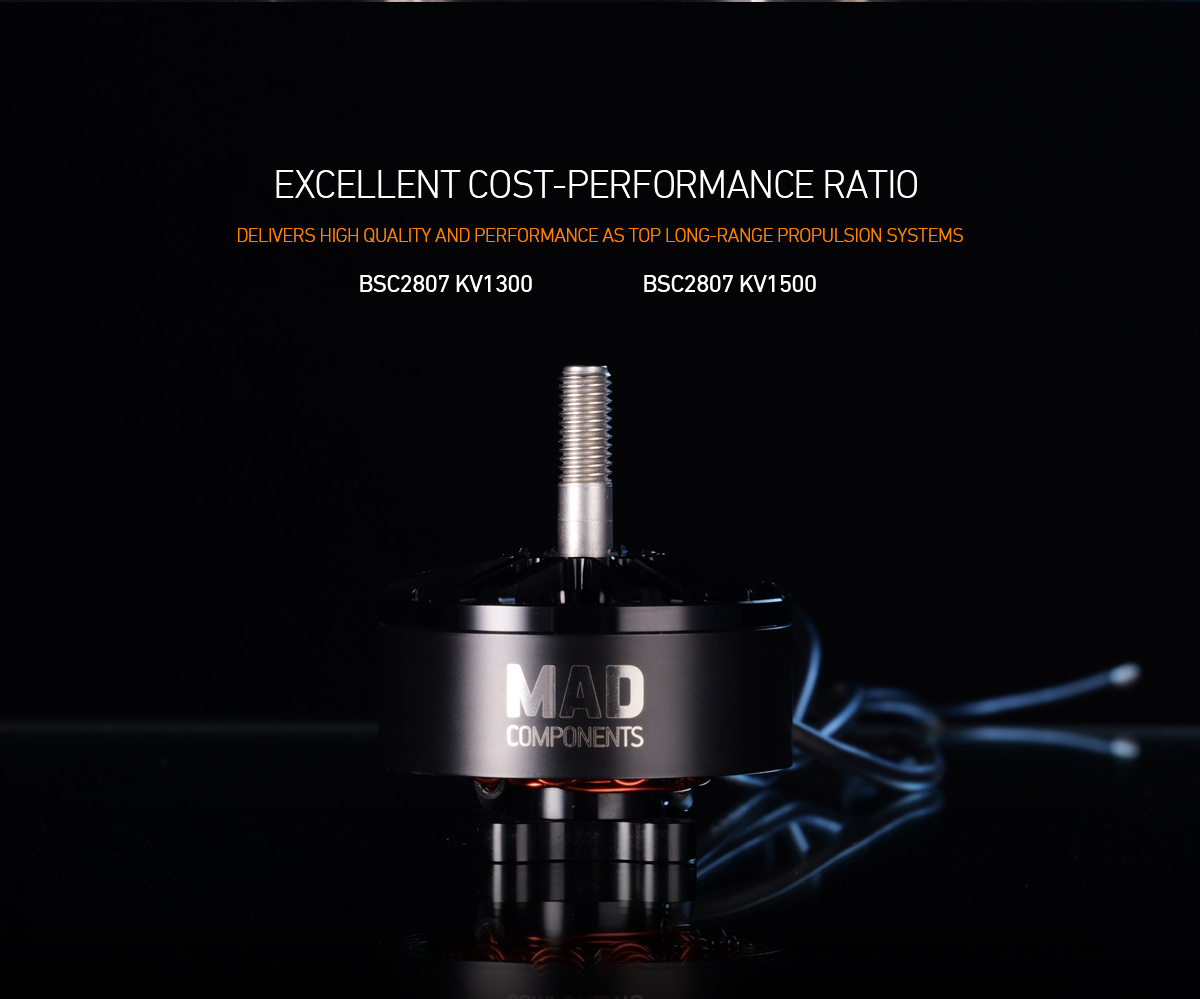

KV options 1300KV / 1500KV
Phase resistance 77mΩ / 61mΩ
No-load current 1.06A / 10V; 1.25A / 10V
Maximum thrust 2.4kg / 2.1kg
Maximum current 45.4A / 47.6A
Rated output power 215W / 281W
Motor weight with cable 47g
Boxed weight 61g

Request a Quote

Send the selected KV, battery, propeller, ESC, frame and quantity for a quotation.

Specifications

KV Option 1300KV-6S / 1500kV-6S / Rotors + locking shaft screw + O ring + Gaskets
Weight N/A
Product FAQ
What is the BSC 2807 FPV drone motor intended for?

This product is intended for UAV and multirotor integration where the listed model and configuration match the aircraft design. Confirm motor, ESC, battery, mounting, clearance and flight-test requirements before ordering.

How should I confirm compatibility for the BSC 2807 FPV drone motor?

Please provide the aircraft or propulsion-system model, required quantity, operating environment and installation details. Check the published product information against the manufacturer's operating range; do not select from the name alone.

Can the BSC 2807 FPV drone motor be considered for OEM procurement?

It can be evaluated for an OEM or fleet project when the specification matches the target aircraft. For a quotation, share the model, quantity, application, destination and packaging or documentation requirements so compatibility and production details can be confirmed.

Frequently bought together

Pair this item with the accessories buyers usually evaluate in the same quote.

Total $89.80

4 items selected

Application scenarios

Built for teams that need continuous thrust and clear configuration options before locking a volume SKU.

UAV Propulsion Integration

UAV Propulsion Integration

Conceptual application for integrating the BSC 2807 FPV drone motor into a compatible UAV propulsion system. Validate installation, loading, clearance and operating limits on the actual aircraft before deployment.

Professional UAV Platforms

Conceptual application for professional UAV development using the BSC 2807 FPV drone motor. Confirm system interfaces, payload requirements and environmental conditions through the integrator's design review and flight testing.

OEM and Fleet Evaluation

Conceptual application for an OEM or fleet evaluation of the BSC 2807 FPV drone motor. Final selection should follow aircraft-specific compatibility checks, procurement requirements and documented test procedures.
