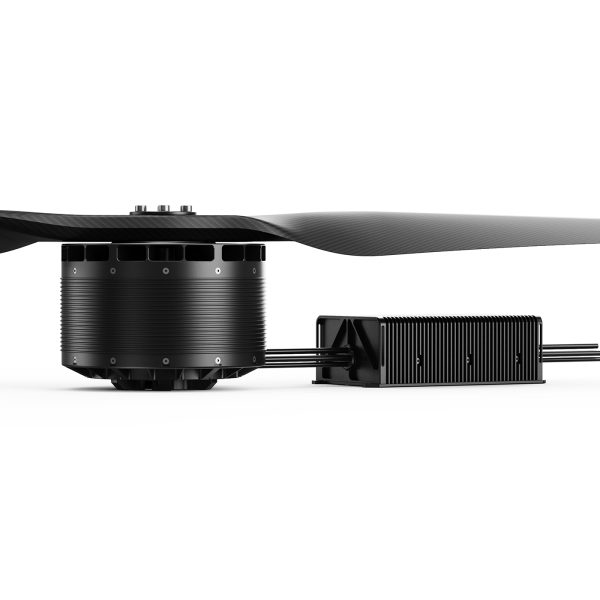

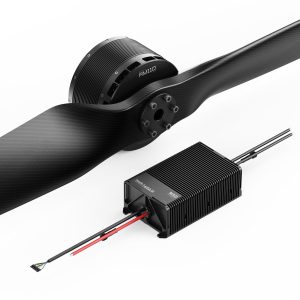

AM110 Heavy-Lift Drone Power System Kit is a matched propulsion package for heavy-lift multirotors and VTOL aircraft. The official MAD specification lists a 9KV AM110 motor, a SineSic 160A Pro ESC, and a FLUXER PRO 73×29 propeller. It is rated at 110 kg recommended thrust per rotor, with maximum thrust listed at 226.3 kg. The kit is specified for 96S LiPo operation.
The motor measures 198.7×144.8 mm and weighs 10.4 kg. The kit weight is listed as 14,200±100 g. The motor uses a 250 mm enamel-wire lead. The matched ESC is listed at 212.5×120×68 mm and 2,714 g, with 160A continuous output, 280A peak output for 10 seconds, IPX7 protection and dual CAN 2.0B communication. The operating-temperature range is −20°C to 50°C. These figures describe the propulsion system, not a complete aircraft payload guarantee; confirm battery architecture, cooling, wiring, propeller clearance and flight-control settings before testing.
Select CW or CCW to match the airframe. Kit A includes a PT1000 temperature sensor. Kit B adds an encoder for locking the propeller at a specified stop position and requires compatible ESC firmware. Compare the AM130 9KV Power System Kit, AM90 Heavy-Lift Drone Power System Kit, and Reachsky Drone Propellers.
AM110 FAQs
What propeller is listed?
The official kit listing specifies a 73×29 FLUXER PRO propeller.
What does Kit B add?
Kit B adds an encoder for propeller position locking and requires compatible ESC firmware.
What battery is listed?
The official AM110 kit specification lists a 96S LiPo battery configuration.
