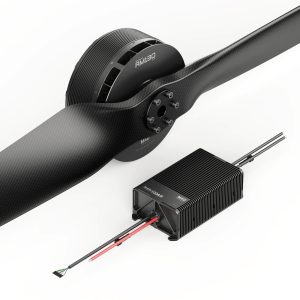

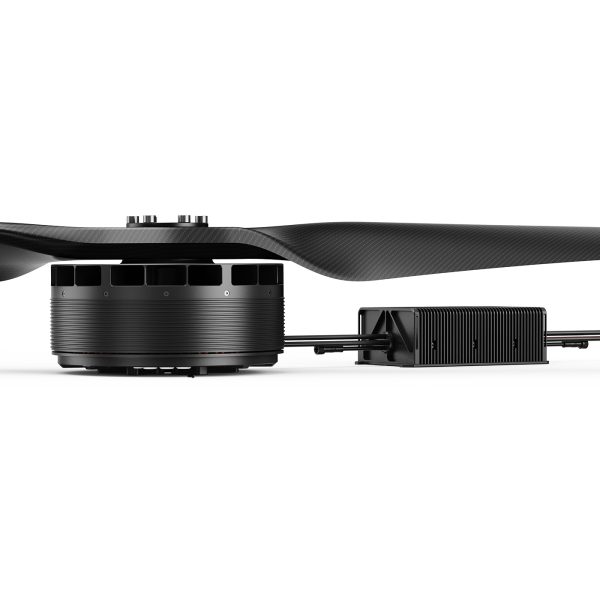

AM130 9KV Power System Kit is a matched heavy-lift propulsion package for large multirotors and VTOL aircraft. The official MAD specification identifies an AM130 motor at 9KV with a recommended single-rotor takeoff load of 120–130 kg and a maximum thrust of 241.1 kg. The listed matched propeller is 73×29, and the system is specified for 96S operation.
The motor measures 257×124 mm and weighs 13.7 kg. Its listed maximum current is 177.9A and maximum power is 63.5 kW. The motor uses a D75 M8×6 propeller mounting pattern, a 35 mm shaft, D100 M8×6 and D140 M8×6 motor mounting patterns, 250 mm cable length, and IP45 protection. The official AM130 kit listing reports a kit weight of 18,100±100 g. These figures describe the propulsion system and are not a complete aircraft payload rating; final performance depends on battery, ESC, cooling, structure, propeller clearance, and flight-control settings.
Select CW or CCW to match the airframe. The product also lists Power System Kit A and Kit B; confirm the version-specific firmware, sensor, and wiring contents before ordering. Compare the AM110 Heavy-Lift Drone Power System Kit, AM160 4.5KV Heavy-Lift Power System Kit, and Reachsky Drone Propellers.
AM130 9KV FAQs
Which propeller is listed for AM130?
The official AM130 specification lists a 73×29 propeller.
What battery configuration is listed?
The official motor specification lists 96S operation.
What should be confirmed before ordering Kit A or Kit B?
Confirm the version-specific firmware, sensor, wiring, and included components with MAD before purchase.
