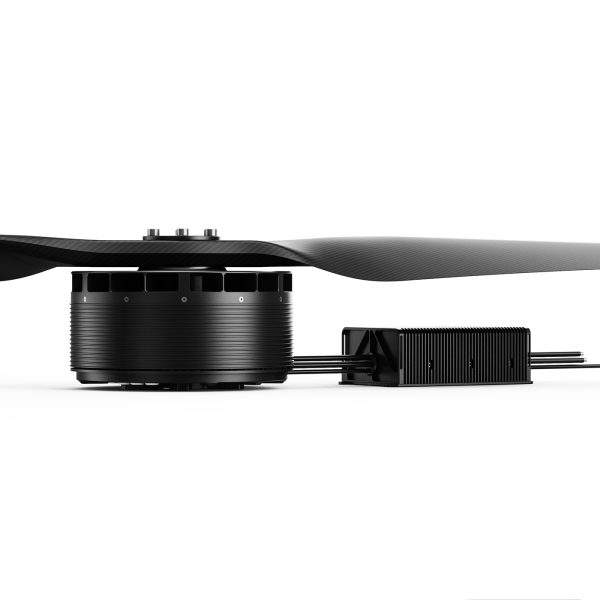

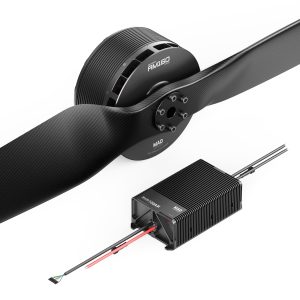

AM160 4.5KV Heavy-Lift Power System Kit is a matched high-voltage propulsion package for heavy-lift multirotors and VTOL aircraft. The official MAD specification lists a 4.5KV AM160 motor, SineSic 100A Pro ESC, and a 78×30 propeller. The kit is rated at 160 kg recommended thrust per rotor, with maximum thrust listed up to 258 kg in the technical sheet. Confirm the complete aircraft design before treating these figures as aircraft payload capacity.
The motor is specified at 256×139 mm and 16.4 kg, with a 250 mm lead. The kit weight is listed as 20,500±100 g. The ESC is listed at 212.5×120×68 mm and 2,293 g, with 100A continuous output, 200A peak output for 10 seconds, IPX7 protection, and dual CAN 2.0B communication. The compatible battery listing is 190S LiPo, and the operating-temperature range is −20°C to 50°C. The propeller specification lists a D25 centre hole and M8×6 mounting pattern.
Select CW or CCW to match the airframe, then choose Kit A or Kit B. Kit A includes the PT1000 temperature sensor; Kit B adds encoder-based propeller position locking and requires compatible ESC firmware. Compare the AM110 Heavy-Lift Drone Power System Kit, AM90 8.5KV Heavy-Lift Drone Power System Kit, and Reachsky Drone Propellers before selecting a matched system.
AM160 4.5KV FAQs
What does Kit B add?
Kit B adds encoder-based propeller position locking and requires compatible ESC firmware.
What battery specification is listed?
The official AM160 kit sheet lists a 190S LiPo battery configuration.
Which propeller is listed?
The kit listing specifies a 78×30 propeller with a D25 centre hole and M8×6 mounting pattern.
