BSC 4214 FPV drone motor

Scroll to switch images

BSC Series - Basic

BSC 4214 FPV drone motor

5.0 · 1 reviews In stock

SKU: 0101DJ1981

BSC 4214 Motor is designed for large FPV and multirotor platforms that require efficient power delivery, strong torque, and reliable performance. Featuring a large 4214 stator size, optimized 12N14P electromagnetic design, and robust mechanical construction, it delivers smooth thrust output, excellent efficiency, and stable flight performance for demanding aerial applications.

$44.90

KV OPTION

Volume quote from 50 pcs

Need OEM marking or custom winding?
Details

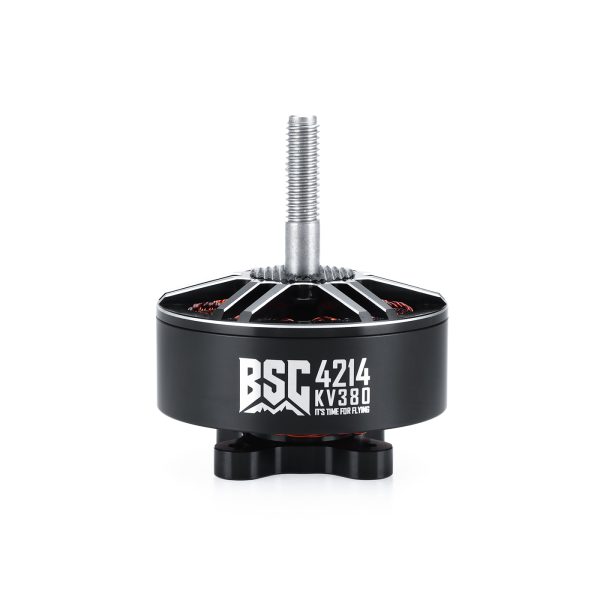

MAD BSC 4214 V1.0 FPV Motor

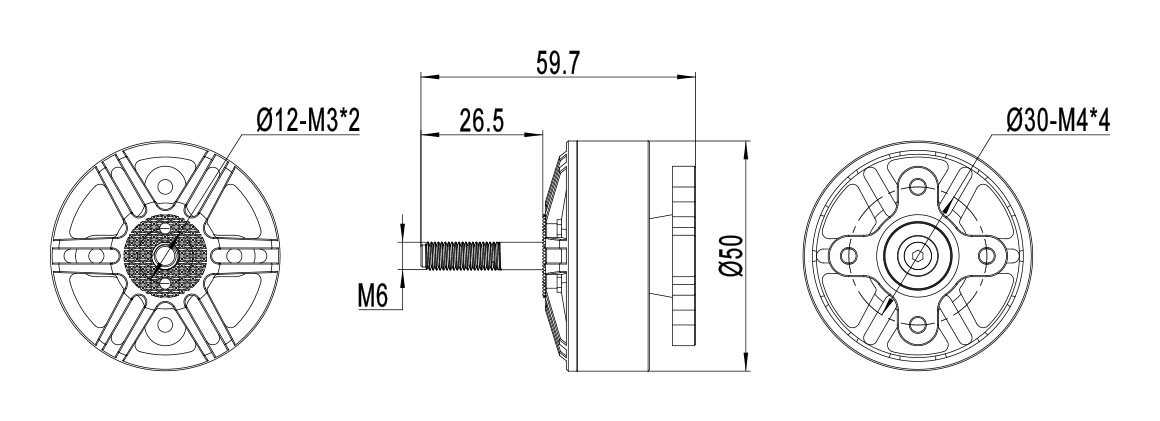

The MAD BSC 4214 is listed for 13-inch long-range FPV platforms. Its 380KV winding, 50 × 59.7mm motor size and 6mm shaft define the installation and propulsion selection.

Technical Specifications

Motor model MAD BSC 4214 V1.0
Stator / poles 12N14P
Motor size D: 50 × 59.7mm
Rotor balance ≤5mg
Propeller mounting M6 nut
Motor mounting D:30 M4×4
Shaft diameter 6mm
Cable 800mm, 14 AWG black silicone wire
KV 380KV
Phase resistance 37mΩ
No-load current 1.0A / 20V
Maximum thrust 4.7kg
Maximum current 45.8A
Rated output power 289W
Motor weight without cable 197g

Application and Ordering

Match the 380KV motor with the selected battery, propeller, ESC and frame clearance. Send the propulsion configuration and quantity for a quotation.

Specifications

KV OPTION 380KV-8S
Weight N/A
Product FAQ
What is the BSC 4214 FPV drone motor intended for?

This product is intended for UAV and multirotor integration where the listed model and configuration match the aircraft design. Confirm motor, ESC, battery, mounting, clearance and flight-test requirements before ordering.

How should I confirm compatibility for the BSC 4214 FPV drone motor?

Please provide the aircraft or propulsion-system model, required quantity, operating environment and installation details. Check the published product information against the manufacturer's operating range; do not select from the name alone.

Can the BSC 4214 FPV drone motor be considered for OEM procurement?

It can be evaluated for an OEM or fleet project when the specification matches the target aircraft. For a quotation, share the model, quantity, application, destination and packaging or documentation requirements so compatibility and production details can be confirmed.

Frequently bought together

Pair this item with the accessories buyers usually evaluate in the same quote.

Total $896.78

4 items selected

Application scenarios

Built for teams that need continuous thrust and clear configuration options before locking a volume SKU.

UAV Propulsion Integration

UAV Propulsion Integration

Conceptual application for integrating the BSC 4214 FPV drone motor into a compatible UAV propulsion system. Validate installation, loading, clearance and operating limits on the actual aircraft before deployment.

Professional UAV Platforms

Conceptual application for professional UAV development using the BSC 4214 FPV drone motor. Confirm system interfaces, payload requirements and environmental conditions through the integrator's design review and flight testing.

OEM and Fleet Evaluation

Conceptual application for an OEM or fleet evaluation of the BSC 4214 FPV drone motor. Final selection should follow aircraft-specific compatibility checks, procurement requirements and documented test procedures.
