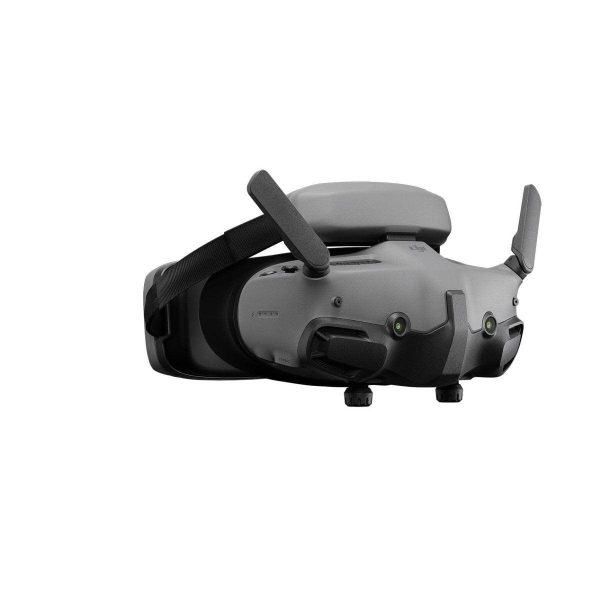

DJI Goggles 3 for matched UAV or FPV installation
DJI Goggles 3 is identified by its listed model and component class. Confirm the exact configuration, interface, rotation, mounting pattern and included parts before ordering.
Match this component to the complete system, including battery, motor, propeller, ESC, wiring, cooling, mounting and firmware where applicable. Do not infer missing current duration, load rating, thrust, RPM, weight, certification or endurance from the product name or images.
This product is not a universal replacement. Verify polarity, cell count, mechanical fit, fastener size and operating limits before commissioning, then perform restrained testing.
For related selection, review the AM110 power-system kit, the VC propeller range, and browse the propeller category.
DJI Goggles 3 FAQ
What should be confirmed before ordering?
Confirm the exact model, interface, rotation, included parts and current documentation.
Can compatibility be inferred from appearance?
No. Verify the item against the specific aircraft, motor, battery and controller.
Does the listing establish a performance rating?
Only manufacturer-confirmed specifications should be used; do not infer missing ratings from images.
Features
DJI Goggles 3 now has Real View PiP (Picture-In-Picture). Observe your surroundings without removing the goggles, for more safety and immersion. The Micro-OLED high-definition display and ultra-low-latency transmission bring the world in to view.
Specifications
- Video Transmission System: O4
- Live View Quality: 1080p@30/50/60/100fps
- Operating Frequency:
-5.170-5.250 GHz*
-5.725-5.850 GHz*
* 5.170-5.250 GHz and 5.725-5.850 GHz can be used only in countries and regions where permitted by local laws and regulations.
- Transmitter Power (EIRP):
＜33 dBm (FCC)
＜20 dBm (CE/SRRC/MIC)
-5.1 GHz
< 23 dBm (CE)
-5.8 GHz
＜33 dBm (FCC)
＜30 dBm (SRRC)
< 14 dBm (CE)
- Communication Bandwidth Max 60 MHz
- Max Transmission Distance (unobstructed, free of interference)
-CE: 10 km
-SRRC: 10 km
-MIC: 10 km
* Measured in an unobstructed outdoor environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. Always pay attention to RTH reminders on the goggles screen during your flight.
- Max Transmission Distance (unobstructed, with interference)
-Medium Interference: Suburban landscape, approx. 4-10 km
-Low Interference: Suburb/seaside, approx. 10-13 km
* Data tested under FCC standard in unobstructed environments with typical interference. Used for reference purposes only and provides no guarantee for actual transmission distance.
- Max Transmission Distance (obstructed, with interference)
-Low Interference and Obstructed by Trees: approx. 0.5-3 km
* Data tested under FCC standard in environments with typical low interference. Used for reference purposes only and provides no guarantee for actual transmission distance.
- Max Download Speed: Wi-Fi: 30 MB/s
- Lowest Latency With DJI Goggles 3:
-1080p/60fps Video Transmission Quality: 40 ms
- Max Video Bitrate: 60Mbps
- Antennas: 4 antennas, 2T4R
Includes
- 1x DJI Goggles 3
