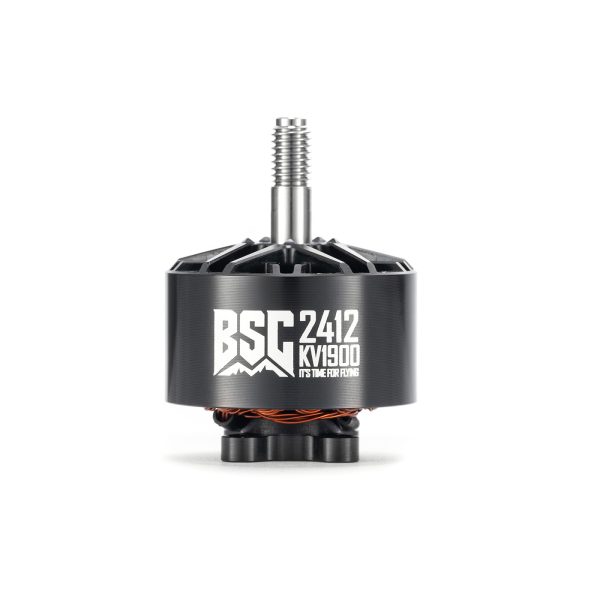

BSC 2412 FPV Drone Motor

Scroll to switch images

BSC Series - Basic

BSC 2412 FPV Drone Motor

5.0 · 1 reviews In stock

SKU: 0101DJ2213

BSC 2412 Motor is designed for pilots and builders who need a powerful, efficient, and reliable propulsion solution for larger FPV platforms. Featuring a larger stator design, optimized 12N14P electromagnetic structure, and lightweight construction, it delivers strong torque, smooth power output, and excellent efficiency for demanding aerial applications.

$26.50

KV OPTION

Volume quote from 50 pcs

Need OEM marking or custom winding?
Details

BSC 2412 FPV Drone Motor

MAD FPV motor with verified model, mechanical dimensions and electrical data for propulsion selection. Match KV, battery, propeller, ESC and frame clearance before ordering.

Technical Specifications

Motor model MAD BSC2412 V1.0
Slots / poles 12N14P

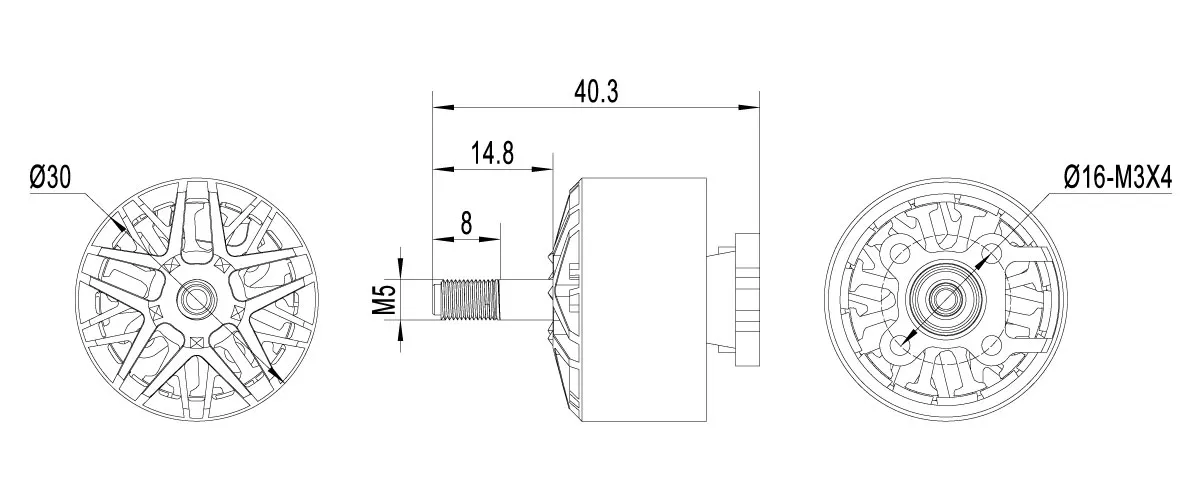

Motor size D:30 × 40.3mm
Rotor balance ≤5mg
Propeller mounting M5 nut
Motor mounting D:16 M3×4
Shaft diameter 4mm
Cable 200mm, 18 AWG black silicone wire
KV 1900KV
Phase resistance 20.5mΩ
No-load current 2.4A / 10V
Maximum thrust 2.7kg
Maximum current 75A
Rated output power 612W
Motor weight 61g

Application and Ordering

Use the listed dimensions and mounting pattern to confirm installation. Send the selected KV, battery, propeller, ESC and quantity for a quotation.

Specifications

KV OPTION 1900KV
Weight N/A
Product FAQ
What is the BSC 2412 FPV Drone Motor intended for?

This product is intended for UAV and multirotor integration where the listed model and configuration match the aircraft design. Confirm motor, ESC, battery, mounting, clearance and flight-test requirements before ordering.

How should I confirm compatibility for the BSC 2412 FPV Drone Motor?

Please provide the aircraft or propulsion-system model, required quantity, operating environment and installation details. Check the published product information against the manufacturer's operating range; do not select from the name alone.

Can the BSC 2412 FPV Drone Motor be considered for OEM procurement?

It can be evaluated for an OEM or fleet project when the specification matches the target aircraft. For a quotation, share the model, quantity, application, destination and packaging or documentation requirements so compatibility and production details can be confirmed.

Frequently bought together

Pair this item with the accessories buyers usually evaluate in the same quote.

Total $246.50

4 items selected

Application scenarios

Built for teams that need continuous thrust and clear configuration options before locking a volume SKU.

UAV Propulsion Integration

UAV Propulsion Integration

Conceptual application for integrating the BSC 2412 FPV Drone Motor into a compatible UAV propulsion system. Validate installation, loading, clearance and operating limits on the actual aircraft before deployment.

Professional UAV Platforms

Conceptual application for professional UAV development using the BSC 2412 FPV Drone Motor. Confirm system interfaces, payload requirements and environmental conditions through the integrator's design review and flight testing.

OEM and Fleet Evaluation

Conceptual application for an OEM or fleet evaluation of the BSC 2412 FPV Drone Motor. Final selection should follow aircraft-specific compatibility checks, procurement requirements and documented test procedures.
