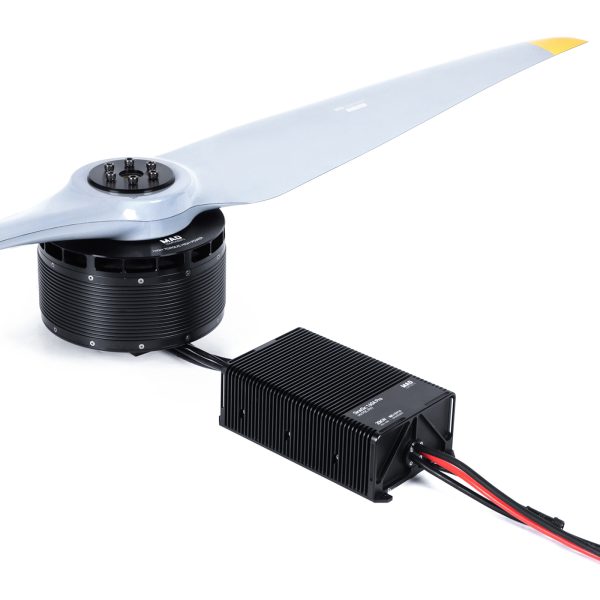

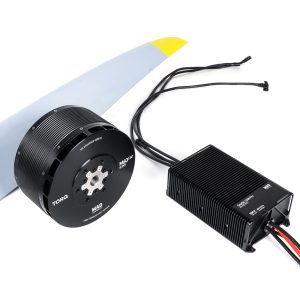

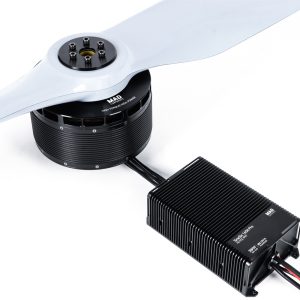

HB90-72X25 Drone Power Combo is an integrated heavy-lift propulsion package for large multirotors, e-VTOL aircraft, delivery drones, and other high-payload platforms. The official MAD listing combines an M60C60 IPE motor, SineSic Pro 160A FOC ESC, and a FLUXER PRO 72×25 propeller. The system is identified as 8.5KV and is rated for 90 kg recommended thrust, with maximum thrust listed at 178 kg and maximum motor power at 45.7 kW.
The motor specification lists 354–400V operation, a 196.8×130 mm motor size, 9.4 kg motor weight, 25 mm shaft, 150 mm cable length, and 123.8A maximum current. The matched ESC is listed at 212.5×120×68 mm and 1.9 kg, with 160A continuous current and 320A instantaneous current under suitable cooling. The listed battery range is 96–100S LiPo, and the ESC protection rating is IP67. These ratings are propulsion-system data, not a complete aircraft payload guarantee; confirm cooling, structure, wiring, propeller clearance, and flight-control settings before testing.
Select CW, CCW, or CW+CCW to match the aircraft layout. Compare the HB110 Drone Power Combo, AM90 Heavy-Lift Drone Power System Kit, and Reachsky Drone Propellers before choosing a matched configuration.
HB90-72X25 FAQs
What propeller is listed?
The official combo lists a FLUXER PRO 72×25 propeller.
What battery range is listed?
The official specification lists a 96–100S LiPo battery range.
What does the 90 kg figure represent?
MAD lists 90 kg as recommended thrust and 178 kg as maximum thrust for the motor specification.
