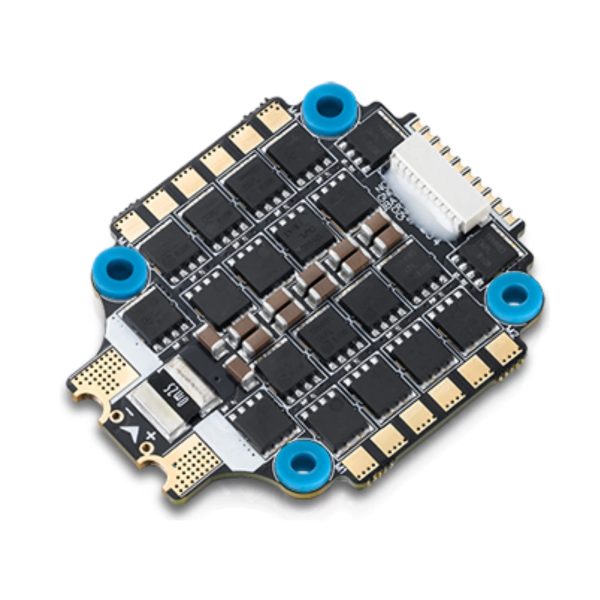

XROTOR 4-in-1 G2 65A ESC for matched FPV or UAV installation
XROTOR 4-in-1 G2 65A ESC is identified by its listed model and component class. Confirm the exact configuration, interface, rotation, mounting pattern and included parts before ordering.
Match this component to the complete system, including battery, motor, propeller, ESC, wiring, cooling, mounting and firmware where applicable. Do not infer missing current duration, load rating, thrust, RPM, weight, certification or endurance from the product name or images.
This product is not a universal replacement. Verify polarity, cell count, mechanical fit, fastener size and operating limits before commissioning, then perform restrained testing.
For related selection, review the FPV platform, the ESC selection, and browse the propeller category.
XROTOR 4-in-1 G2 65A ESC FAQ
What should be confirmed before ordering?
Confirm the exact model, interface, cell count or voltage, included parts and current documentation.
Can compatibility be inferred from appearance?
No. Verify the item against the specific aircraft, motor, battery and controller.
Does the listing establish a performance rating?
Only manufacturer-confirmed specifications should be used; do not infer missing ratings from images.
Generation 2 of what some consider the once best ESC. The Hobbywing XRotor G2 65A BLHeli_32 4-In-1 ESC delivers superior power and performance with support for 128k PWM output and Dshot1200. Built with imported MOSFETs and high-quality ceramic capacitors, this ESC is durable and strong enough to survive rough handling in any build.
Features:

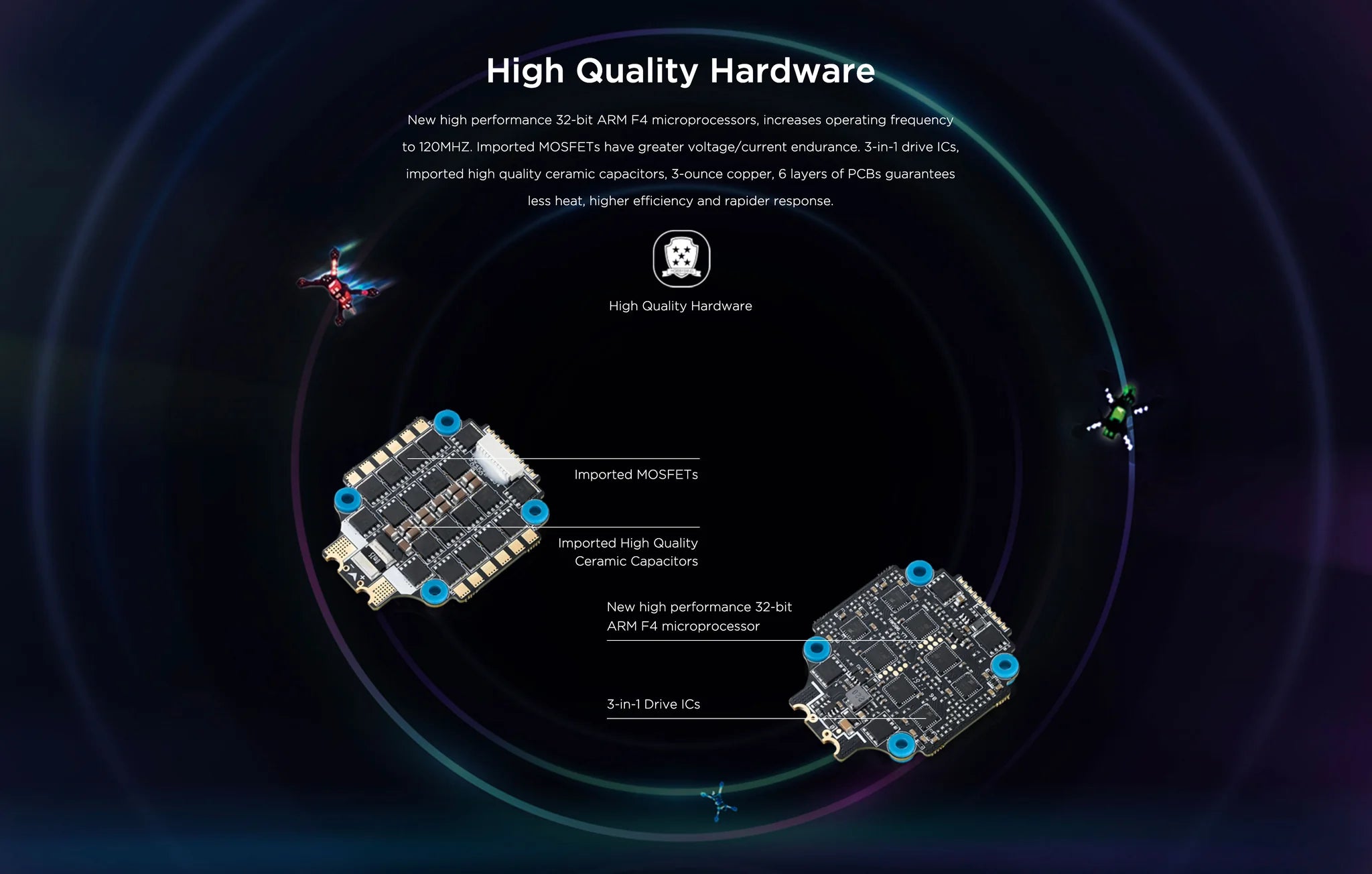

- High-performance 32-bit microprocessor with a running frequency of up to 120MHz for excellent performance.

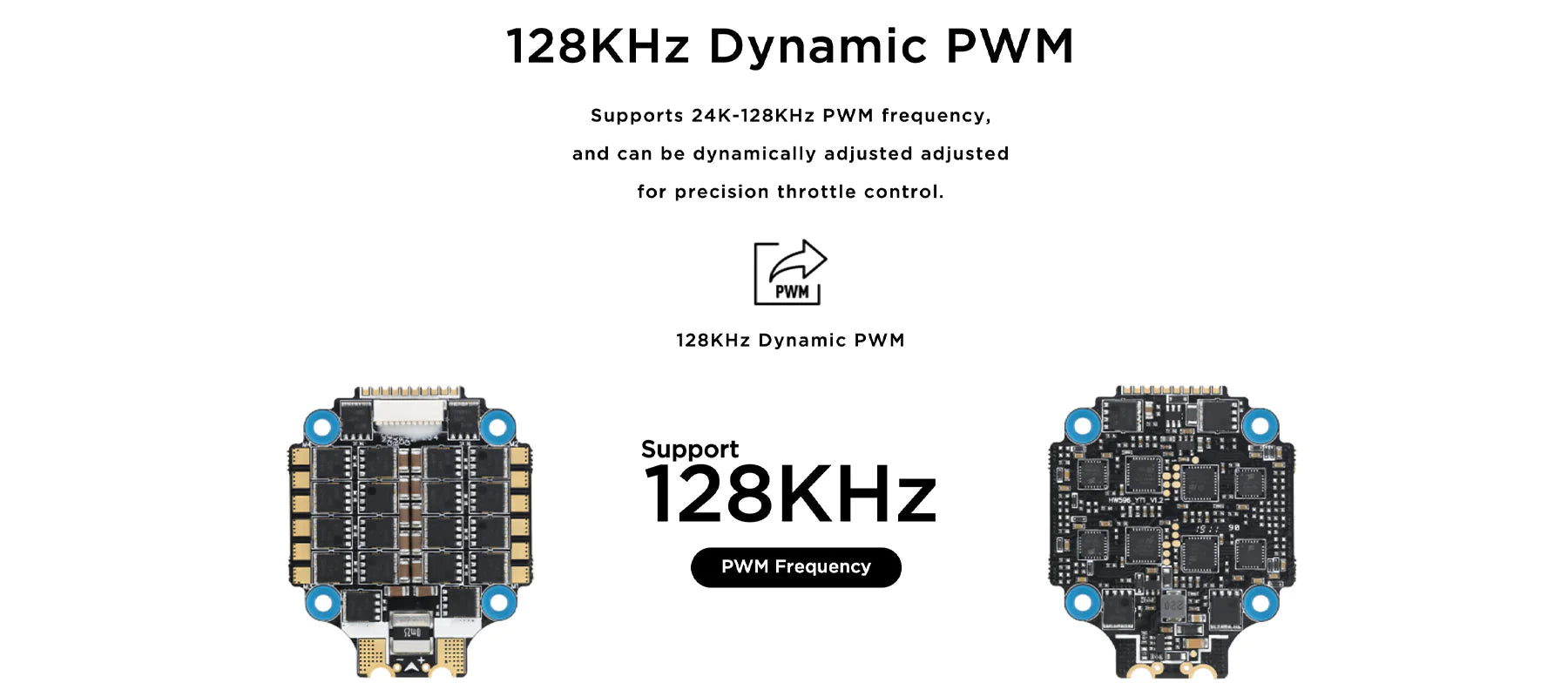

- The third generation BLHeli_32 code can support up to 128KHz PWM output frequency, which can be compatible with more motors.
- All codes use damped light mode. Damped light does regenerative braking, causing very fast motor retardation, and inherently also does active freewheeling.
- The code supports features to prevent sync loss. There are tunable parameters that can make the code run well even in the most demanding situations, although default settings will work excellently in normal operating environments.

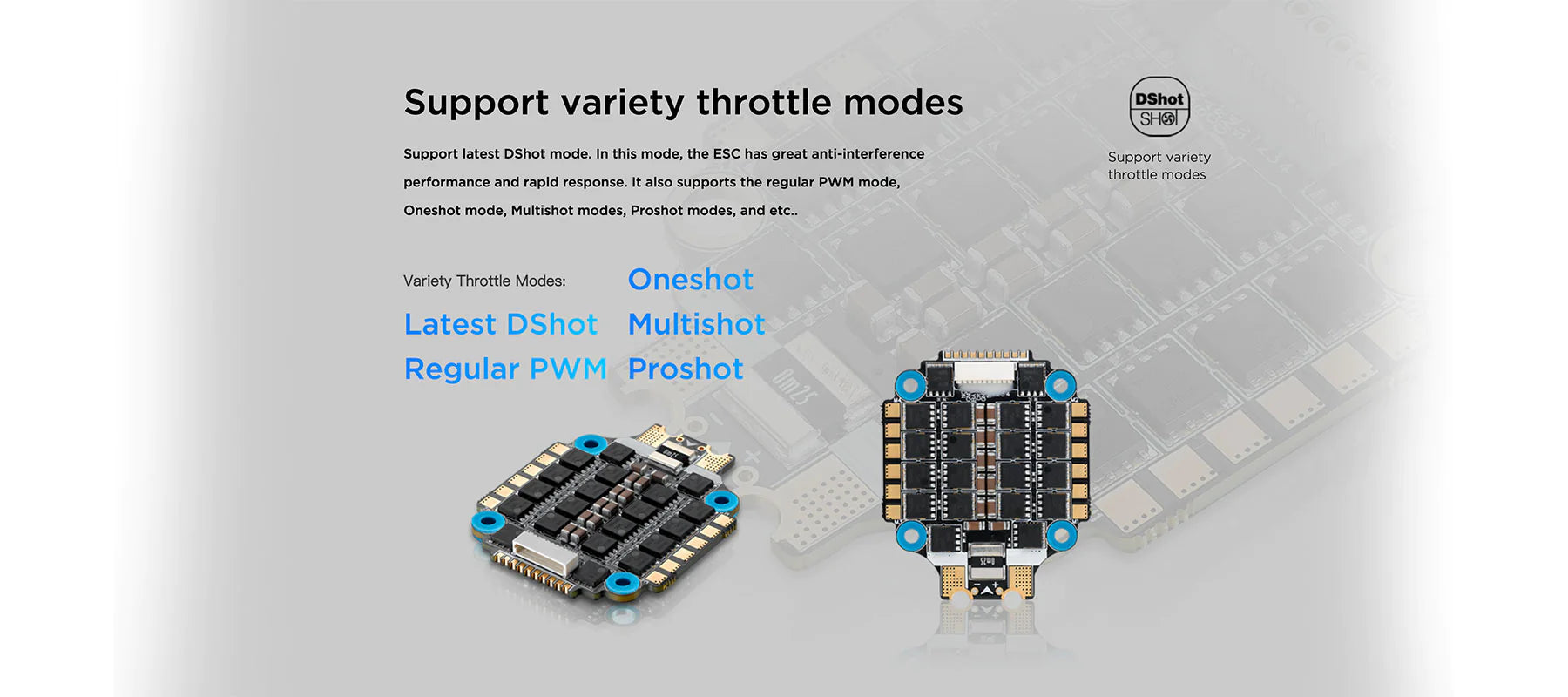

- The code supports regular 1-2ms pulse width input, as well as Oneshot125 (125-250us), Oneshot42 (41.7-83.3us), and Multishot (5-25us).
- Dshot signaling is supported at any rate up to at least Dshot1200. The input signal is automatically detected by the ESC upon power-up.
- The code also supports a beacon functionality, where the ESC will start beeping after a given time of zero throttles. This can be very useful for finding lost crafts.
Specifications:
- Continuous Current: 65Ax4
- Burst Current: 80Ax4
- BEC: [email protected]
- LiPo: 3-6S
- Weight: 15g
- Dimensions: 52x42x6.6mm
- Mounting: 30.5×30.5mm
- Applications: 130-300mm FPVs
- input wires: 12AWG-130mm factory installed (Red/Black)
- Output wires: Solder tabs
- Input Connectors: XT60(w/ Wires Soldered on)
- Out connectors: No
- Programmering: BLHeliSuite32
- Multi-supports: Supported: DEO, Stick programming, Throttle Range Calibration, Onshot125 / 42 modes, Dshot150/300/600/1200, Timing, Motor Rotation.
