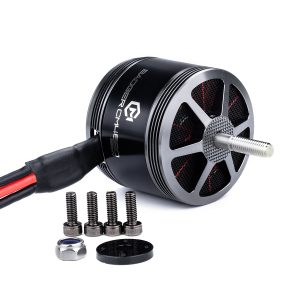

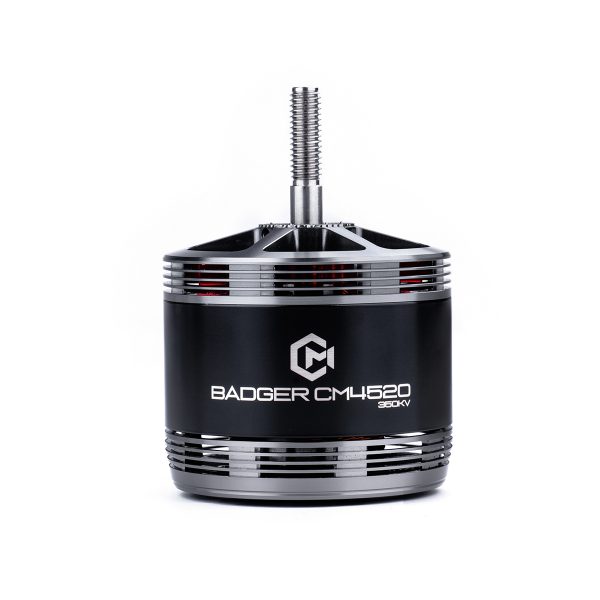

CM 4520 BADGER FPV Drone motor

Scroll to switch images

CM Series - Cinematic

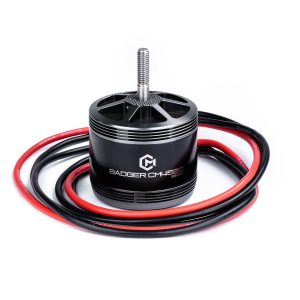

CM 4520 BADGER FPV Drone motor

5.0 · 1 reviews In stock

SKU: 0101DJ1474

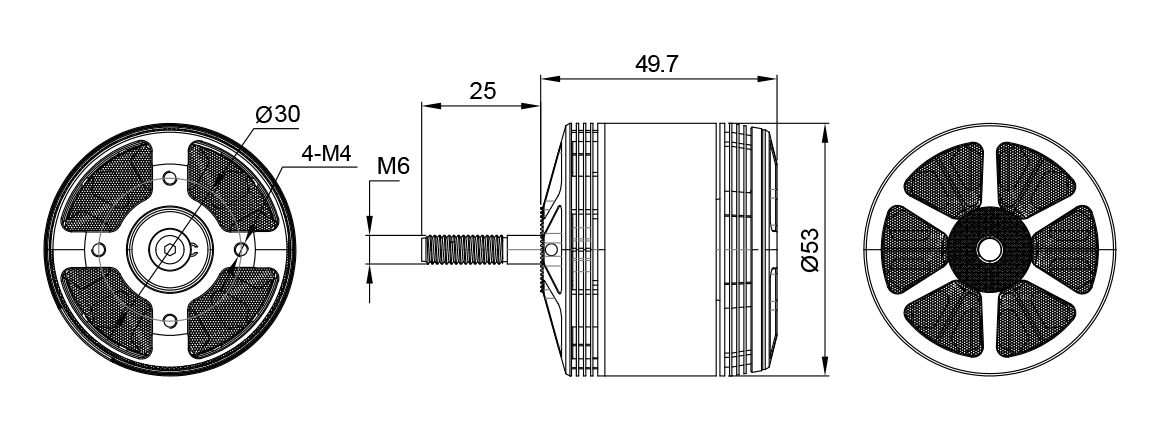

MAD BADGER CM4520 V1.0 FPV motor with 350KV option, 53 × 74.7 mm size, 6 mm shaft, M6 propeller nut and D:30 M4×4 mounting.

$87.00

KV OPTION

Volume quote from 50 pcs

Need OEM marking or custom winding?
Details

CM 4520 BADGER FPV Motor

The MAD BADGER CM4520 V1.0 is listed with a 350KV option, 53 × 74.7 mm size and 6 mm shaft for FPV propulsion.

Technical Specifications

KV 350KV
Motor size 53 × 74.7 mm

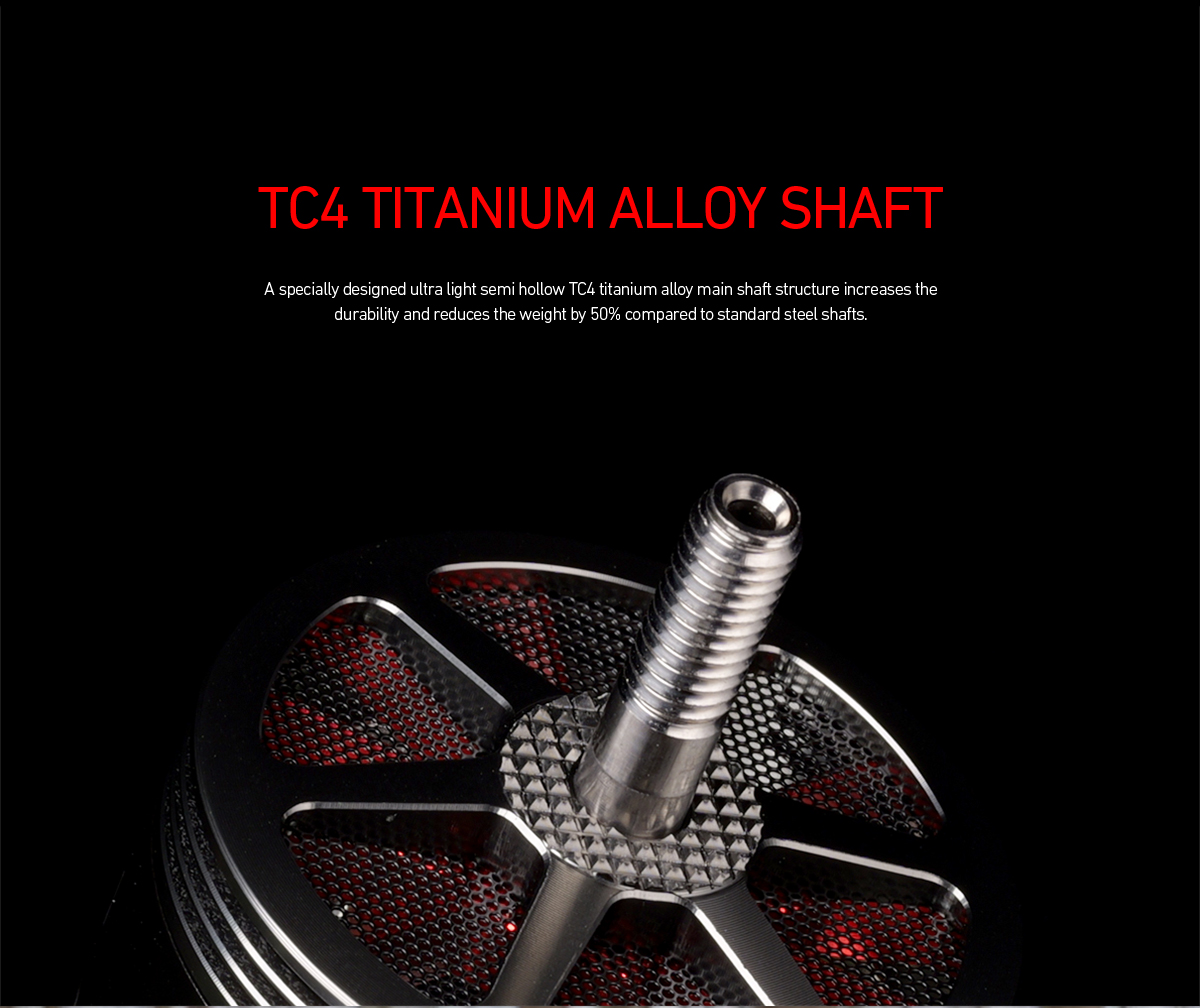

Shaft 6 mm

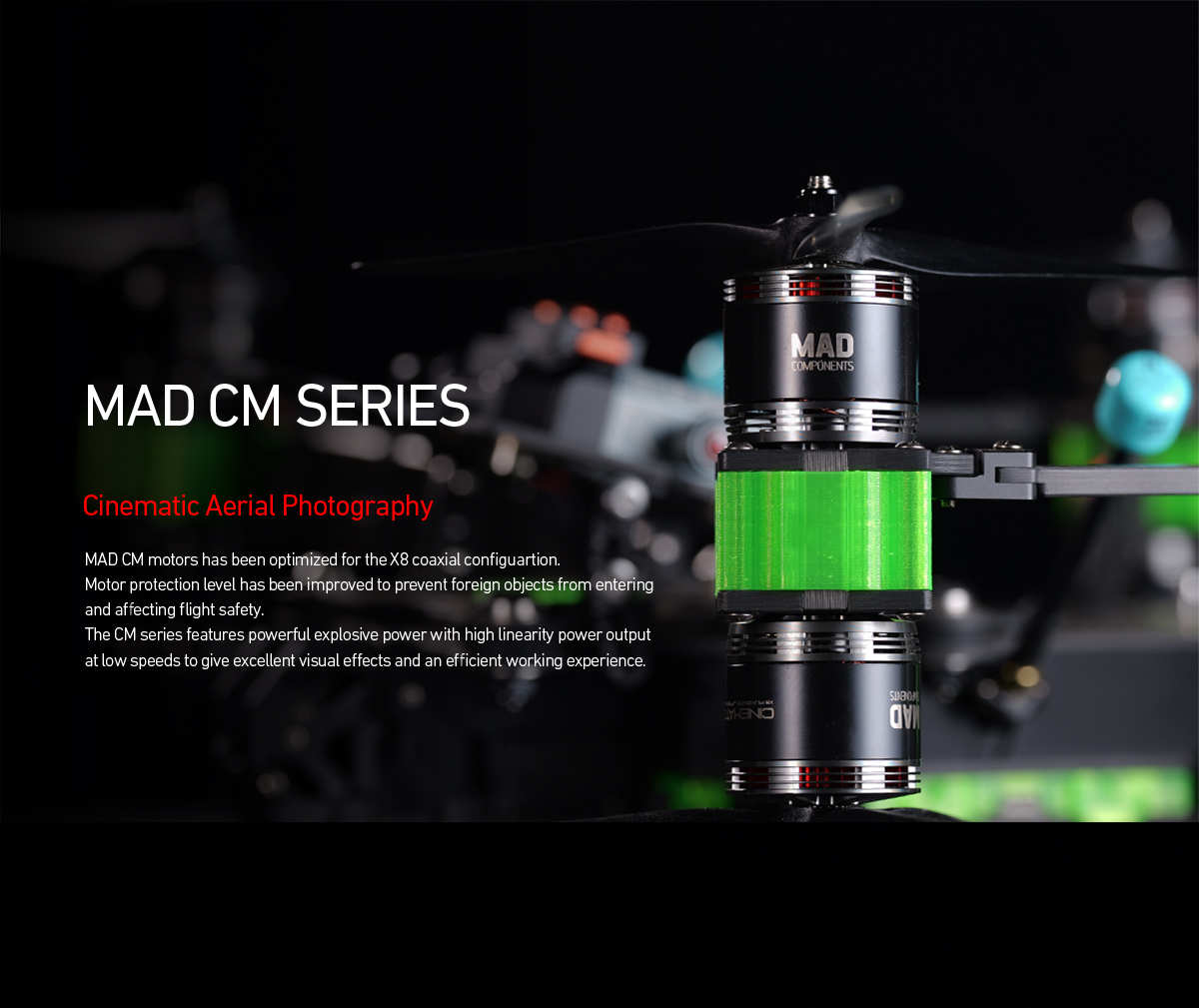

Installation X8 coaxial twin-propeller reference
Motor model MAD BADGER CM4520 V1.0
KV / nominal voltage 350KV / 6S
Motor size 53 × 74.7 mm
Maximum current 99.5 A
Maximum thrust 10.9 kg
Motor weight 383 g
Maximum power 4473 W
Rated output power 844 W
Internal resistance 39.9 mΩ

Selection and Compatibility

Confirm the X8 coaxial arrangement, propeller interface, controller, battery and frame clearance before ordering.

FAQ

Which installation is referenced? The product data references an X8 coaxial twin-propeller installation.

Request a Quote

Provide aircraft layout, propeller, battery, ESC and quantity for review.

Specifications

KV OPTION 350KV
Weight N/A
Product FAQ
What is the CM 4520 BADGER FPV Drone motor intended for?

This product is intended for UAV and multirotor integration where the listed model and configuration match the aircraft design. Confirm motor, ESC, battery, mounting, clearance and flight-test requirements before ordering.

How should I confirm compatibility for the CM 4520 BADGER FPV Drone motor?

Please provide the aircraft or propulsion-system model, required quantity, operating environment and installation details. Check the published product information against the manufacturer's operating range; do not select from the name alone.

Can the CM 4520 BADGER FPV Drone motor be considered for OEM procurement?

It can be evaluated for an OEM or fleet project when the specification matches the target aircraft. For a quotation, share the model, quantity, application, destination and packaging or documentation requirements so compatibility and production details can be confirmed.

Frequently bought together

Pair this item with the accessories buyers usually evaluate in the same quote.

Total $330.90

4 items selected

Application scenarios

Built for teams that need continuous thrust and clear configuration options before locking a volume SKU.

UAV Propulsion Integration

UAV Propulsion Integration

Conceptual application for integrating the CM 4520 BADGER FPV Drone motor into a compatible UAV propulsion system. Validate installation, loading, clearance and operating limits on the actual aircraft before deployment.

Professional UAV Platforms

Conceptual application for professional UAV development using the CM 4520 BADGER FPV Drone motor. Confirm system interfaces, payload requirements and environmental conditions through the integrator's design review and flight testing.

OEM and Fleet Evaluation

Conceptual application for an OEM or fleet evaluation of the CM 4520 BADGER FPV Drone motor. Final selection should follow aircraft-specific compatibility checks, procurement requirements and documented test procedures.
