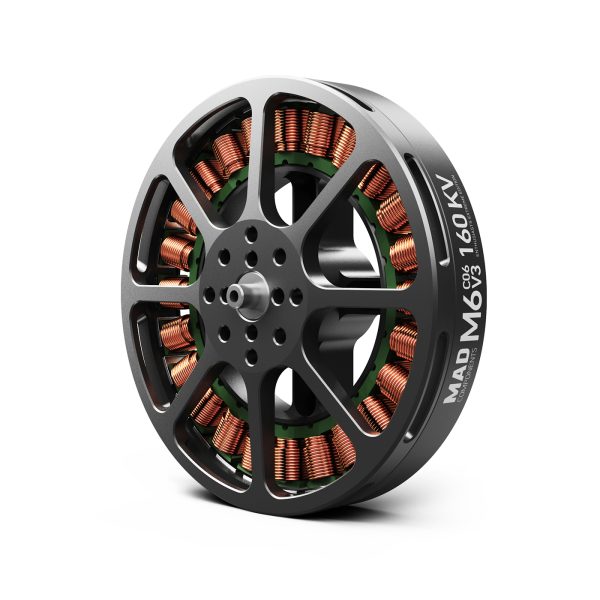

About M6C06 EEE V3
• A lightweight yet powerful motor optimized for 2–3 kg single-axis payloads.
• Designed for stable performance with 21–22 inch carbon fiber propellers.
• Ideal for mid-sized drones requiring a balance of thrust, efficiency, and weight.
Key Features:
✔ Supports dual voltage configurations: 320KV/6S and 160KV/12S.
✔ Delivers up to 5.8 kg thrust per axis with only 163g motor weight.
✔ Compatible with multiple ESCs including XROTOR Pro 60A, AMPX 60A, and FOC 60A14S.
Perfect for:
• Multirotor platforms with medium payload requirements.
• Aerial photography drones needing quiet, stable lift.
• Builders optimizing for both efficiency and flight endurance.
| Specification | |||||||||
| Motor Model | MAD M6C06 V3 EEE |
Number of pole pairs | 14 | ||||||
| Stator | Anticorrosive |
Varnished wire Degree | 180°C | ||||||

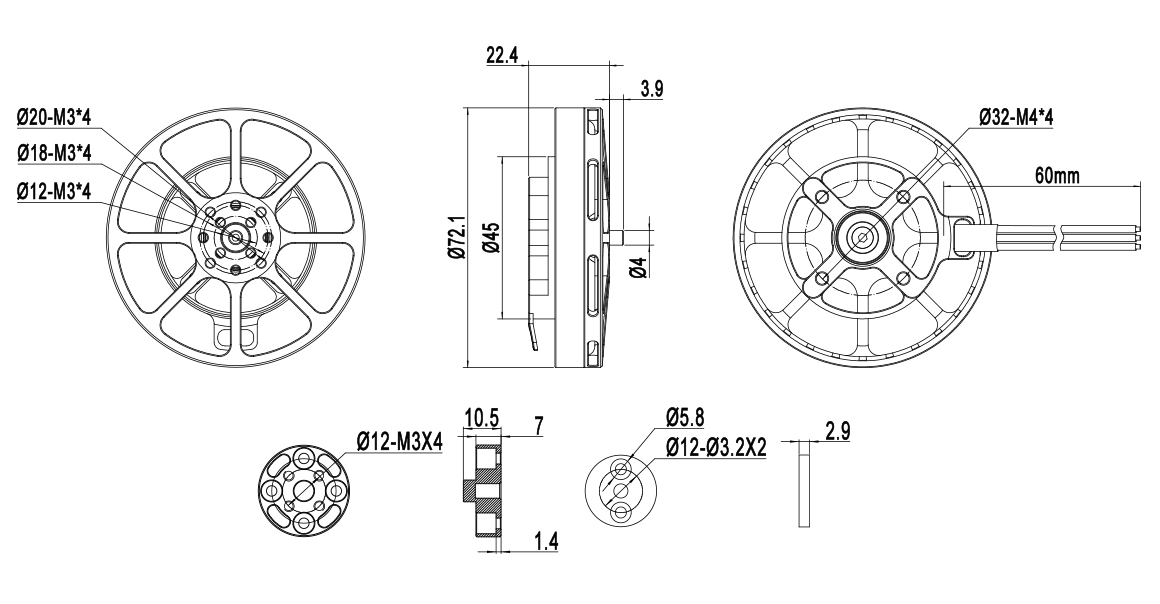

| Motor Size | D:72.1× 22.4 mm |
Magnet Degree | 150°C |
||||||
| Degree of Protection | Rain protection | Cable Length | 60 mm 16# Awg(Black) silicone |
||||||
| Centrifugal Heat Dissipation | Independent | Rotor Balance | ≤5 mg |
||||||
| Propeller Mounting Holes | D:12 M3×4,D:18 M3×4,D:20 M3×4 |
Motor Balance | ≤10 mg |
||||||
| Shaft Diameter | IN: 4 mm |
Motor Mounting Holes | D:32 M4×4 | ||||||
| Bearing | 696ZZ*2 |
Disruptive test | 500 V |
||||||

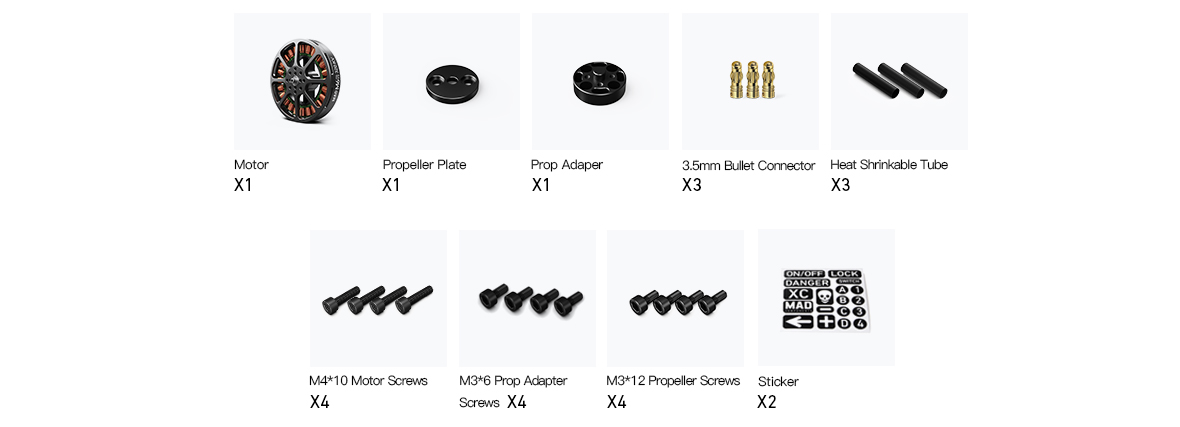

Accessories
