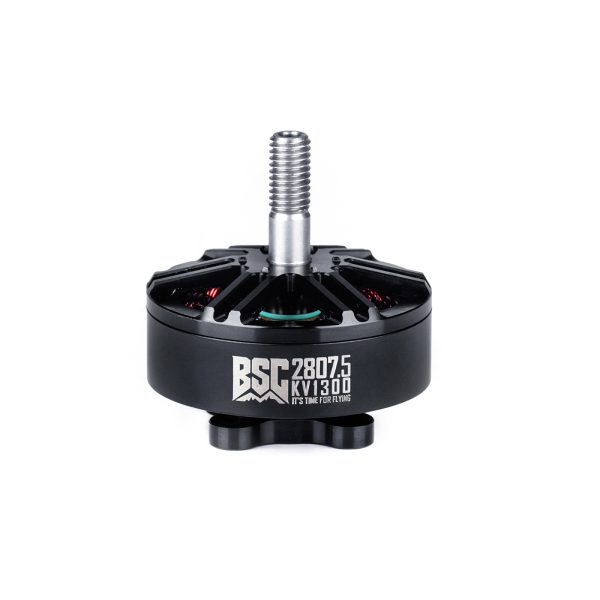

BSC 2807.5 FPV Drone Motor

Scroll to switch images

BSC Series - Basic

BSC 2807.5 FPV Drone Motor

5.0 · 1 reviews In stock

SKU: 0101DJ1739

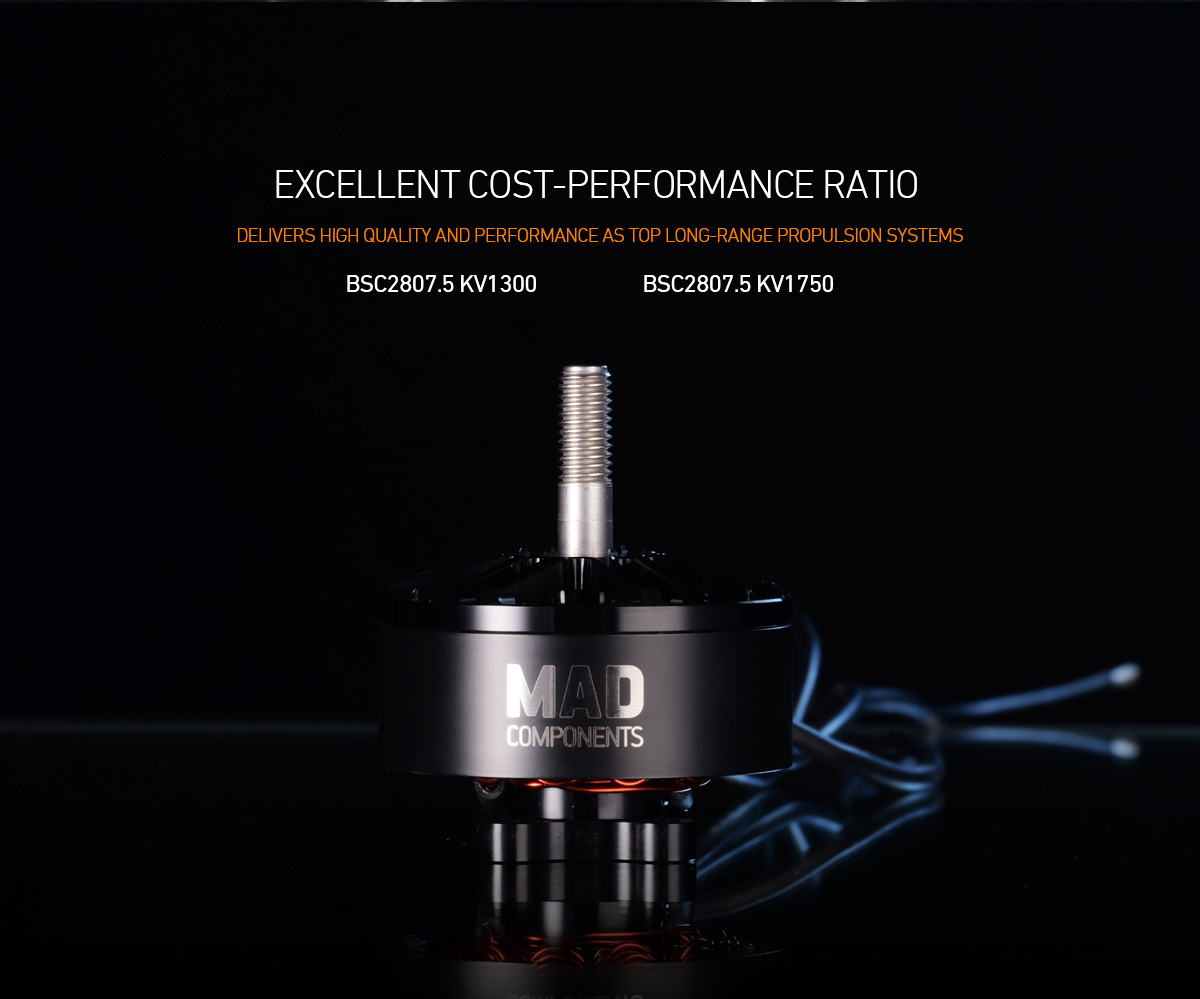

BSC 2807.5 FPV Drone Motor is designed for pilots seeking a lightweight yet powerful propulsion solution for 7-inch FPV and long-range drone builds. Featuring an optimized 2807.5 stator size, 12N14P electromagnetic design, and precision-balanced construction, it delivers smooth power output, efficient performance, and reliable durability for demanding FPV applications.

$23.50

KV OPTION

Volume quote from 50 pcs

Need OEM marking or custom winding?
Details

MAD BSC 2807.5 V1.0 FPV Motor

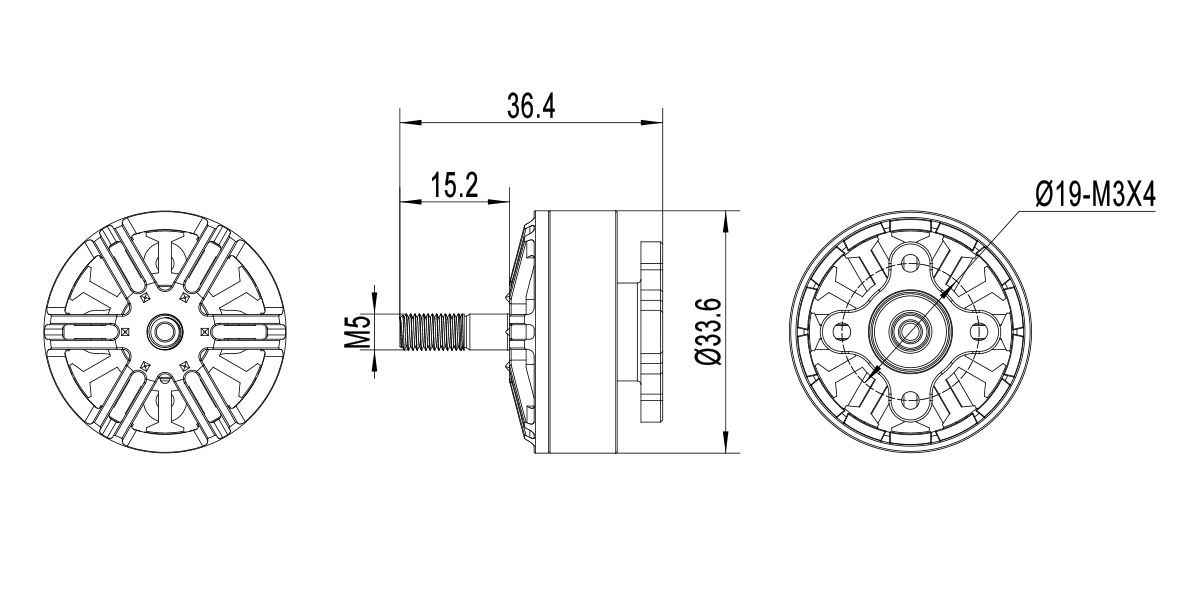

The BSC 2807.5 uses a 12N14P design with a 33.6 × 36.4mm body and 5mm shaft for 6–7 inch long-range FPV platforms.

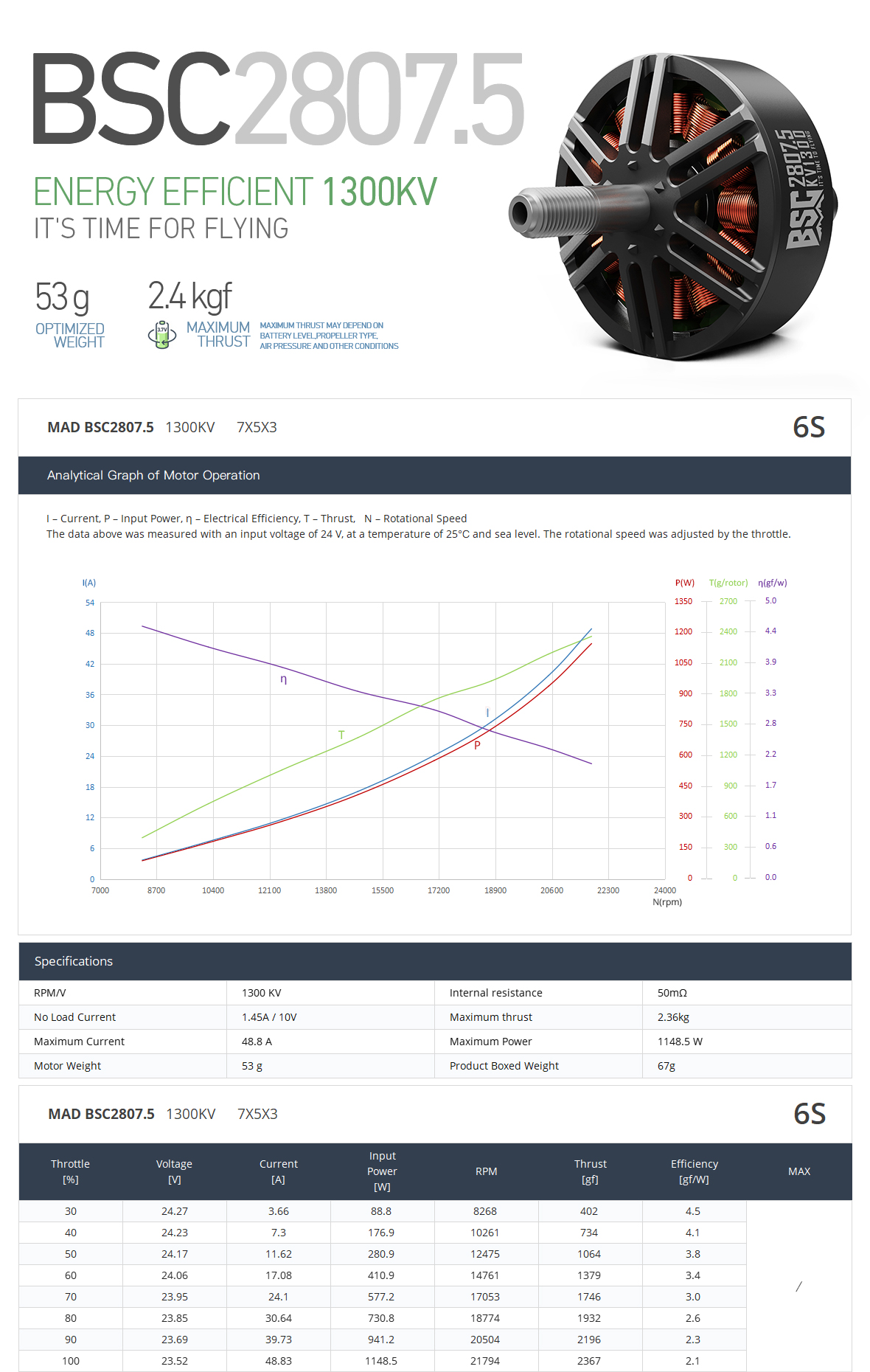

Technical Specifications

Model MAD BSC 2807.5 V1.0

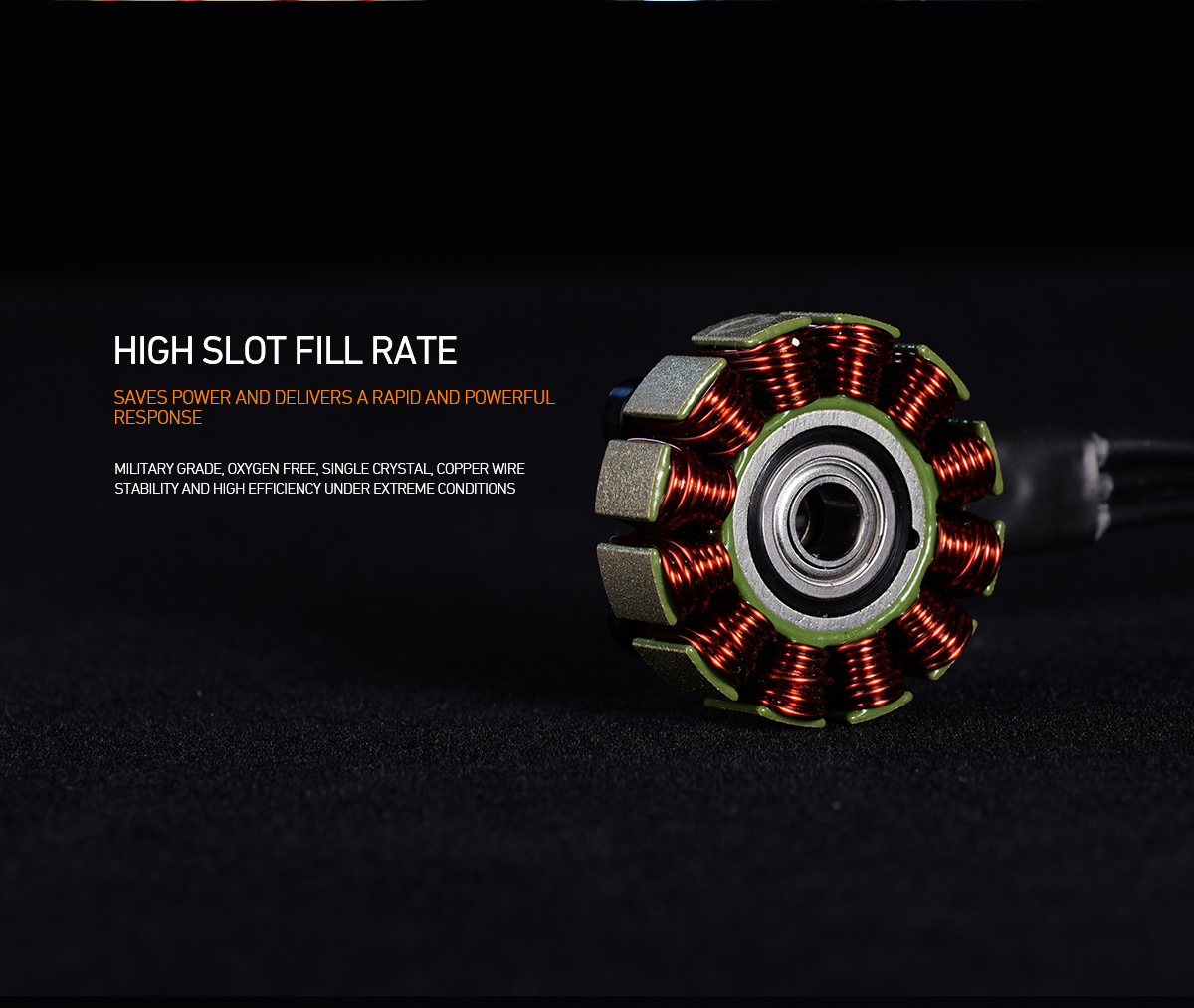

Slots / poles 12N14P
Motor size D:33.6 × 36.4mm
Rotor balance ≤5mg
Propeller mounting M5 nut
Motor mounting D:19 M3×4
Shaft diameter 5mm
Cable 250mm, 18 AWG black silicone wire
KV 1300KV
Phase resistance 50mΩ
No-load current 1.45A / 10V
Maximum thrust 2.4kg
Maximum current 48.8A
Rated output power 280W
Motor weight with cable 53g

Request a Quote

Send the KV, battery, propeller, ESC, frame and quantity for a quotation.

Specifications

KV OPTION 1300KV
Weight N/A
Product FAQ
What is the BSC 2807.5 FPV Drone Motor intended for?

This product is intended for UAV and multirotor integration where the listed model and configuration match the aircraft design. Confirm motor, ESC, battery, mounting, clearance and flight-test requirements before ordering.

How should I confirm compatibility for the BSC 2807.5 FPV Drone Motor?

Please provide the aircraft or propulsion-system model, required quantity, operating environment and installation details. Check the published product information against the manufacturer's operating range; do not select from the name alone.

Can the BSC 2807.5 FPV Drone Motor be considered for OEM procurement?

It can be evaluated for an OEM or fleet project when the specification matches the target aircraft. For a quotation, share the model, quantity, application, destination and packaging or documentation requirements so compatibility and production details can be confirmed.

Frequently bought together

Pair this item with the accessories buyers usually evaluate in the same quote.

Total $234.45

4 items selected

Application scenarios

Built for teams that need continuous thrust and clear configuration options before locking a volume SKU.

UAV Propulsion Integration

UAV Propulsion Integration

Conceptual application for integrating the BSC 2807.5 FPV Drone Motor into a compatible UAV propulsion system. Validate installation, loading, clearance and operating limits on the actual aircraft before deployment.

Professional UAV Platforms

Conceptual application for professional UAV development using the BSC 2807.5 FPV Drone Motor. Confirm system interfaces, payload requirements and environmental conditions through the integrator's design review and flight testing.

OEM and Fleet Evaluation

Conceptual application for an OEM or fleet evaluation of the BSC 2807.5 FPV Drone Motor. Final selection should follow aircraft-specific compatibility checks, procurement requirements and documented test procedures.

View all BSC Series - Basic

About REACHSKY

REACHSKY is a professional supplier of drone spare parts based in Changsha, China, with 12 years of industry experience. Our product range covers brushless motors, ESCs, propellers, drone batteries and related accessories. We have our own R&D team and factory for self-developed items, certified by ISO9001. Besides, we are the authorized exclusive distributor for several well-known manufacturers for North America, South America and Europe markets. Read more about REACHSKY.
