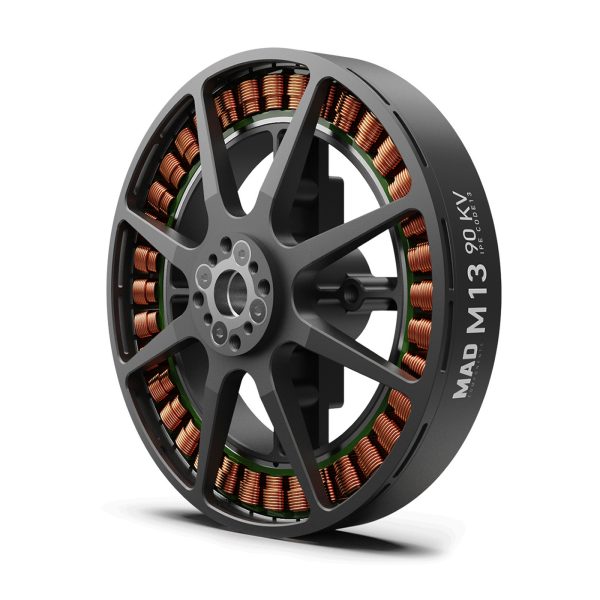

M13 EEE Drone Motor

Scroll to switch images

Drone Motors

M13 EEE Drone Motor

5.0 · 1 reviews In stock

SKU: 0101DJ1049

M series motors are the flagship motors specially designed for large-scale multi-rotor, electric paraglider, large agricultural tethered VTOL, UAV. Used for aerial photography, mapping, electrical paragliding, agricultural spraying, surveying or anything in between where professional industry level propulsion systems are required. This type of motor is made with industrial grade components .

$339.00

KV Option

Volume quote from 50 pcs

Need OEM marking or custom winding?
Details

About M13 EEE

Positioning:
• Heavy-lift motor optimized for 7–9 kg single-axis payloads with 36-inch carbon fiber propellers
• Engineered to maximize thrust-to-weight ratio for high-demand aerial applications
• Ideal for professional UAVs requiring high efficiency under 12S voltage

Key Features:
✔ Peak thrust up to 20.5 kg per axis
✔ Lightweight construction at only 615g
✔ Supports 12S voltage systems

Perfect for:
• Large multirotor drones with heavy payload requirements
• Industrial UAVs.
• Builders focused on maximizing power output without increasing motor weight.

Motor Data
Motor Model MAD M13 EEE V1.0 Number of pole pairs 21
Stator Anticorrosive Varnished wire Degree 220°C

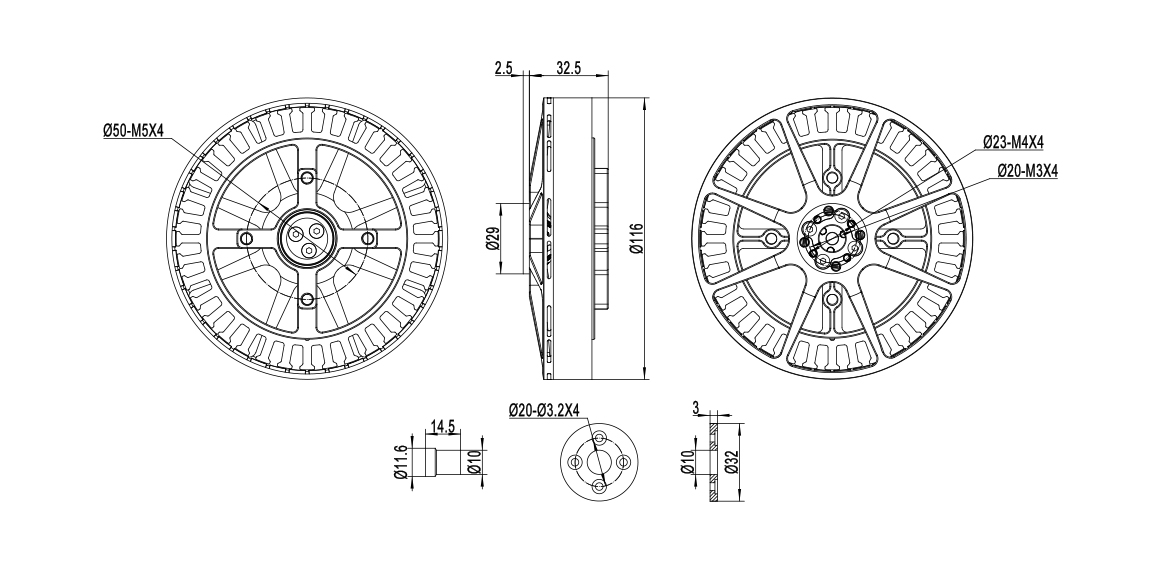

Motor Size D:116 × 35 mm Magnet Degree 180°C
Degree of Protection Rain protection Cable Length 150 mm (extended Enameled wires）
Centrifugal Heat Dissipation Independent Rotor Balance ≤10 mg
Propeller Mounting Holes D:20 M3×4, D:23 M4×4 Motor Balance ≤20 mg
Shaft Diameter IN: 15 mm Motor Mounting Holes D:50 M5×4
Bearing 6802ZZ*2 Disruptive test 500 V

Specifications

KV Option 90KV
Weight N/A
Product FAQ
Which platforms is this SKU built for?

It targets industrial and distributor UAV programs that need clear specs, thermal margin, and repeatable production builds. Share duty cycle and AUW so we confirm the fit.

How do I choose the right configuration?

Match KV / config to pack voltage, prop diameter/pitch, and continuous current. Share duty cycle and AUW in the inquiry so we confirm the band before volume pricing.

What is the MOQ and when should I use Inquiry instead of Add to Cart?

Sample buys can use Add to Cart. Volume quote starts from 50 pcs on this SKU. Use Inquiry for dealer pricing, OEM marking, mixed lots, or when lead time and packing still need confirmation.

Can you support OEM marking and matched propulsion sets?

Yes. Logo, label language, wire length, and packing notes can be set early. We also help pair ESC class and prop size so sample and mass-production paths stay aligned.

Frequently bought together

Pair this item with the accessories buyers usually evaluate in the same quote.

Total $1,999.50

4 items selected

Application scenarios

Built for teams that need continuous thrust and clear configuration options before locking a volume SKU.

Heavy-lift multirotor

Cargo and industrial airframes that run long duty cycles. Pair KV with prop load and continuous current before sample evaluation.

Manned / hybrid platforms

Manned and hybrid propulsion stacks where thermal margin and repeatable production builds matter more than hobby peak thrust.

Cinema & survey fleets

Multi-airframe fleets that restock the same motor family across seasons. Volume inquiry covers dealer pricing and staged ship windows.

OEM private-label programs

Marking, wire length, and packing language for partners that move from evaluation lots into annual forecasts.
