Antimatter M6C15 IPE V3 Drone Motor

Scroll to switch images

AN M6 Series

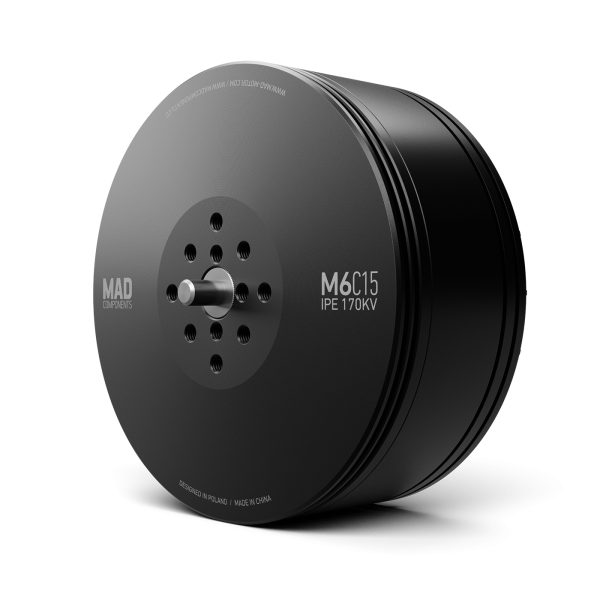

Antimatter M6C15 IPE V3 Drone Motor

4.7 · 3 reviews In stock

SKU: 0101DJ0644

Designed for dones with a single axis-load 3kg-5kg thrust. MAX thrust 12kg. Supports 6S-12S voltage.

$159.00

KV Option

Volume quote from 50 pcs

Need OEM marking or custom winding?
Details

About M6C15 IPE V3.0

• A flagship motor in the ANTIMATTER series for 21–24 inch propellers
• Designed for 3–5 kg single-axis payloads, supporting 6S–12S voltage
• Built for long-endurance missions such as aerial cinematography, mapping, and surveying

Key Features:
✔ Up to 12 kg thrust per axis with a 340g motor weight
✔ Aerospace-grade aluminum housing for structural strength and flight safety
✔ Simulated magnetic design for low energy consumption and high efficiency
✔ Premium imported bearings for stable rotation and impact resistance
✔ High-temperature-resistant curved magnets for reliable, long-term performance

Perfect for:
• Professional drones in aerial imaging, mapping, and industrial surveying
• Builders needing reliable, high-thrust motors for endurance flights

Motor Data
Motor Model MAD M6C12 IPE V3.0 Number of pole pairs 14
Stator Anticorrosive Varnished wire Degree 180°C
Motor Size D:72 × 35.4 mm Magnet Degree 150°C
Degree of Protection IP45 Cable Length 150 mm 16# Awg(Black) silicone
Centrifugal Heat Dissipation YES Rotor Balance ≤5 mg
Propeller Mounting Holes D:12 M3×4, 18 M3×4, 22 M3×4 Motor Balance ≤10 mg
Shaft Diameter IN: 6 mm Motor Mounting Holes D:25 M3×4
Bearing 696ZZ *2 Disruptive test 500 V

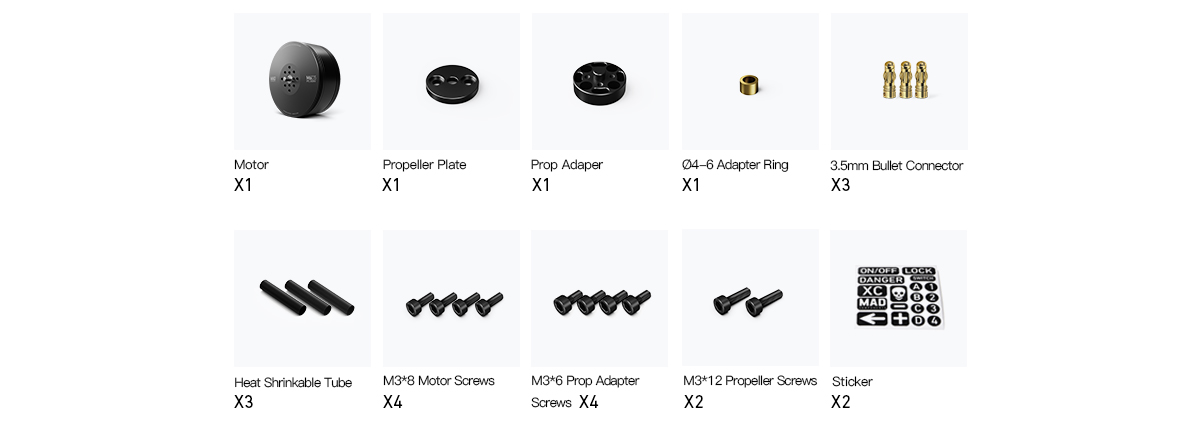

Accessories

Specifications

KV Option 170KV / 330KV
Weight N/A
Product FAQ
Which platforms is this SKU built for?

It targets industrial and distributor UAV programs that need clear specs, thermal margin, and repeatable production builds. Share duty cycle and AUW so we confirm the fit.

How do I choose the right configuration?

Match KV / config to pack voltage, prop diameter/pitch, and continuous current. Share duty cycle and AUW in the inquiry so we confirm the band before volume pricing.

What is the MOQ and when should I use Inquiry instead of Add to Cart?

Sample buys can use Add to Cart. Volume quote starts from 50 pcs on this SKU. Use Inquiry for dealer pricing, OEM marking, mixed lots, or when lead time and packing still need confirmation.

Can you support OEM marking and matched propulsion sets?

Yes. Logo, label language, wire length, and packing notes can be set early. We also help pair ESC class and prop size so sample and mass-production paths stay aligned.

Frequently bought together

Pair this item with the accessories buyers usually evaluate in the same quote.

Total $5,253.90

4 items selected

Application scenarios

Built for teams that need continuous thrust and clear configuration options before locking a volume SKU.

Heavy-lift multirotor

Cargo and industrial airframes that run long duty cycles. Pair KV with prop load and continuous current before sample evaluation.

Manned / hybrid platforms

Manned and hybrid propulsion stacks where thermal margin and repeatable production builds matter more than hobby peak thrust.

Cinema & survey fleets

Multi-airframe fleets that restock the same motor family across seasons. Volume inquiry covers dealer pricing and staged ship windows.

OEM private-label programs

Marking, wire length, and packing language for partners that move from evaluation lots into annual forecasts.
