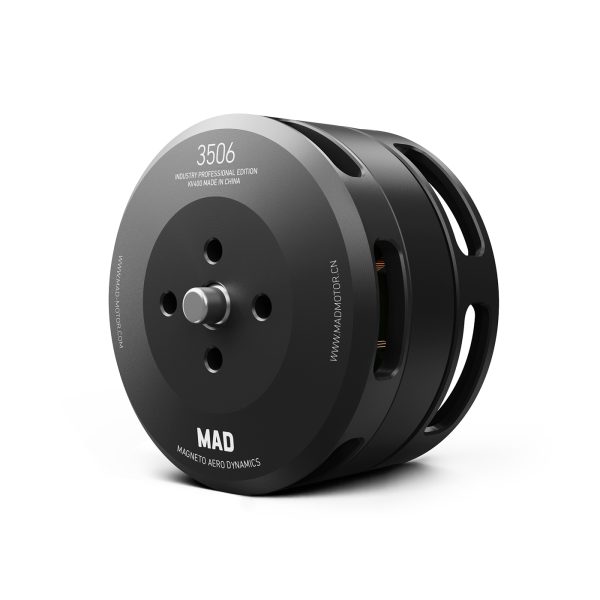

3506 IPE Drone Motor Overview
The MAD 3506 IPE V1.0 is listed for 320–720 g single-rotor payloads and 11–14 inch carbon-fiber propellers. Published maximum thrust is 1,600 g per motor.
Technical Specifications
| KV options | 400KV / 460KV / 650KV |
|---|---|

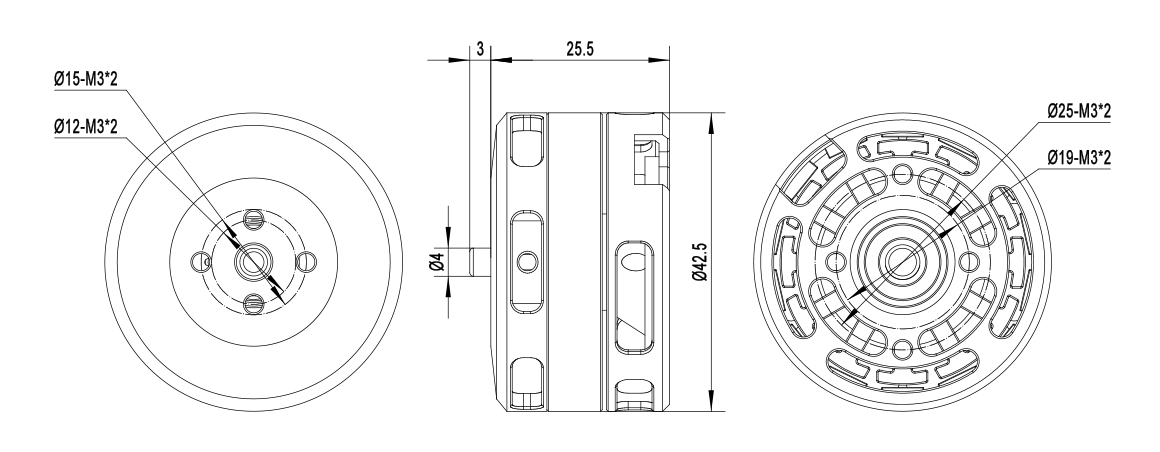

| Motor size | D42.5 × 28.5 mm |
| Weight | 87.3 g |
| Protection | IP35 |
| Shaft | 4 mm |
| Mounting | D19 M3×2; D25 M3×2 |
| Propeller mounting | D12 M3×2; D15 M3×2 |
| Maximum thrust | 1,600 g per motor |
Selection and Compatibility
Select the KV version only after checking battery voltage, propeller size and ESC limits. The published 11–14 inch propeller range and 320–720 g payload range support payload multirotor design checks.
FAQ
What is the difference between this and 3506 EEE? The IPE version is listed at 87.3 g with IP35 protection and D42.5 × 28.5 mm dimensions; verify the final system configuration before ordering.
Request a Quote
Send KV, battery, propeller, ESC and quantity requirements for a compatibility review.
