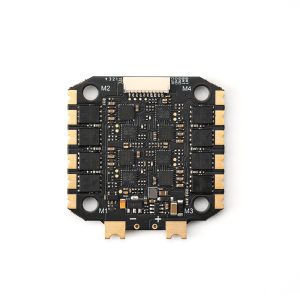

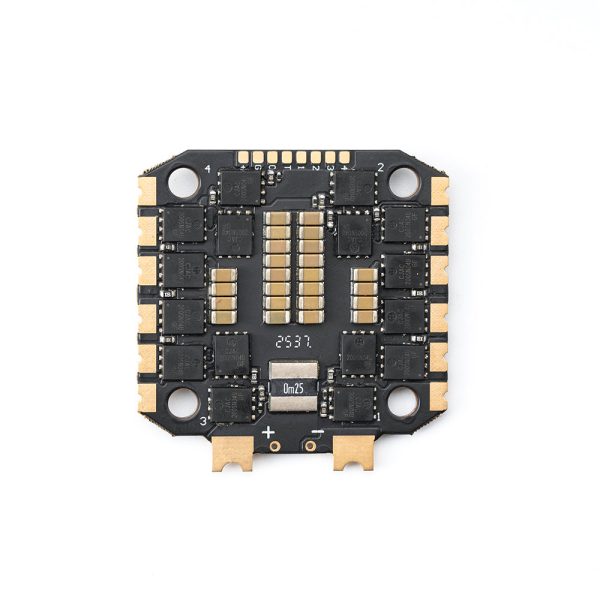

MAD PULSAR BL-32 8S 70A 4IN1 ESC

Scroll to switch images

FPV electronics

MAD PULSAR BL-32 8S 70A 4IN1 ESC

5.0 · 1 reviews In stock

SKU: 0102DT0513

MAD PULSAR BL-32 8S 70A 4-in-1 ESC for matched FPV or UAV electronics integration. Confirm configuration and limits before use.

$69.00

Volume quote from 50 pcs

Need OEM marking or custom winding?
Details

MAD PULSAR BL-32 8S 70A 4-in-1 ESC

Four-channel ESC for 3–8S LiPo FPV systems, with 70A × 4 continuous and 80A peak current for 10 seconds.

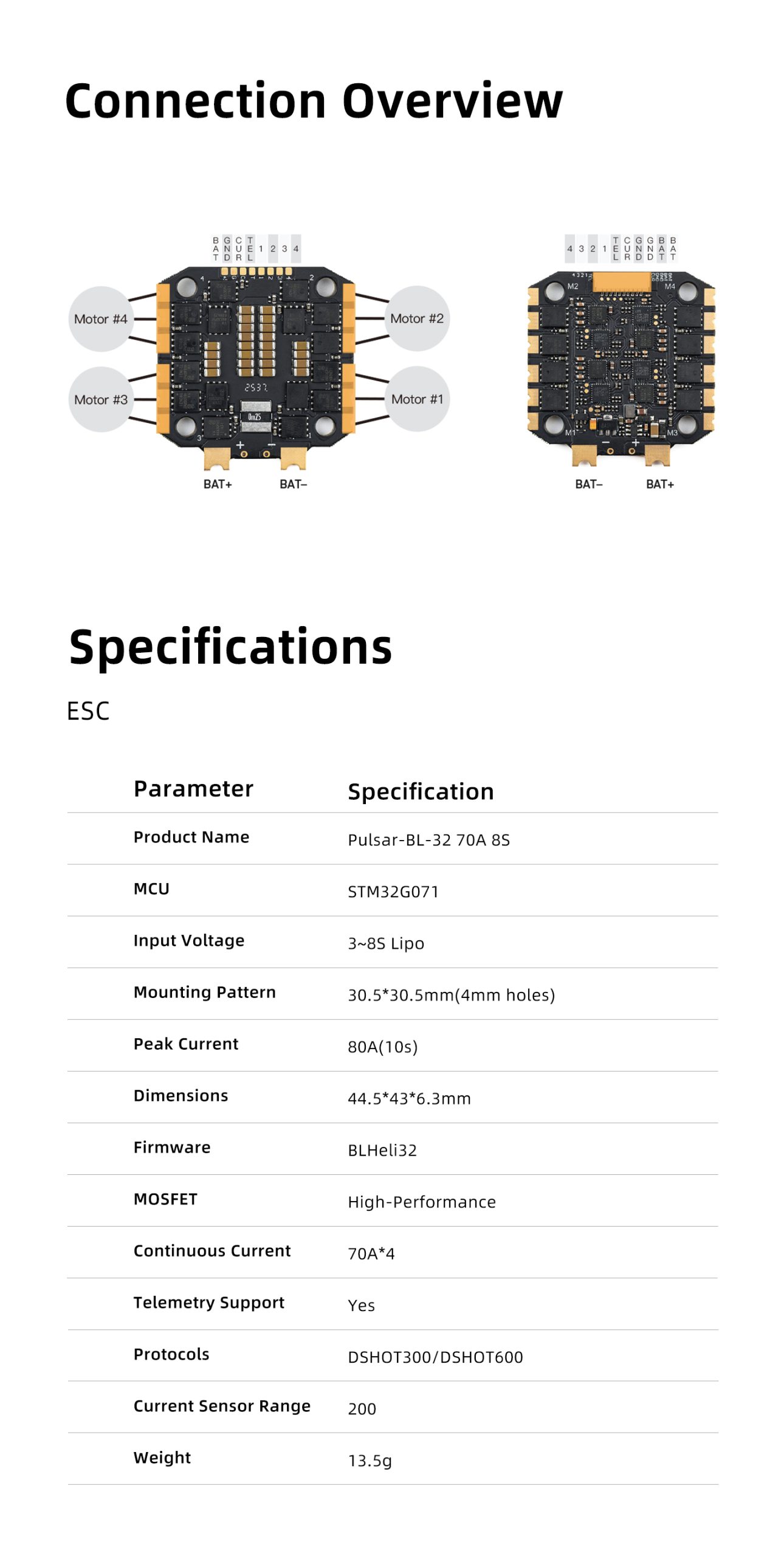

Technical Specifications

Model Pulsar-BL-32 70A 8S

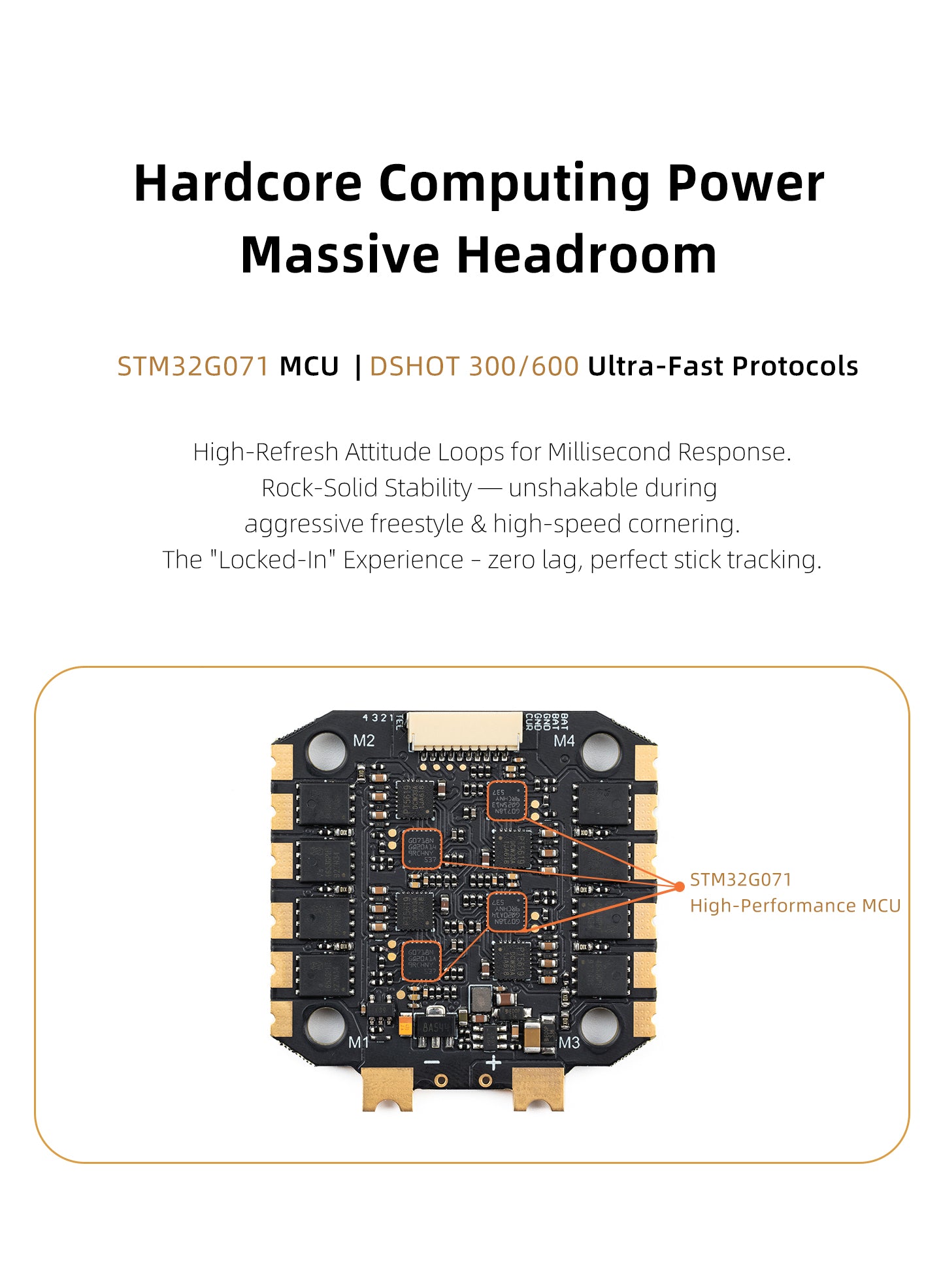

MCU STM32G071
Firmware BLHeli32

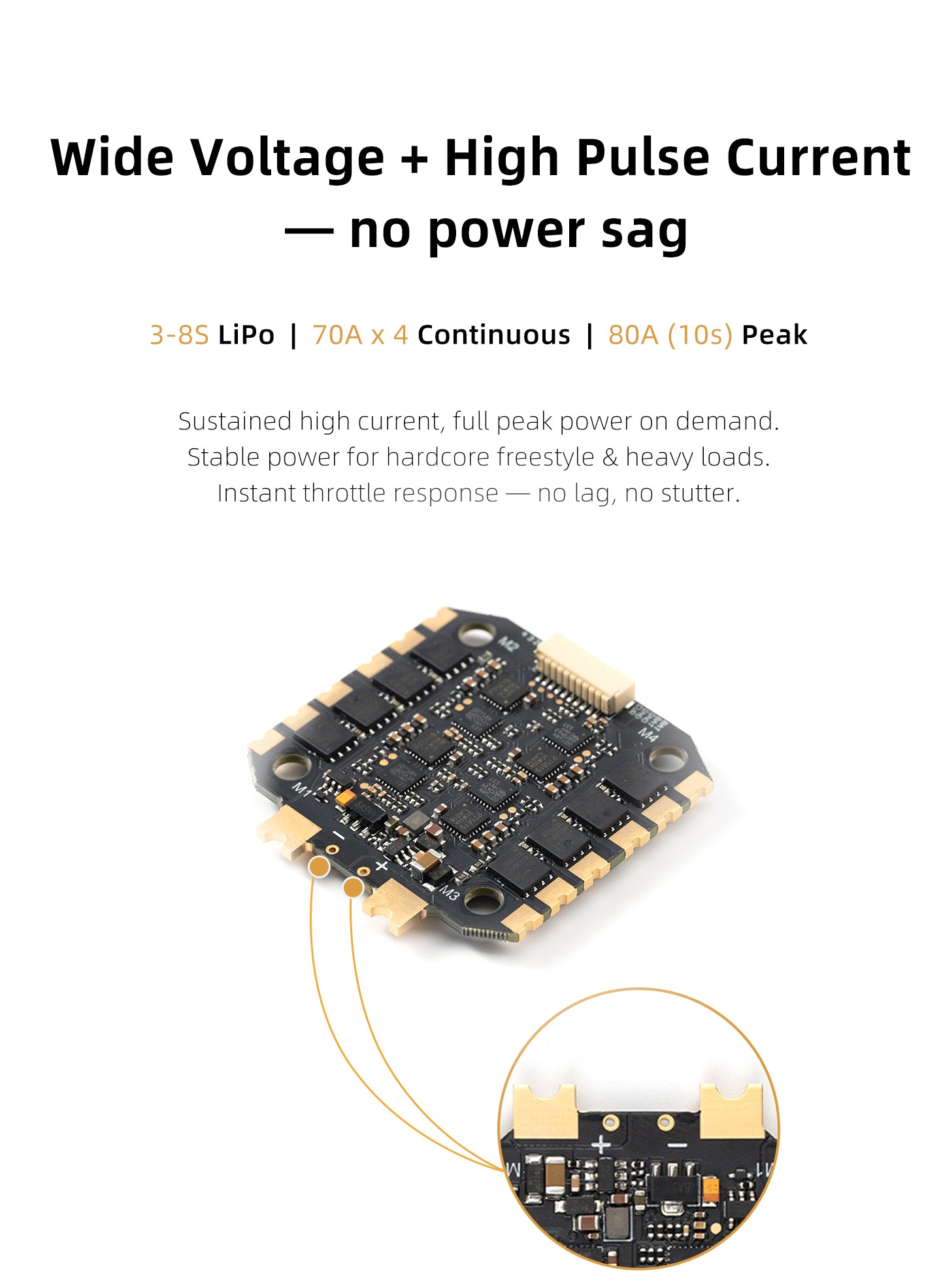

Input 3–8S LiPo
Continuous current 70A × 4
Peak current 80A for 10 seconds
Telemetry Yes

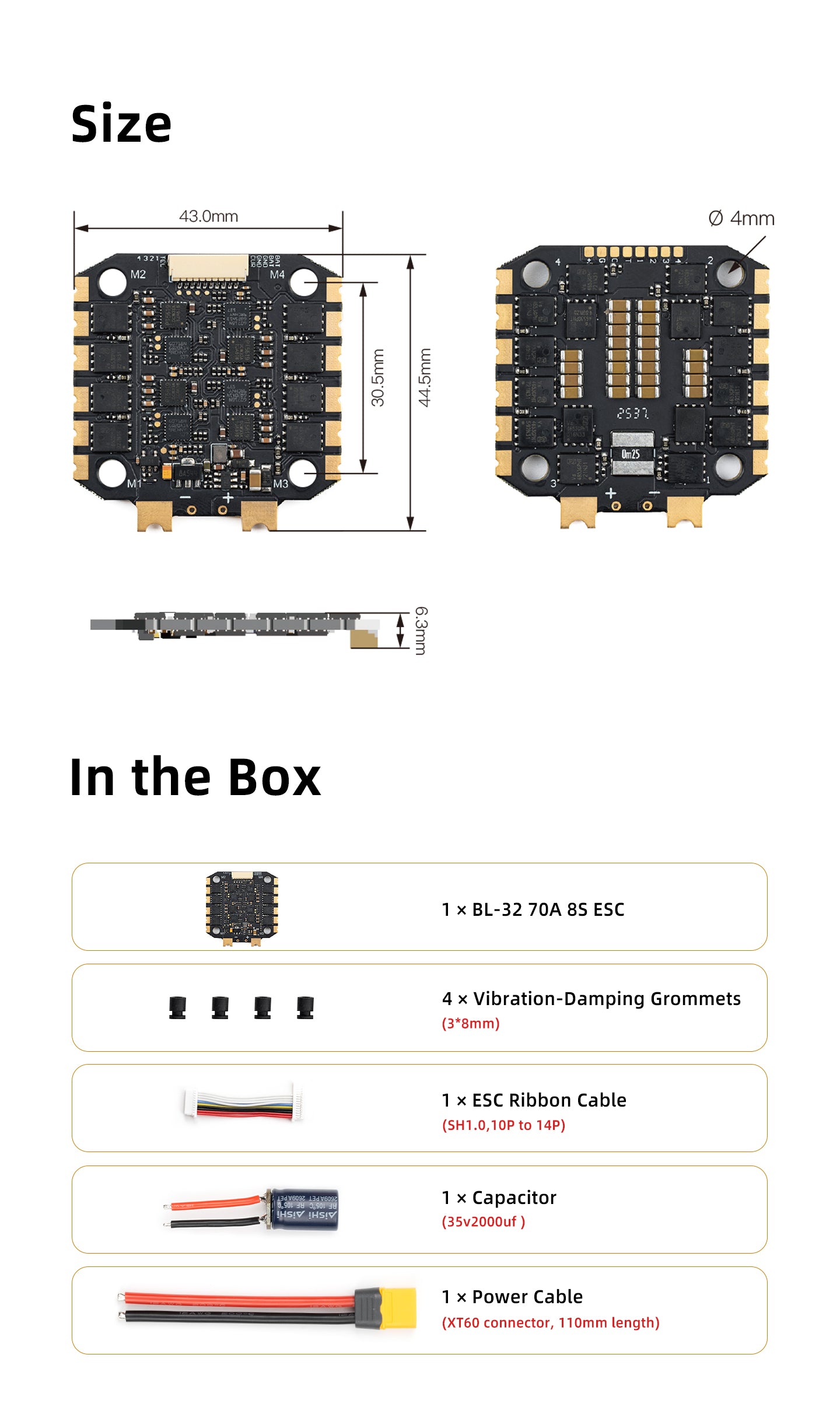

Mounting 30.5 × 30.5mm; 4mm holes
Protocol DSHOT300/600
Current sensor range 200
Dimensions 44.5 × 43 × 6.3mm
Weight 13.5g

Request a Quote

Send battery cell count, motor, controller, mounting requirement, quantity and configuration for quotation.

Product FAQ
What is the MAD PULSAR BL-32 8S 70A 4IN1 ESC intended for?

This product is intended for UAV and multirotor integration where the listed model and configuration match the aircraft design. Confirm motor, ESC, battery, mounting, clearance and flight-test requirements before ordering.

How should I confirm compatibility for the MAD PULSAR BL-32 8S 70A 4IN1 ESC?

Please provide the aircraft or propulsion-system model, required quantity, operating environment and installation details. Check the published product information against the manufacturer's operating range; do not select from the name alone.

Can the MAD PULSAR BL-32 8S 70A 4IN1 ESC be considered for OEM procurement?

It can be evaluated for an OEM or fleet project when the specification matches the target aircraft. For a quotation, share the model, quantity, application, destination and packaging or documentation requirements so compatibility and production details can be confirmed.
