FPV electronics
SKU: 0102DT0536

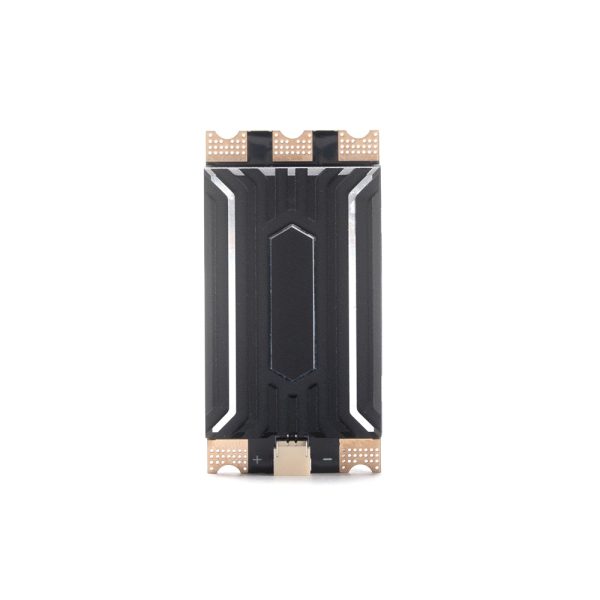

MAD PULSAR BL-S 8S 100A Single for matched propulsion or FPV system integration. Confirm configuration and limits before use.
$69.00
Volume quote from 50 pcs

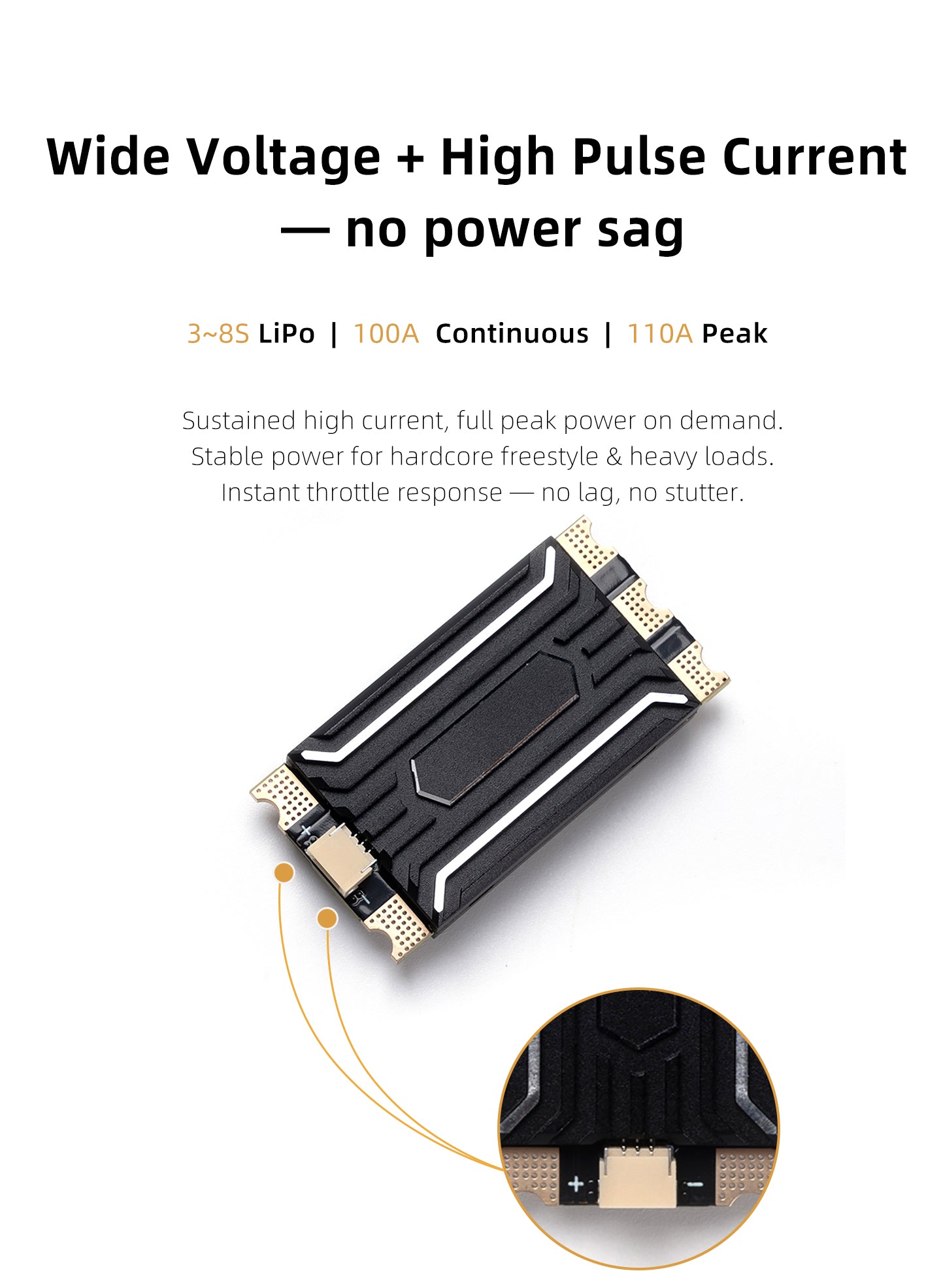

Need OEM marking or custom winding?Single ESC for 3–8S LiPo FPV systems, with 100A continuous and 110A peak current.

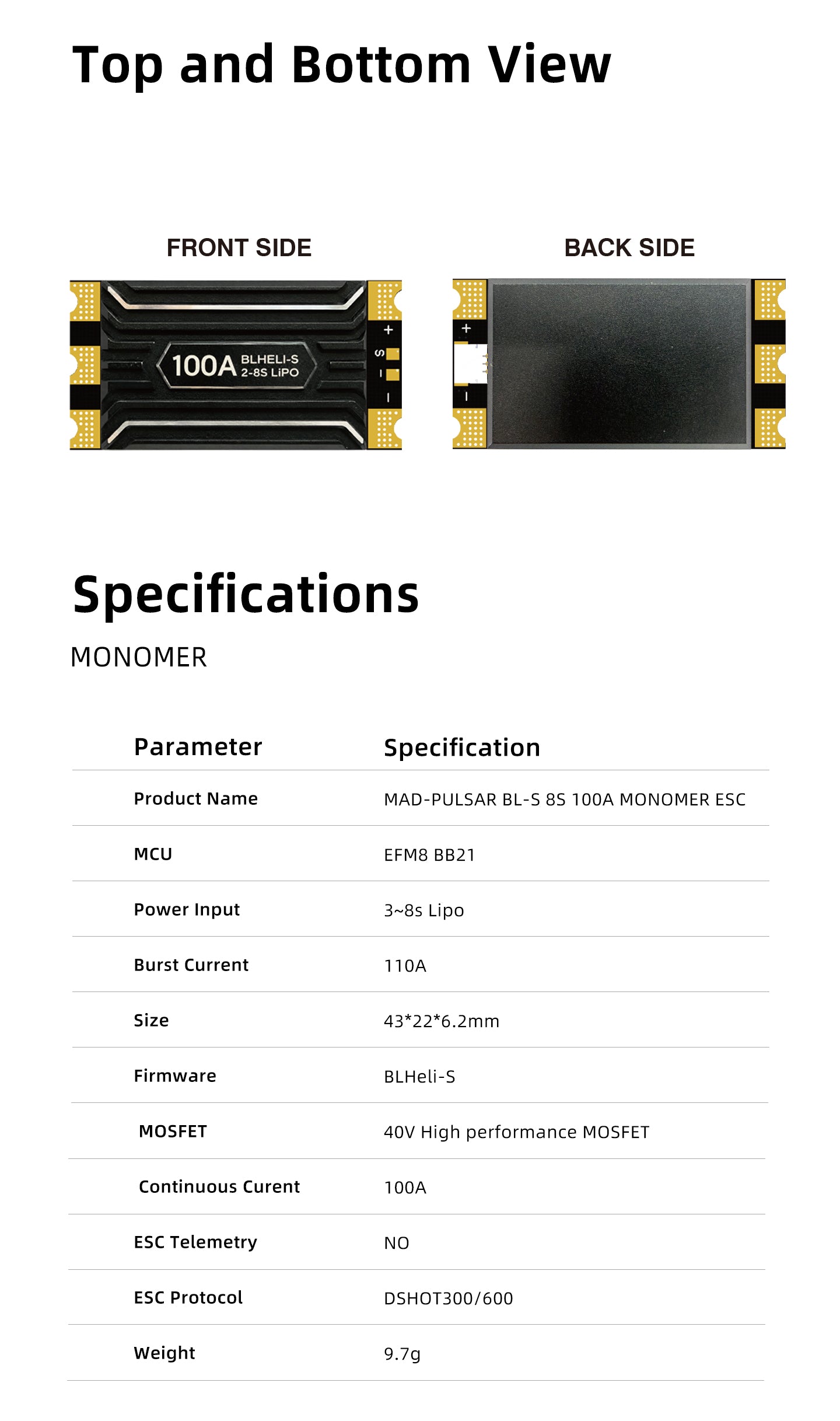

| Model | Pulsar-BL-S 8S 100A Single |
|---|---|
| MCU | EFM8 BB21 |
| Firmware | BLHeli-S |
| MOSFET | 40V high-performance MOSFET |
| Input | 3–8S LiPo |
| Continuous current | 100A |
| Peak current | 110A |
| Telemetry | No |
| Protocol | DSHOT300/600 |

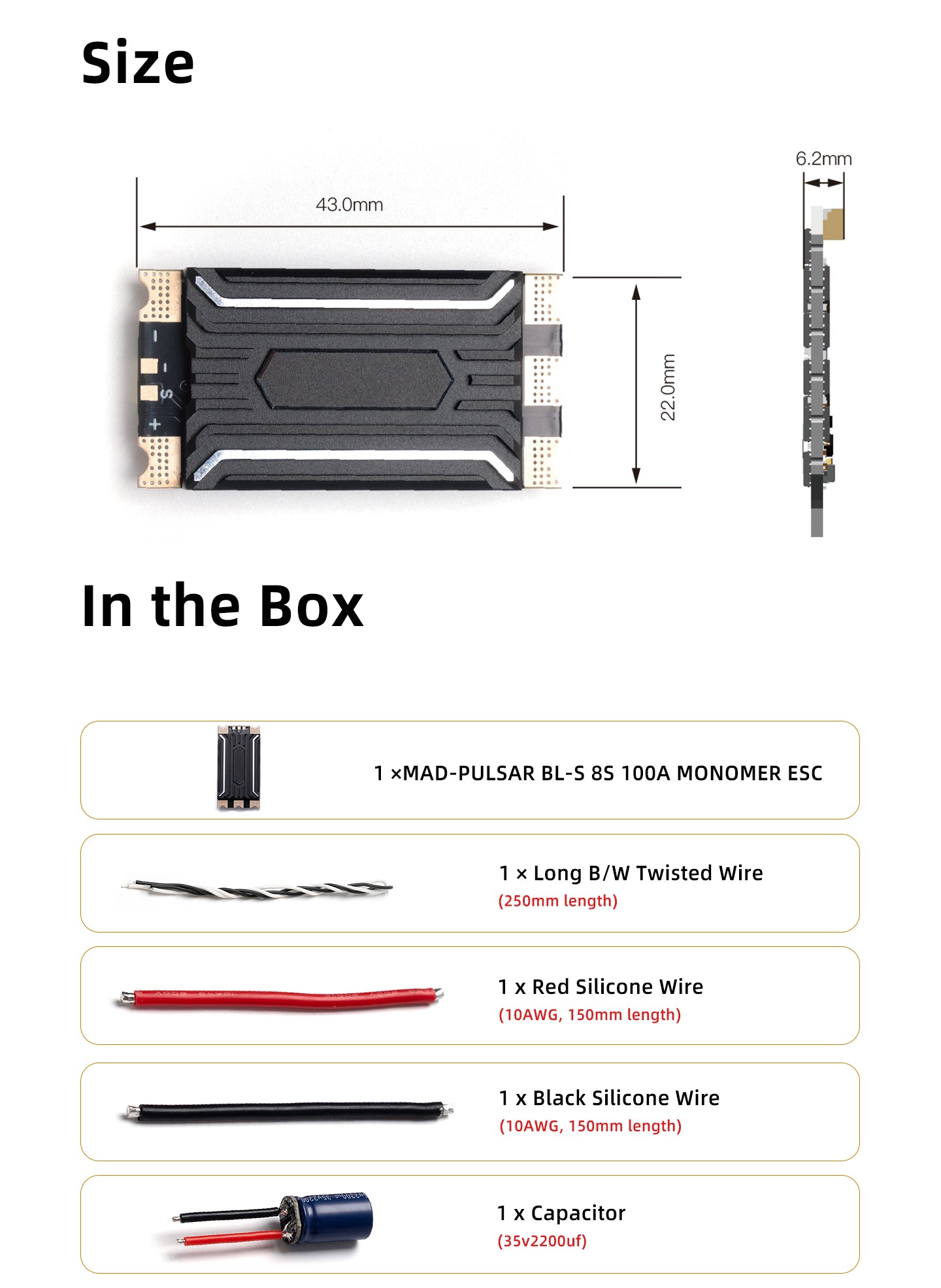

| Dimensions | 43 × 22 × 6.2mm |
| Weight | 9.7g |
Send battery cell count, motor, controller, quantity and configuration for quotation.
This product is intended for UAV and multirotor integration where the listed model and configuration match the aircraft design. Confirm motor, ESC, battery, mounting, clearance and flight-test requirements before ordering.
Please provide the aircraft or propulsion-system model, required quantity, operating environment and installation details. Check the published product information against the manufacturer's operating range; do not select from the name alone.
It can be evaluated for an OEM or fleet project when the specification matches the target aircraft. For a quotation, share the model, quantity, application, destination and packaging or documentation requirements so compatibility and production details can be confirmed.
Pair this item with the accessories buyers usually evaluate in the same quote.
Total $284.00
4 items selected
Built for teams that need continuous thrust and clear configuration options before locking a volume SKU.
Conceptual application for integrating the MAD PULSAR BL-S 8S 100A Single into a compatible UAV propulsion system. Validate installation, loading, clearance and operating limits on the actual aircraft before deployment.
Conceptual application for professional UAV development using the MAD PULSAR BL-S 8S 100A Single. Confirm system interfaces, payload requirements and environmental conditions through the integrator's design review and flight testing.
Conceptual application for an OEM or fleet evaluation of the MAD PULSAR BL-S 8S 100A Single. Final selection should follow aircraft-specific compatibility checks, procurement requirements and documented test procedures.
REACHSKY is a professional supplier of drone spare parts based in Changsha, China, with 12 years of industry experience. Our product range covers brushless motors, ESCs, propellers, drone batteries and related accessories. We have our own R&D team and factory for self-developed items, certified by ISO9001. Besides, we are the authorized exclusive distributor for several well-known manufacturers for North America, South America and Europe markets. Read more about REACHSKY.
Product review
Reviews are limited to customers who purchased this product. Sign in with the account used for your order.
Verified Purchase
Configured for our 8S pack. Current limiting behaved as set on climb tests.
1 person found this helpful
Verified Purchase
Enclosure is a bit bulky — check arm clearance. Once mounted, solid.
