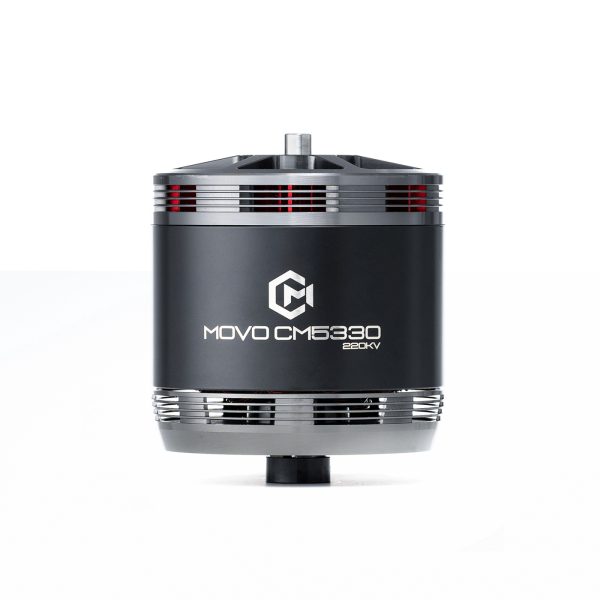

CM5330 MOVO FPV Motor

Scroll to switch images

CM Series - Cinematic

CM5330 MOVO FPV Motor

5.0 · 2 reviews In stock

SKU: 0101DJ2677

CM5330 MOVO V1.0 FPV motor offers 220KV/260KV options and a 63x74 mm size; confirm KV and installation requirements when ordering.

$155.00

KV OPTION

Volume quote from 50 pcs

Need OEM marking or custom winding?
Details

CM5330 MOVO FPV Motor

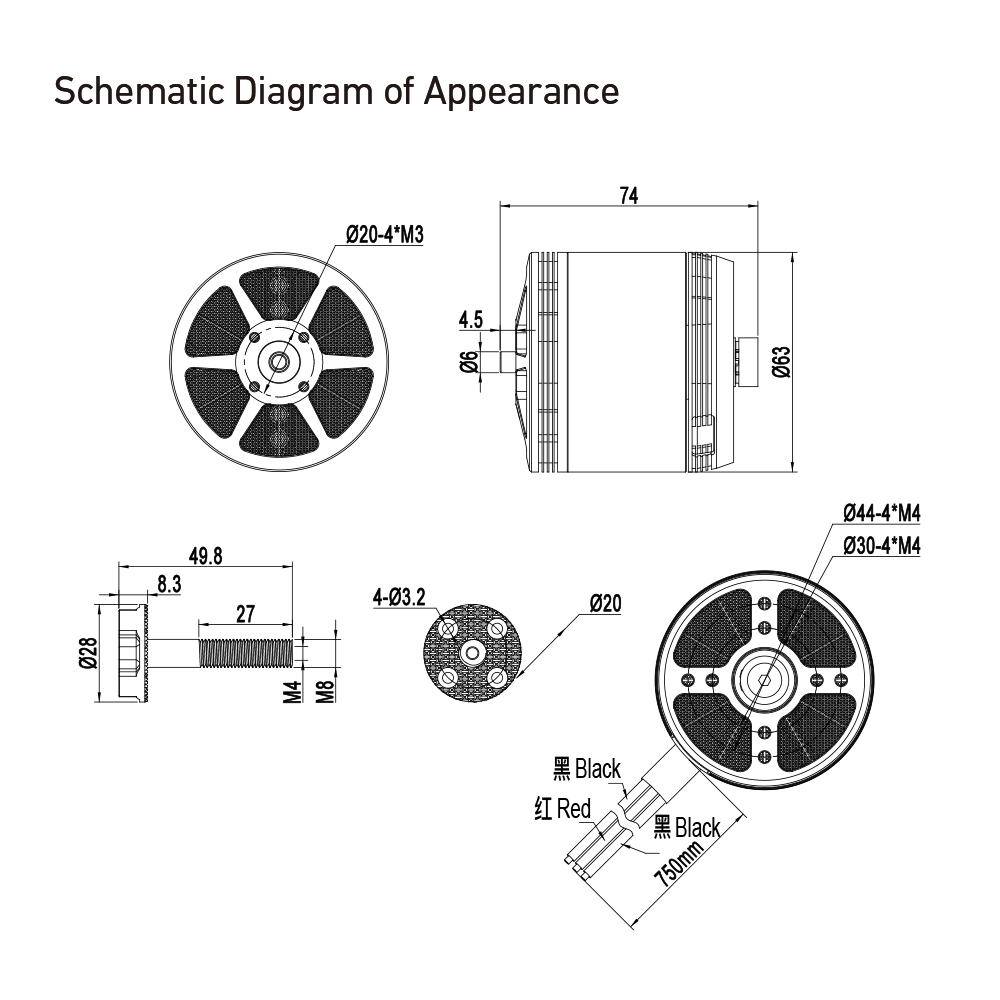

The MAD MOVO CM5330 V1.0 is listed with a D63 × 74 mm size, IP45 protection and 10 mm shaft for FPV propulsion.

Technical Specifications

Motor size D63 × 74 mm
Protection IP45
Shaft 10 mm
Motor mounting D44 M4×4; D30 M4×4
Propeller mounting D20 M3×4
Lead 750 mm, 14# AWG black/red silicone

Selection and Compatibility

Check the 10 mm shaft, D44/D30 mounting patterns and IP45 rating against the aircraft frame, propeller and ESC before ordering.

FAQ

What mounting data is listed? Motor mounting is D44 M4×4 and D30 M4×4; propeller mounting is D20 M3×4.

Request a Quote

Provide aircraft, battery, propeller, ESC and quantity for review.

Specifications

KV OPTION 220KV / 260KV
Weight N/A
Product FAQ
What is the CM5330 MOVO FPV Motor intended for?

This product is intended for UAV and multirotor integration where the listed model and configuration match the aircraft design. Confirm motor, ESC, battery, mounting, clearance and flight-test requirements before ordering.

How should I confirm compatibility for the CM5330 MOVO FPV Motor?

Please provide the aircraft or propulsion-system model, required quantity, operating environment and installation details. Check the published product information against the manufacturer's operating range; do not select from the name alone.

Can the CM5330 MOVO FPV Motor be considered for OEM procurement?

It can be evaluated for an OEM or fleet project when the specification matches the target aircraft. For a quotation, share the model, quantity, application, destination and packaging or documentation requirements so compatibility and production details can be confirmed.

Frequently bought together

Pair this item with the accessories buyers usually evaluate in the same quote.

Total $278.90

4 items selected

Application scenarios

Built for teams that need continuous thrust and clear configuration options before locking a volume SKU.

UAV Propulsion Integration

UAV Propulsion Integration

Conceptual application for integrating the CM5330 MOVO FPV Motor into a compatible UAV propulsion system. Validate installation, loading, clearance and operating limits on the actual aircraft before deployment.

Professional UAV Platforms

Conceptual application for professional UAV development using the CM5330 MOVO FPV Motor. Confirm system interfaces, payload requirements and environmental conditions through the integrator's design review and flight testing.

OEM and Fleet Evaluation

Conceptual application for an OEM or fleet evaluation of the CM5330 MOVO FPV Motor. Final selection should follow aircraft-specific compatibility checks, procurement requirements and documented test procedures.
