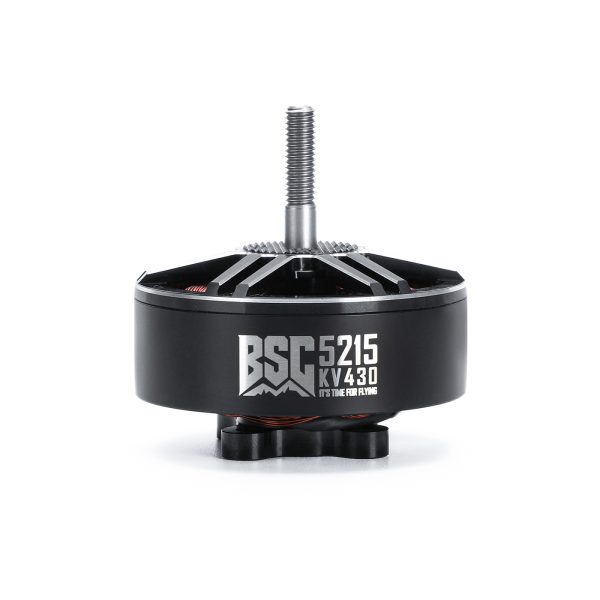

BSC 5215 FPV drone motor

Scroll to switch images

BSC Series - Basic

BSC 5215 FPV drone motor

5.0 · 3 reviews In stock

SKU: 0101DJ2125

BSC 5215 is designed for large-scale FPV and multirotor platforms that require high efficiency, strong torque, and reliable power output. Featuring a large 5215 stator size, optimized 12N14P electromagnetic design, and durable construction, it delivers smooth power delivery, excellent thermal performance, and stable thrust for demanding aerial applications.

$89.00

KV OPTION

Volume quote from 50 pcs

Need OEM marking or custom winding?
Details

MAD BSC 5215 V1.0 FPV Motor

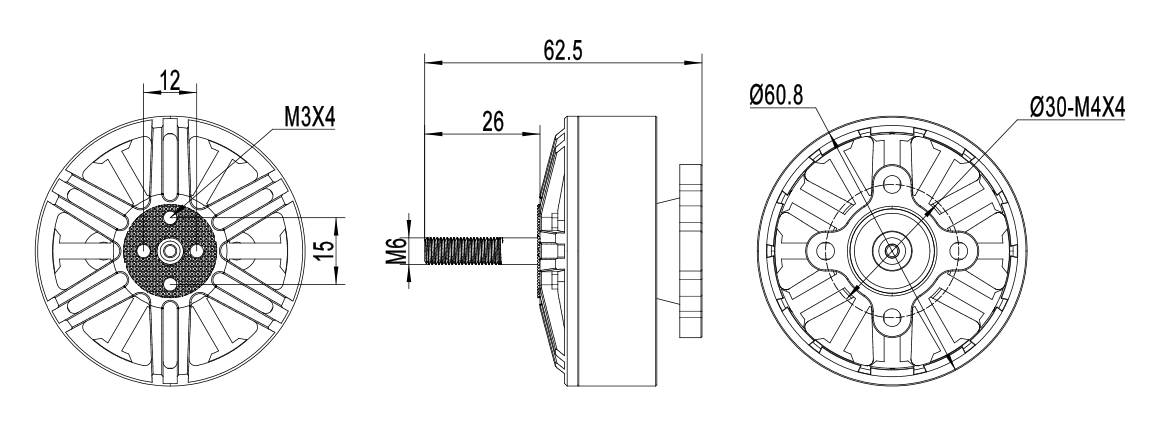

The MAD BSC 5215 is listed for 13–15-inch long-range FPV platforms. Its 430KV winding, 60.8 × 62.5mm body and 6mm shaft define the required installation space.

Technical Specifications

Motor model MAD BSC5215 V1.0
Stator / poles 12N14P
Motor size D: 60.8 × 62.5mm
Rotor balance ≤5mg
Propeller mounting M6 nut
Motor mounting D:30 M4×4
Shaft diameter 6mm
Cable 600mm, 14 AWG black silicone wire
KV 430KV
Phase resistance 20mΩ
No-load current 2.5A / 10V
Maximum thrust 8.4kg
Maximum current 83.2A
Rated output power 403W
Motor weight without cable 336g
Boxed weight 400g

Application and Ordering

Match the 430KV motor with the selected battery, propeller, ESC and frame clearance. Send the propulsion configuration and quantity for a quotation.

Specifications

KV OPTION 430 KV -8S / Rotors + locking shaft screw + O ring + Gaskets
Weight N/A
Product FAQ
What is the BSC 5215 FPV drone motor intended for?

This product is intended for UAV and multirotor integration where the listed model and configuration match the aircraft design. Confirm motor, ESC, battery, mounting, clearance and flight-test requirements before ordering.

How should I confirm compatibility for the BSC 5215 FPV drone motor?

Please provide the aircraft or propulsion-system model, required quantity, operating environment and installation details. Check the published product information against the manufacturer's operating range; do not select from the name alone.

Can the BSC 5215 FPV drone motor be considered for OEM procurement?

It can be evaluated for an OEM or fleet project when the specification matches the target aircraft. For a quotation, share the model, quantity, application, destination and packaging or documentation requirements so compatibility and production details can be confirmed.

Frequently bought together

Pair this item with the accessories buyers usually evaluate in the same quote.

Total $133.40

4 items selected

Application scenarios

Built for teams that need continuous thrust and clear configuration options before locking a volume SKU.

UAV Propulsion Integration

UAV Propulsion Integration

Conceptual application for integrating the BSC 5215 FPV drone motor into a compatible UAV propulsion system. Validate installation, loading, clearance and operating limits on the actual aircraft before deployment.

Professional UAV Platforms

Conceptual application for professional UAV development using the BSC 5215 FPV drone motor. Confirm system interfaces, payload requirements and environmental conditions through the integrator's design review and flight testing.

OEM and Fleet Evaluation

Conceptual application for an OEM or fleet evaluation of the BSC 5215 FPV drone motor. Final selection should follow aircraft-specific compatibility checks, procurement requirements and documented test procedures.
