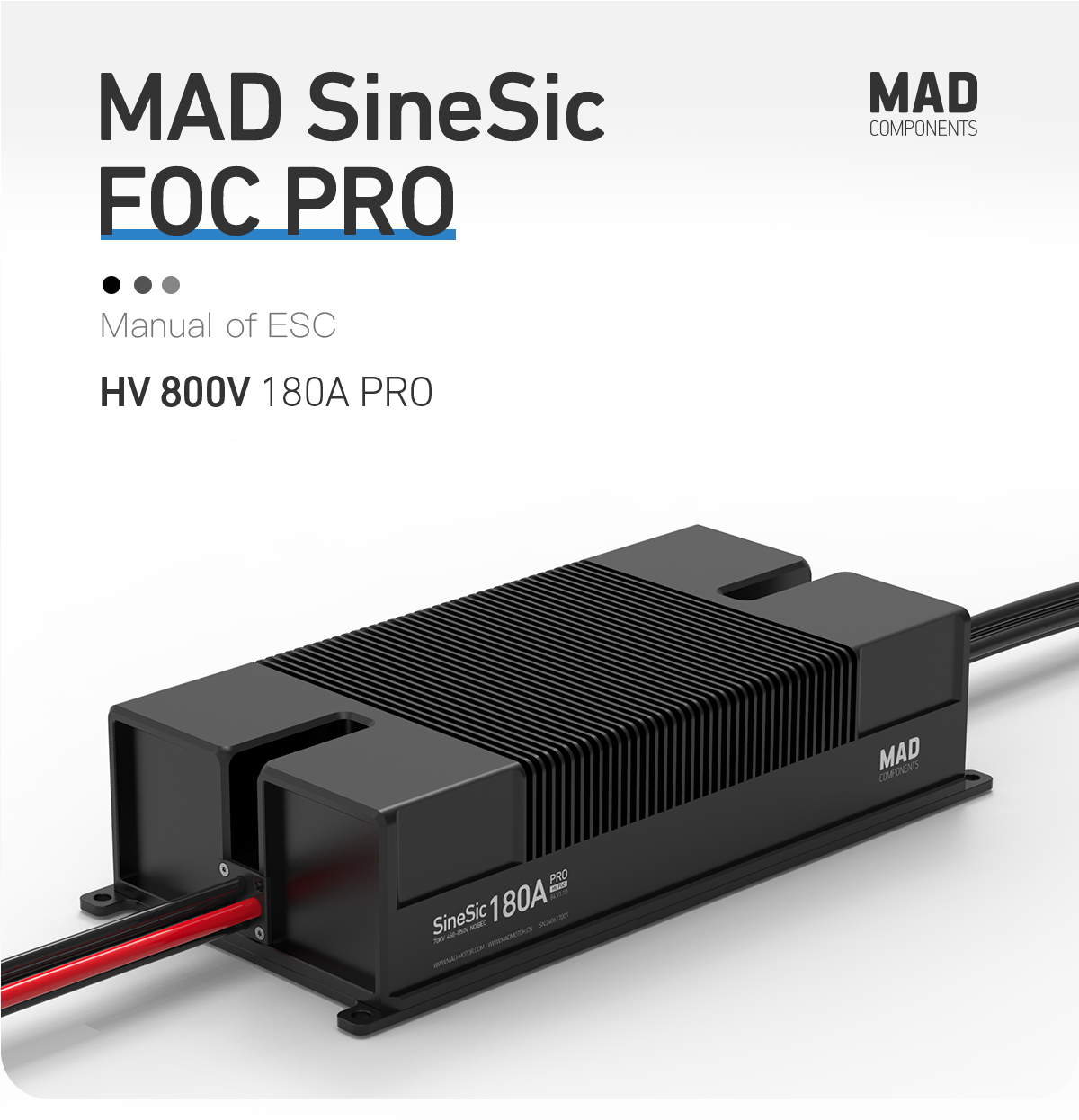

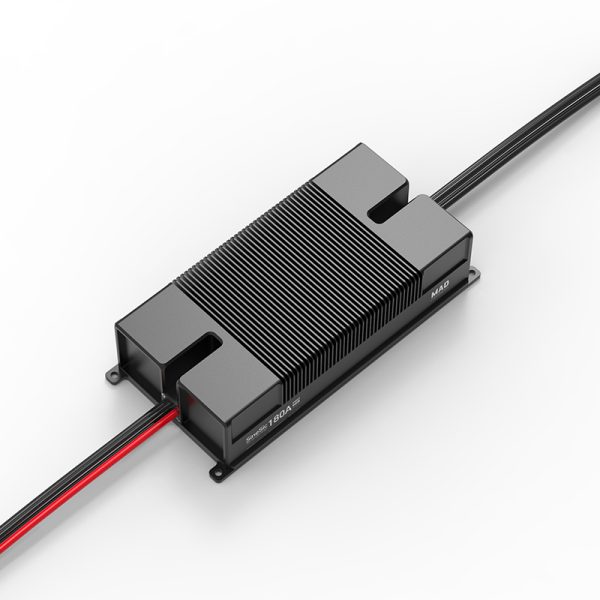

SineSic 180A Pro 800V is a high-voltage FOC ESC for large UAV propulsion systems using a 450–850V supply range. MAD lists this model at 180A and 70kW in the SineSic 800V series. Use it only as part of a matched motor, battery, wiring and cooling system; the ESC current rating is not a complete aircraft payload or thrust specification.

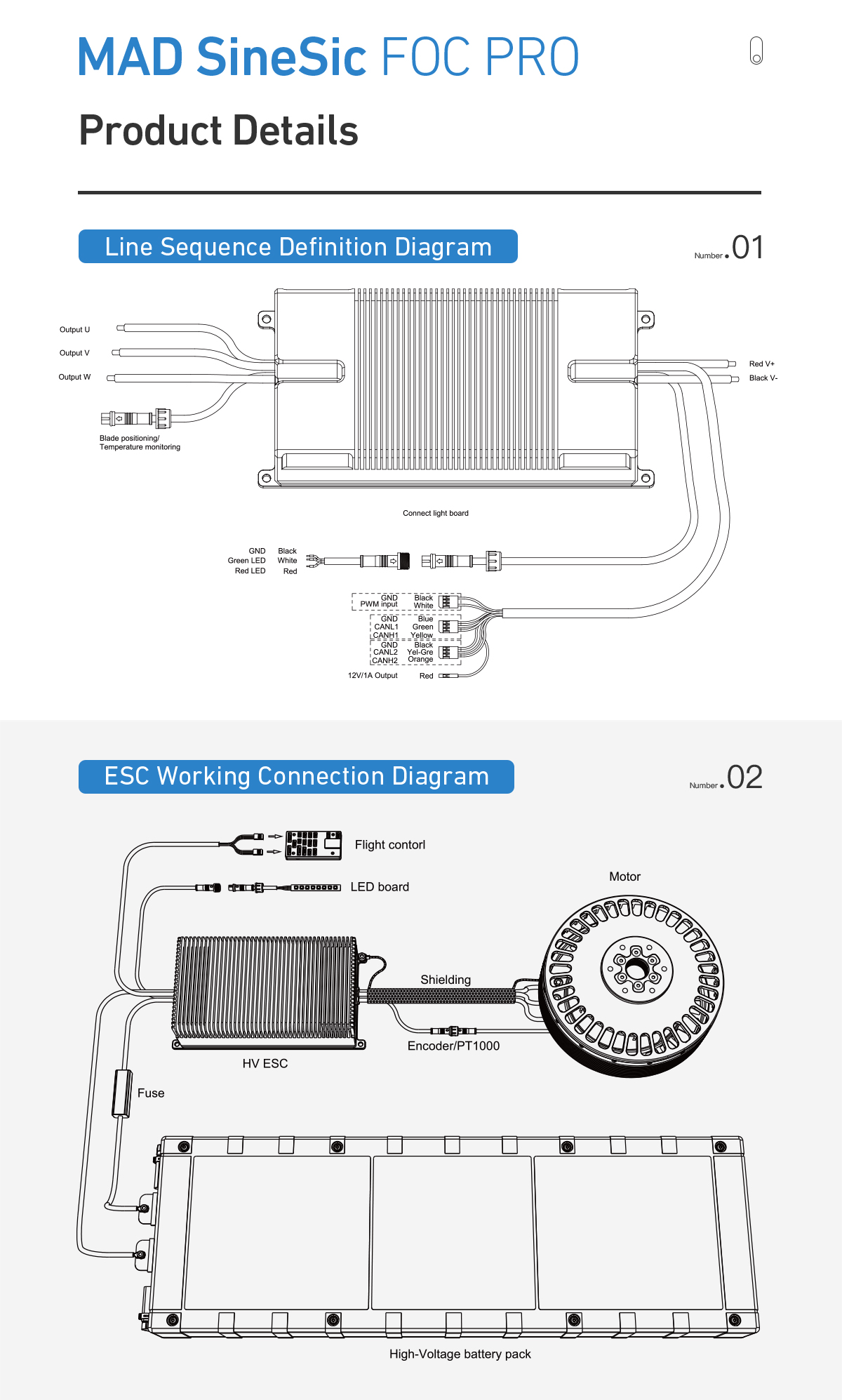

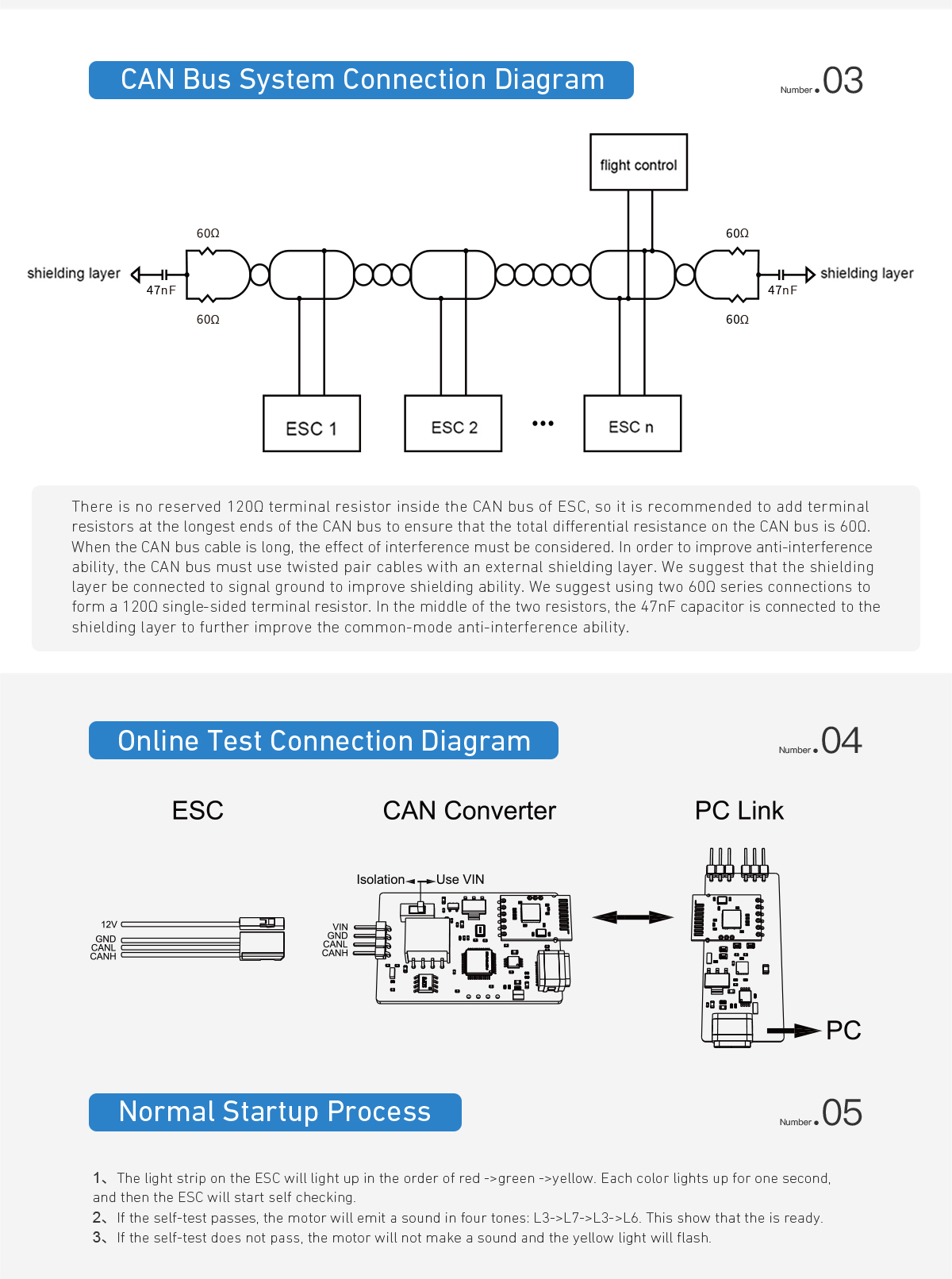

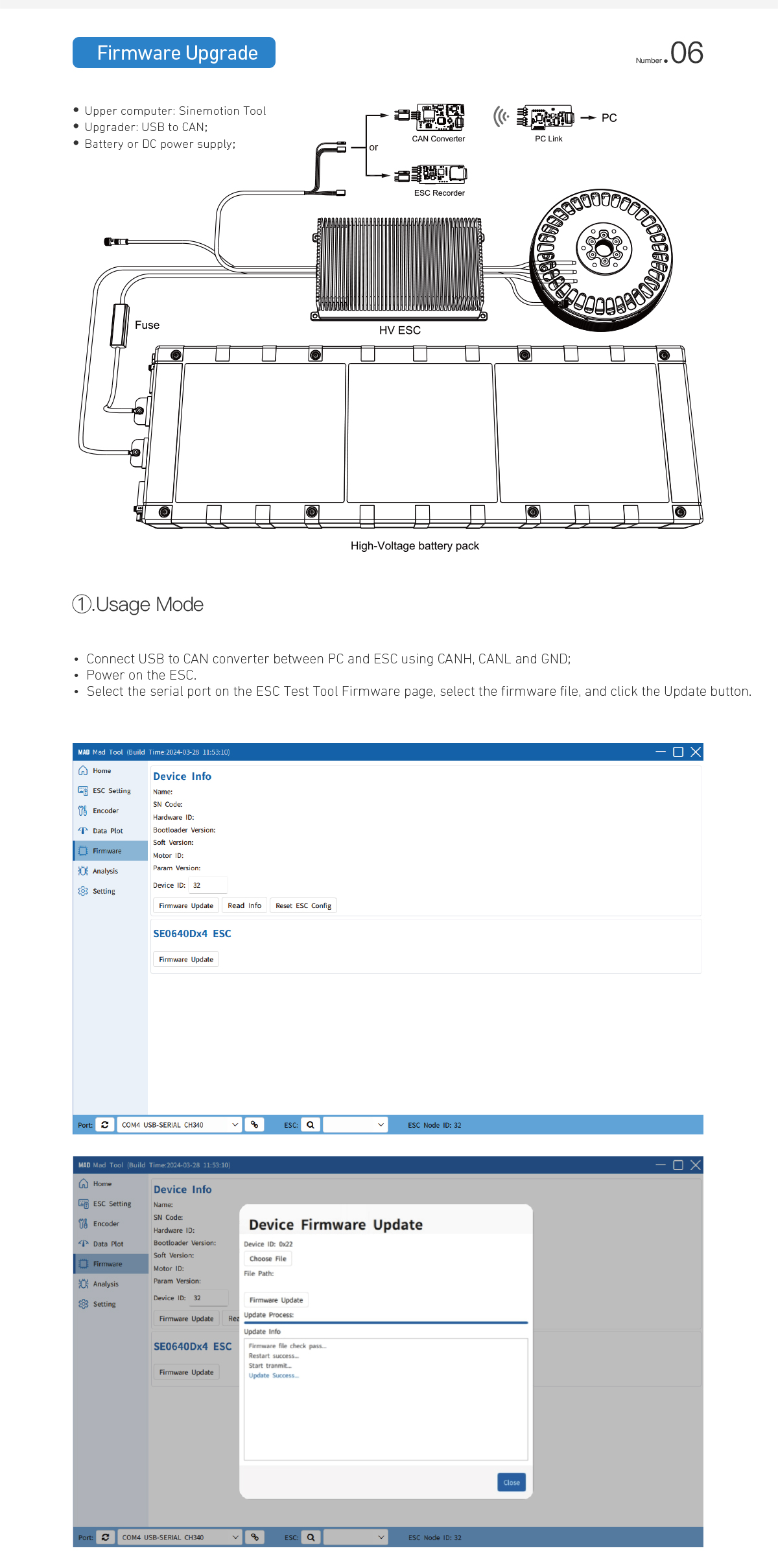

The controller should be selected after checking the motor KV, bus voltage, peak current, propeller load, thermal path and firmware requirements. Confirm the actual battery series, PWM or digital-throttle interface, CAN protocol, cable lengths, protection rating and installation clearances against the latest manual before ordering. Do not infer these fields from the 100A or 80A SineSic models. Keep high-voltage conductors insulated and protected, and validate pre-flight fault handling before connecting the system to an aircraft.
For a lower-current comparison, review the SineSic 100A Pro 800V. For a matched high-voltage system, see the AM160 4.5KV Heavy-Lift Power System Kit. Browse Reachsky Drone ESCs for other controller ranges.
SineSic 180A Pro 800V FAQs
What voltage range is listed?
MAD lists a 450–850V range for the SineSic 800V series.

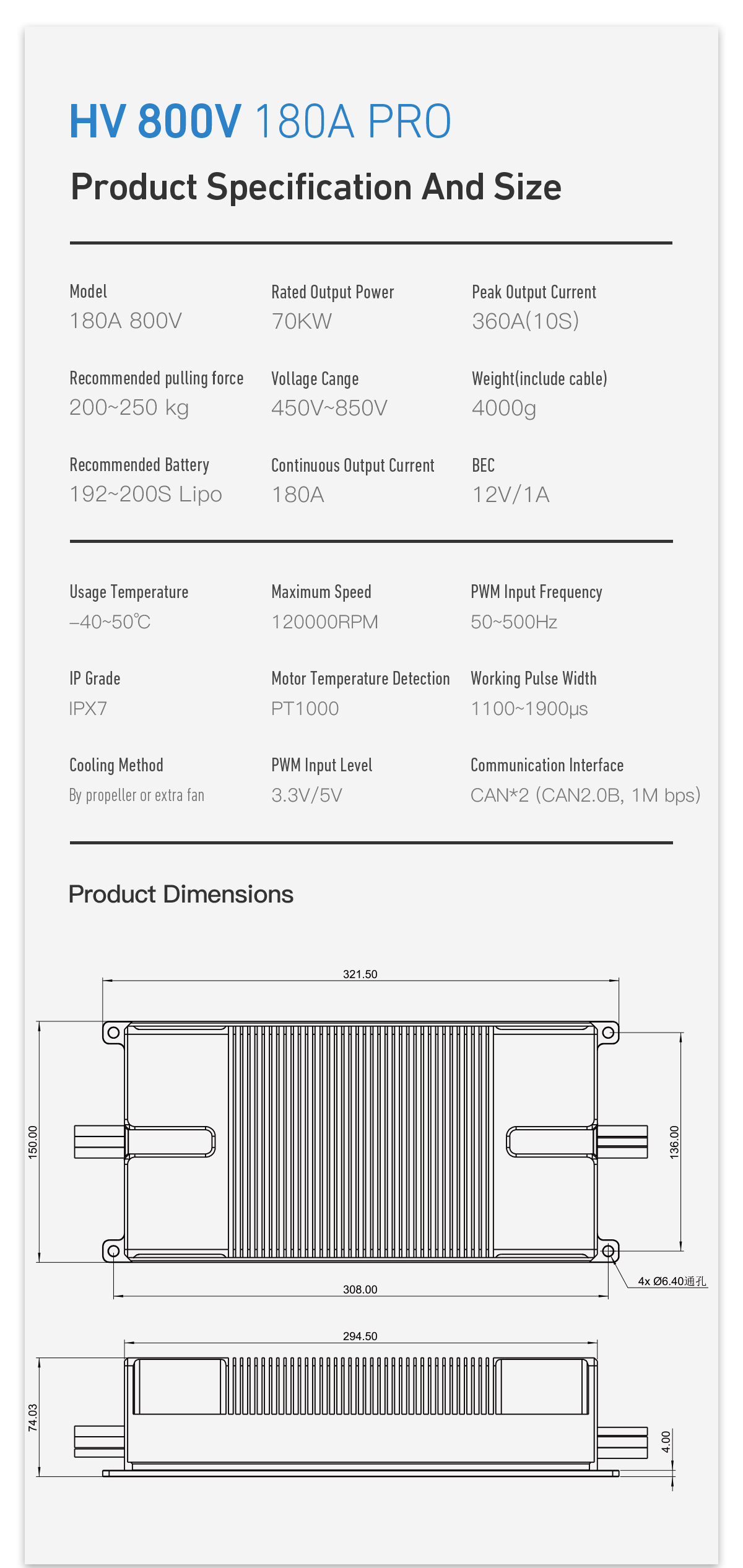

What are the listed current and power values?
The official series listing identifies the 180A model at 70kW; confirm continuous, peak and thermal limits in the current manual.
Can the 100A model specifications be reused?
No. The 100A and 180A models must be checked against their own manuals and wiring requirements.
