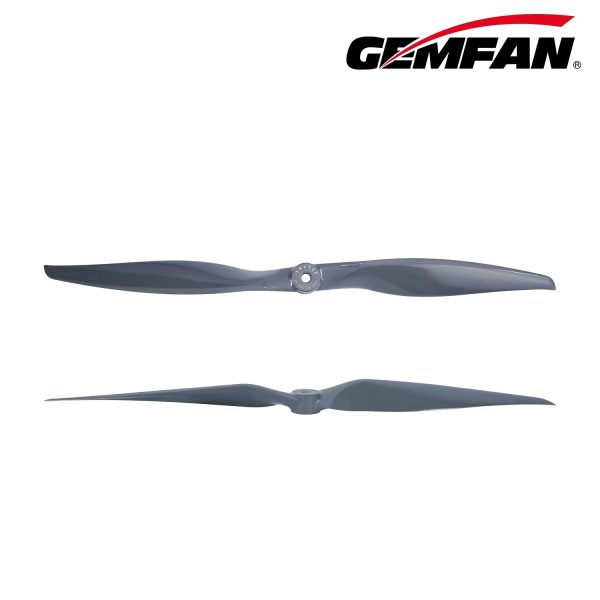

Vortex 14×12E Electric Propeller in glass-fiber nylon
Vortex 14×12E Electric Propeller is a glass-fiber nylon electric propeller identified by the listed diameter and pitch format. Confirm the rotation marking, hub interface, shaft adapter and package quantity on the current product listing before ordering.
Match diameter, pitch, rotation, hub, clearance and motor operating range to the aircraft design. The size label alone does not establish thrust, RPM, current, motor KV, voltage, noise or flight-time performance. Do not infer CW/CCW compatibility from a similar model.
This propeller is not a universal replacement. Check blade clearance, balance, fastener fit and motor direction before installation, and perform restrained ground testing before flight.
For related selection, review the VC carbon-fiber propeller range, the TIPUP folding propeller, and browse the propeller category.
Vortex 14×12E Electric Propeller FAQ
What material is listed?
The product is listed as glass-fiber nylon.
What must be checked before ordering?
Confirm the exact size, rotation, hub interface and package quantity on the product listing.
Can diameter and pitch guarantee thrust?
No. Actual thrust and motor load depend on the complete matched propulsion system and test conditions.
14X12E
Prop Diameter: 14 inch
Pitch: 12 inch
Prop Disk Diameter: 20.4mm
Center Thickness: 13.6mm
Center Hole Diameter: 6.35mm / 0.25 inch
Weight (single): 40.8g
Product Weight (including packaging): 52.48g
The VORTEX series electric propellers for fixed-wing aircraft feature an advanced airfoil design and strict dynamic balancing, manufactured from imported nylon to deliver high thrust, low noise, and exceptional reliability.
