4006 EEE Drone Motor 320KV/380KV/740KV

Scroll to switch images

28/35/40 series

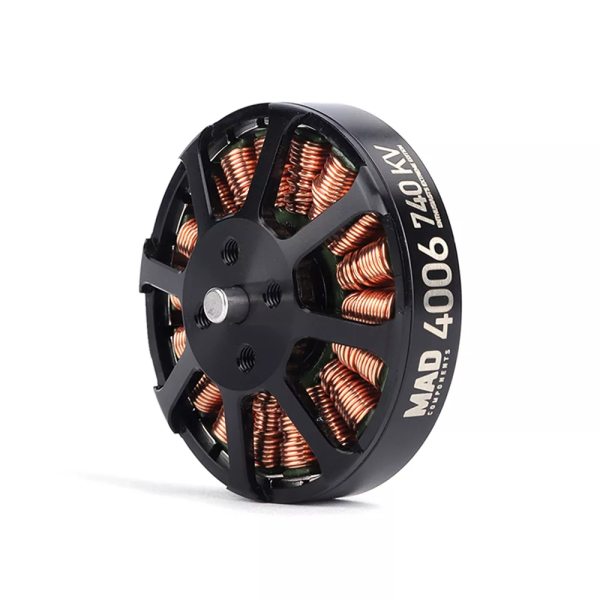

4006 EEE Drone Motor 320KV/380KV/740KV

5.0 · 1 reviews In stock

SKU: 0101DJ0507

MAD 40 Series motors are the classical UAV motors for small to medium industrial use, efficient and for endurance flight. This sizes of motors have been releasing in the market for 10years, MAD Components optimized them to be very lightweight design. ENTHUSIASTS EXTREME EDITION for extreme weight reduction while maintaining the highest possible performance.

Price range: $64.00 through $119.00

KV Option
Packing way

Volume quote from 50 pcs

Need OEM marking or custom winding?
Details

About 4006 EEE

  • Payload Capacity:550–1100g per rotor

  • Propeller Compatibility:13–16″ carbon fiber props

  • Max Thrust:2200g (2.2kg) per motor

  • Ultralight Design:Only 72g per unit

Key Features
✔Industry-leading thrust-to-weight ratio(30.5:1)
✔Optimized for 6S-8S LiPo systems
✔Low-RPM high-torque designfor extended flight times
✔Precision-balanced rotorreduces vibration to <5mg

Ideal Applications

  • Professional cinematography drones(Red Komodo, Sony FX3 payloads)

  • Industrial inspection platforms(LiDAR/thermal imaging systems)

  • Advanced FPV racing(hybrid cinewhoop builds)

  • Agricultural monitoring(multispectral sensor arrays)
    (Need custom KV options or bulk pricing? Contact us!)

Motor Data
Motor Model MAD 4006 EEE V1.0 Number of pole pairs 12
Stator Anticorrosive Varnished wire Degree 150°C

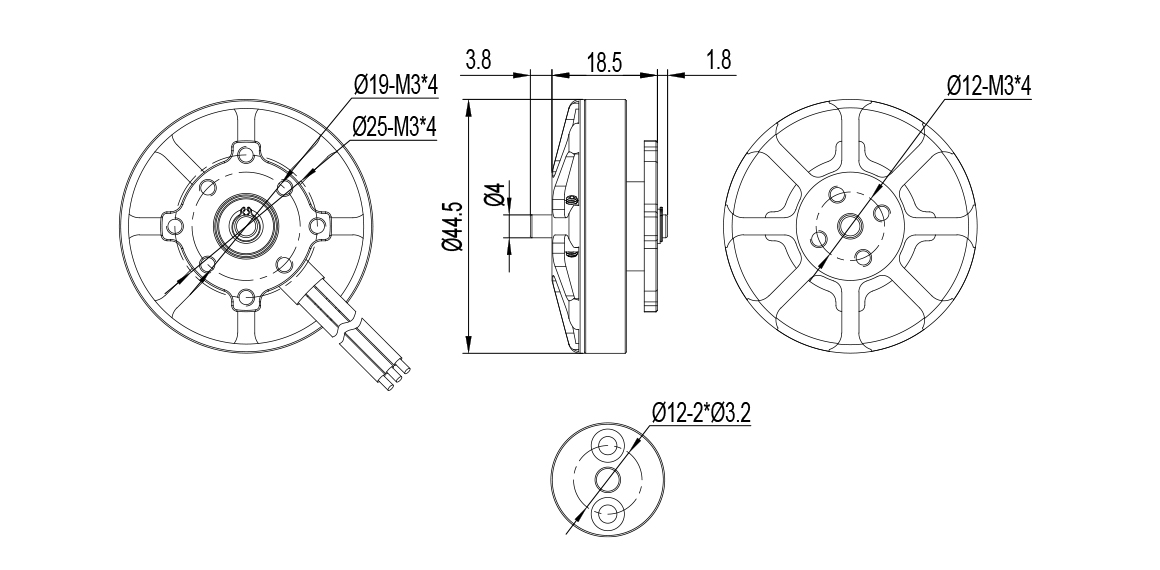

Motor Size D:44.5 × 24.1 mm Magnet Degree 150°C
Degree of Protection Rain protection Cable Length 150 mm 18# Awg(Black) silicone
Centrifugal Heat Dissipation Independent Rotor Balance ≤5 mg
Propeller Mounting Holes D:12 M3×4 Motor Balance ≤10 mg
Shaft Diameter IN: 4 mm Motor Mounting Holes D:19 M3×4 D:25 M3×4
Bearing NSK 694ZZMC3 *2 Disruptive test 500 V

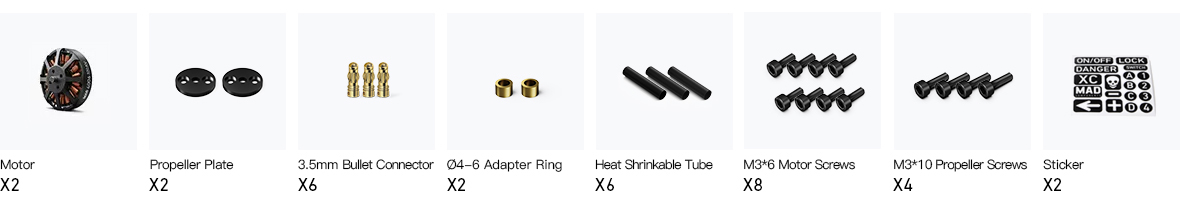

Accessories

Specifications

KV Option 320KV / 380KV / 740KV
Packing way 1pc / 2pcs
Weight N/A
Product FAQ
Which platforms is this SKU built for?

It targets industrial and distributor UAV programs that need clear specs, thermal margin, and repeatable production builds. Share duty cycle and AUW so we confirm the fit.

How do I choose the right configuration?

Match KV / config to pack voltage, prop diameter/pitch, and continuous current. Share duty cycle and AUW in the inquiry so we confirm the band before volume pricing.

What is the MOQ and when should I use Inquiry instead of Add to Cart?

Sample buys can use Add to Cart. Volume quote starts from 50 pcs on this SKU. Use Inquiry for dealer pricing, OEM marking, mixed lots, or when lead time and packing still need confirmation.

Can you support OEM marking and matched propulsion sets?

Yes. Logo, label language, wire length, and packing notes can be set early. We also help pair ESC class and prop size so sample and mass-production paths stay aligned.

Frequently bought together

Pair this item with the accessories buyers usually evaluate in the same quote.

Total $391.00

4 items selected

Application scenarios

Built for teams that need continuous thrust and clear configuration options before locking a volume SKU.

Heavy-lift multirotor

Cargo and industrial airframes that run long duty cycles. Pair KV with prop load and continuous current before sample evaluation.

Manned / hybrid platforms

Manned and hybrid propulsion stacks where thermal margin and repeatable production builds matter more than hobby peak thrust.

Cinema & survey fleets

Multi-airframe fleets that restock the same motor family across seasons. Volume inquiry covers dealer pricing and staged ship windows.

OEM private-label programs

Marking, wire length, and packing language for partners that move from evaluation lots into annual forecasts.
