CM 3120 BANSHEE FPV Drone motor

Scroll to switch images

CM Series - Cinematic

CM 3120 BANSHEE FPV Drone motor

5.0 · 3 reviews In stock

SKU: 0101DJ1342

MAD BANSHEE CM3120 V1.0 with 500KV-12S/700KV-8S/1000KV-6S option(s), D:37.1 × 59 mm size, 6 mm shaft and D:19 M3×4 mounting.

$65.00

KV OPTION

Volume quote from 50 pcs

Need OEM marking or custom winding?
Details

CM 3120 BANSHEE FPV Motor

The MAD BANSHEE CM3120 V1.0 is listed with 500KV-12S, 700KV-8S and 1000KV-6S options, a D37.1 × 59 mm body and 6 mm shaft.

Technical Specifications

KV / battery options 500KV-12S; 700KV-8S; 1000KV-6S

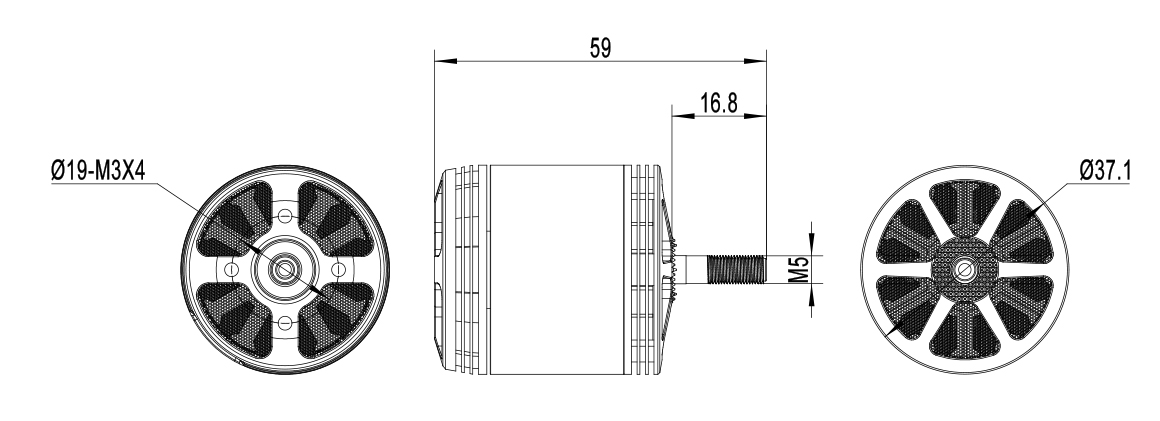

Motor size D37.1 × 59 mm
Shaft 6 mm
Motor model MAD BANSHEE CM3120 V1.0

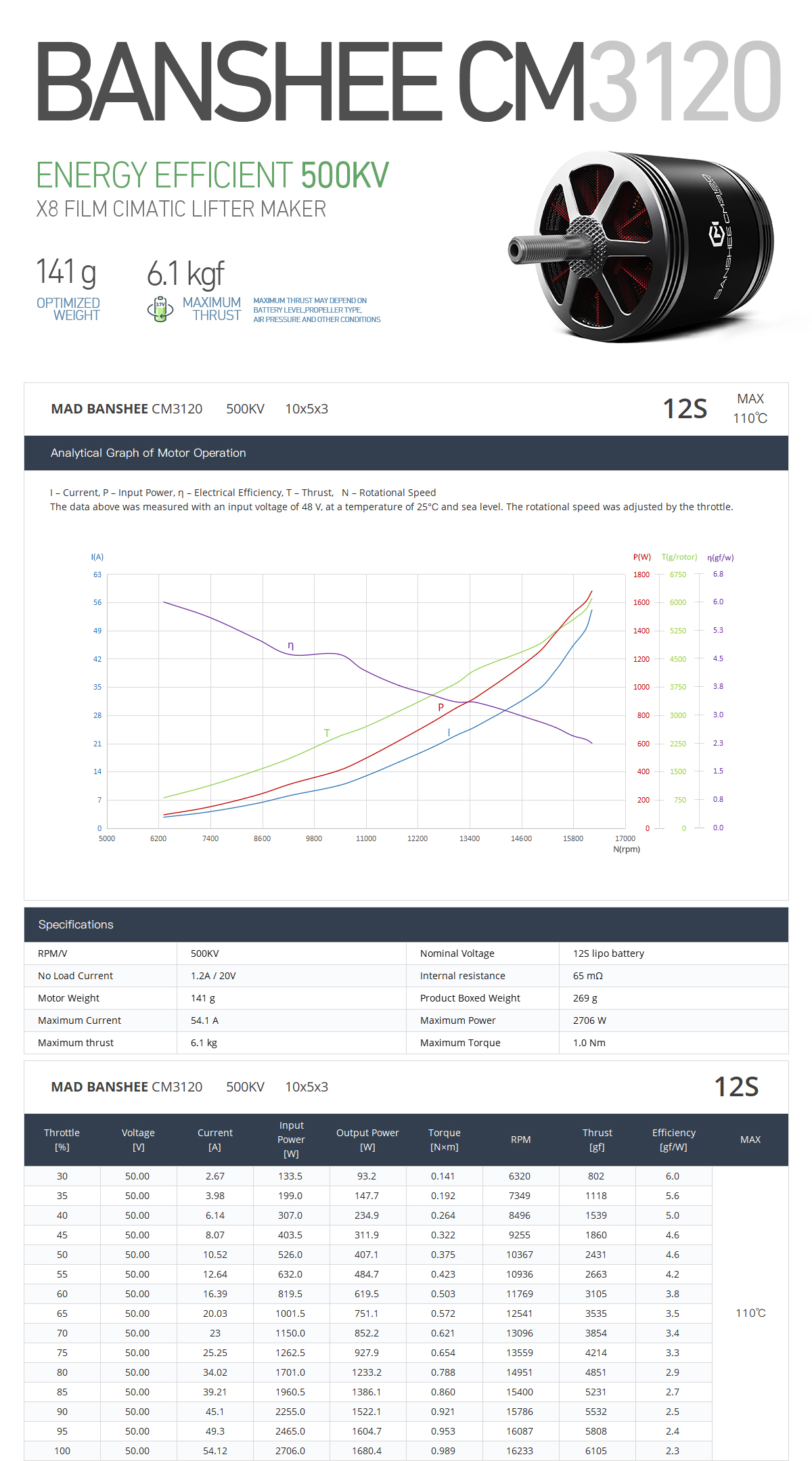

KV / nominal voltage 500KV / 12S
Motor size D37.1 × 59 mm
Maximum current 54.1 A
Maximum thrust 6.1 kg
Motor weight 141 g
Maximum power 2706 W
Rated output power 484 W
Internal resistance 65 mΩ

Selection and Compatibility

Match the selected KV and battery option to the propeller, controller and frame clearance before installation.

FAQ

Which options are listed? The product data lists 500KV-12S, 700KV-8S and 1000KV-6S.

Request a Quote

Provide the selected option, propeller, ESC, aircraft and quantity.

Specifications

KV OPTION 500KV-12S / 700KV-8S / 1000KV-6S
Weight N/A
Product FAQ
What is the CM 3120 BANSHEE FPV Drone motor intended for?

This product is intended for UAV and multirotor integration where the listed model and configuration match the aircraft design. Confirm motor, ESC, battery, mounting, clearance and flight-test requirements before ordering.

How should I confirm compatibility for the CM 3120 BANSHEE FPV Drone motor?

Please provide the aircraft or propulsion-system model, required quantity, operating environment and installation details. Check the published product information against the manufacturer's operating range; do not select from the name alone.

Can the CM 3120 BANSHEE FPV Drone motor be considered for OEM procurement?

It can be evaluated for an OEM or fleet project when the specification matches the target aircraft. For a quotation, share the model, quantity, application, destination and packaging or documentation requirements so compatibility and production details can be confirmed.

Frequently bought together

Pair this item with the accessories buyers usually evaluate in the same quote.

Total $102.70

4 items selected

Application scenarios

Built for teams that need continuous thrust and clear configuration options before locking a volume SKU.

UAV Propulsion Integration

UAV Propulsion Integration

Conceptual application for integrating the CM 3120 BANSHEE FPV Drone motor into a compatible UAV propulsion system. Validate installation, loading, clearance and operating limits on the actual aircraft before deployment.

Professional UAV Platforms

Conceptual application for professional UAV development using the CM 3120 BANSHEE FPV Drone motor. Confirm system interfaces, payload requirements and environmental conditions through the integrator's design review and flight testing.

OEM and Fleet Evaluation

Conceptual application for an OEM or fleet evaluation of the CM 3120 BANSHEE FPV Drone motor. Final selection should follow aircraft-specific compatibility checks, procurement requirements and documented test procedures.
