About 5008 IPE

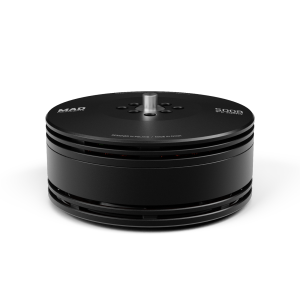

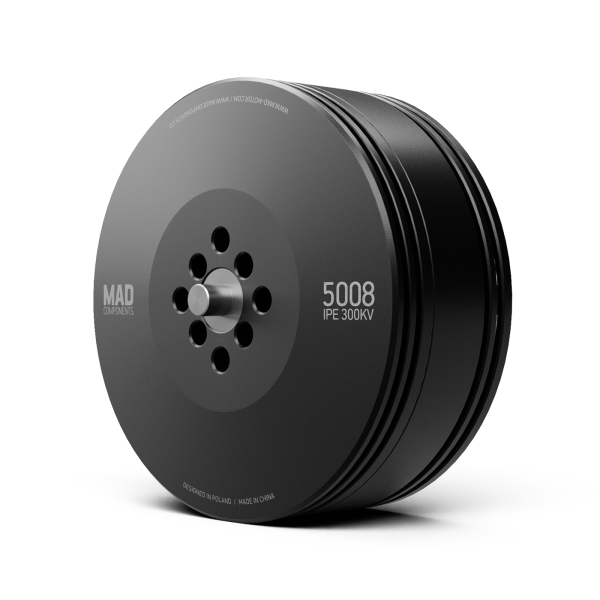

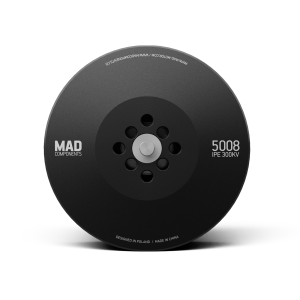

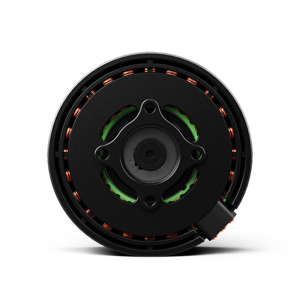

Summary of the 5008 Motor by MAD EU (2015):
Developer/Year: Designed and developed byMAD EU in 2015, this motor has proven reliable and effective, meeting the expectations of both designers and users.
Key Features:
- High Efficiency: Optimized for18-20 inch propellers, making it one of the most efficient motors in its class.
- Thrust Capacity: Ideal for multirotors requiring1-2 kg of thrust per rotor, balancing power and payload for applications like heavy-lift drones.
Applications: Widely adopted in professional drones, including:
- Long-range inspection drones.
- Mapping and surveying drones.
- Quadcopters, hexacopters, and other multirotor configurations.
Reputation:Recognized for its reliability and performance, it remains a popular choice in industrial and commercial drone sectors.
This motor is particularly suited for users prioritizing endurance, payload capacity, and precision in specialized operations.
| Specification | |||||||||
| Motor Model | MAD 5008 IPE V3.0 |
Number of pole pairs | 14 | ||||||
| Stator | Anticorrosive |
Varnished wire Degree | 180°C | ||||||
| Motor Size | D:56 × 29.3 mm |
Magnet Degree | 150°C |
||||||
| Degree of Protection | IP45 | Cable Length | 150 mm 16# Awg(Black) silicone |
||||||
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤5 mg |
||||||
| Propeller Mounting Holes | D:12 M3×4, D:15 M3×4 |
Motor Balance | ≤10 mg |
||||||
| Shaft Diameter | IN: 6 mm |
Motor Mounting Holes | D:25 M3×4 | ||||||
| Bearing | 696ZZ*2 |
Disruptive test | 500 V |
||||||
Drawing and mount holes |
|||||||||
