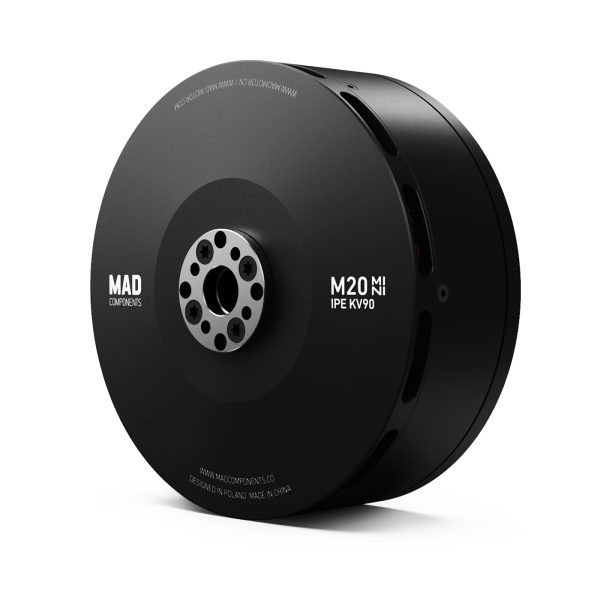

M20 MiNi IPE Drone Motor

Scroll to switch images

Drone Motors

M20 MiNi IPE Drone Motor

5.0 · 2 reviews In stock

SKU: 0101DJ0844

M20 Mini IPE drone motor for compact UAV propulsion builds; confirm the M20 Mini IPE model and installation requirements when requesting this motor.

$429.00

KV Option

Volume quote from 50 pcs

Need OEM marking or custom winding?
Details

M20 MINI IPE Drone Motor

The M20 MINI IPE V1 is listed for 8–9.5 kg single-axis payloads, 28–40 inch carbon-fiber propellers, 12S systems and up to 30.4 kgf thrust per axis.

Technical Specifications

Voltage 12S
Propeller 28–40 inch carbon fiber
Rated thrust 8–9.5 kgf per axis
Peak thrust 30.4 kgf per axis
Weight 812 g

Selection and Compatibility

Confirm the 12S system, large propeller range, payload target, ESC and frame clearance before selecting this motor.

FAQ

Which payload is listed? The source states 8–9.5 kgf rated thrust range and 8–9.5 kg single-axis payloads.

Request a Quote

Provide aircraft, propeller, battery, ESC, payload and quantity.

Specifications

KV Option 90KV / 100KV / 110KV / 160KV
Weight N/A
Product FAQ
What is the M20 MiNi IPE Drone Motor intended for?

This product is intended for UAV and multirotor integration where the listed model and configuration match the aircraft design. Confirm motor, ESC, battery, mounting, clearance and flight-test requirements before ordering.

How should I confirm compatibility for the M20 MiNi IPE Drone Motor?

Please provide the aircraft or propulsion-system model, required quantity, operating environment and installation details. Check the published product information against the manufacturer's operating range; do not select from the name alone.

Can the M20 MiNi IPE Drone Motor be considered for OEM procurement?

It can be evaluated for an OEM or fleet project when the specification matches the target aircraft. For a quotation, share the model, quantity, application, destination and packaging or documentation requirements so compatibility and production details can be confirmed.

Frequently bought together

Pair this item with the accessories buyers usually evaluate in the same quote.

Total $592.90

4 items selected

Application scenarios

Built for teams that need continuous thrust and clear configuration options before locking a volume SKU.

UAV Propulsion Integration

UAV Propulsion Integration

Conceptual application for integrating the M20 MiNi IPE Drone Motor into a compatible UAV propulsion system. Validate installation, loading, clearance and operating limits on the actual aircraft before deployment.

Professional UAV Platforms

Conceptual application for professional UAV development using the M20 MiNi IPE Drone Motor. Confirm system interfaces, payload requirements and environmental conditions through the integrator's design review and flight testing.

OEM and Fleet Evaluation

Conceptual application for an OEM or fleet evaluation of the M20 MiNi IPE Drone Motor. Final selection should follow aircraft-specific compatibility checks, procurement requirements and documented test procedures.
