AN M6 Series

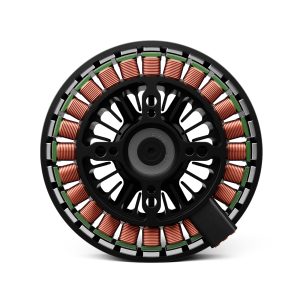

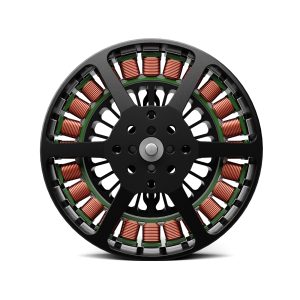

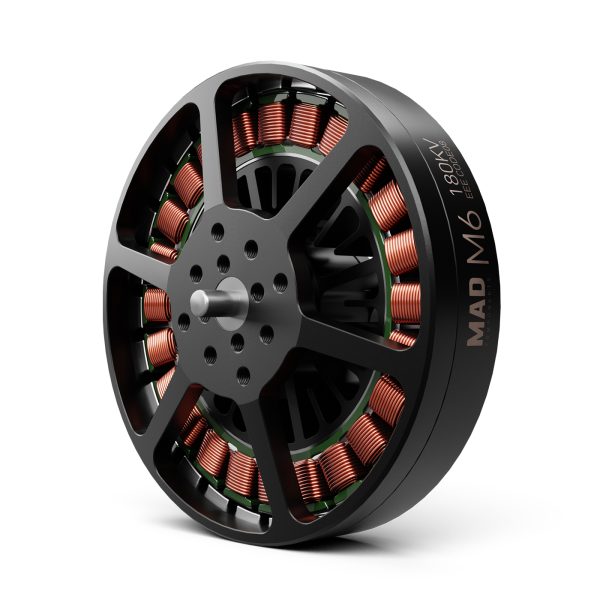

Antimatter M6C08 EEE Drone Motor

Name: Antimatter M6C08 EEE Drone Motor
SKU: 5194
Price: 109.00 USD
Availability: InStock

SKU: 0101DJ0325

The M6C08 EEE is suitable for UAV with a single-axis load of 2-4kg. When used in conjunction with 20~24-inch carbon propellers, the maximum pulling force of a single axis can reach 7.6kg, and the weight of a single motor is 188g.

$109.00

KV OPTION

Volume quote from 50 pcs

Need OEM marking or custom winding?

Details

Antimatter M6C08 EEE Motor

The M6C08 EEE V2.0 is listed for 2–4 kg single-axis payloads, 20–24 inch carbon-fiber propellers and up to 7.6 kg thrust per axis.

Technical Specifications

Voltage configurations	6S / 8S / 12S
Weight	188 g
Propeller	20–24 inch carbon fiber
Maximum thrust	7.6 kg per axis
Stator	24N28P

Selection and Compatibility

The M6C08 listing is positioned above M6C06 for the stated 2–4 kg payload range and 20–24 inch propellers. Confirm voltage, propeller and ESC before ordering.

FAQ

What payload range is listed? The product data states 2–4 kg single-axis payloads.

Request a Quote

Provide voltage, propeller, ESC, payload and quantity for quotation.

Specifications

KV OPTION	130KV / 180KV / 260KV / 320KV
Weight	N/A

Product FAQ

What is the Antimatter M6C08 EEE Drone Motor intended for?

This product is intended for UAV and multirotor integration where the listed model and configuration match the aircraft design. Confirm motor, ESC, battery, mounting, clearance and flight-test requirements before ordering.

How should I confirm compatibility for the Antimatter M6C08 EEE Drone Motor?

Please provide the aircraft or propulsion-system model, required quantity, operating environment and installation details. Check the published product information against the manufacturer's operating range; do not select from the name alone.

Can the Antimatter M6C08 EEE Drone Motor be considered for OEM procurement?

It can be evaluated for an OEM or fleet project when the specification matches the target aircraft. For a quotation, share the model, quantity, application, destination and packaging or documentation requirements so compatibility and production details can be confirmed.

Secure payment · SSL encrypted

Ships
Stock in 1–3 business days · volume per written lead time
Returns
7-day DOA exchange · unused sealed parts in 15 days
Warranty
12-month limited cover · defect review by photo / video
Support
Reply in 1 business day · WhatsApp for urgent matching

Frequently bought together

Pair this item with the accessories buyers usually evaluate in the same quote.

This item: Antimatter M6C08 EEE Drone Motor $109.00
+
AM75 Heavy-Lift Drone Motor $2,429.00
+
BSC 5215 FPV drone motor $89.00
+
7005 EEE brushless drone motor $199.00

Total $2,826.00

4 items selected

Application scenarios

Built for teams that need continuous thrust and clear configuration options before locking a volume SKU.

UAV Propulsion Integration

Conceptual application for integrating the Antimatter M6C08 EEE Drone Motor into a compatible UAV propulsion system. Validate installation, loading, clearance and operating limits on the actual aircraft before deployment.

Professional UAV Platforms

Conceptual application for professional UAV development using the Antimatter M6C08 EEE Drone Motor. Confirm system interfaces, payload requirements and environmental conditions through the integrator's design review and flight testing.

OEM and Fleet Evaluation

Conceptual application for an OEM or fleet evaluation of the Antimatter M6C08 EEE Drone Motor. Final selection should follow aircraft-specific compatibility checks, procurement requirements and documented test procedures.
