CM 4530 LIFTER FPV Drone motor

Scroll to switch images

CM Series - Cinematic

CM 4530 LIFTER FPV Drone motor

5.0 · 1 reviews In stock

SKU: 0101DJ1475

CM4530 LIFTER V1.0 FPV drone motor offers 380KV, 53x84.7 mm size and a 66 mm shaft for UAV propulsion systems; confirm mounting when ordering.

$97.00

KV OPTION

Volume quote from 50 pcs

Need OEM marking or custom winding?
Details

CM 4530 LIFTER FPV Motor

The MAD LIFTER CM4530 V1.0 is listed with a 380KV option, D53 × 84.7 mm size and 6 mm shaft for UAV propulsion.

Technical Specifications

KV 380KV

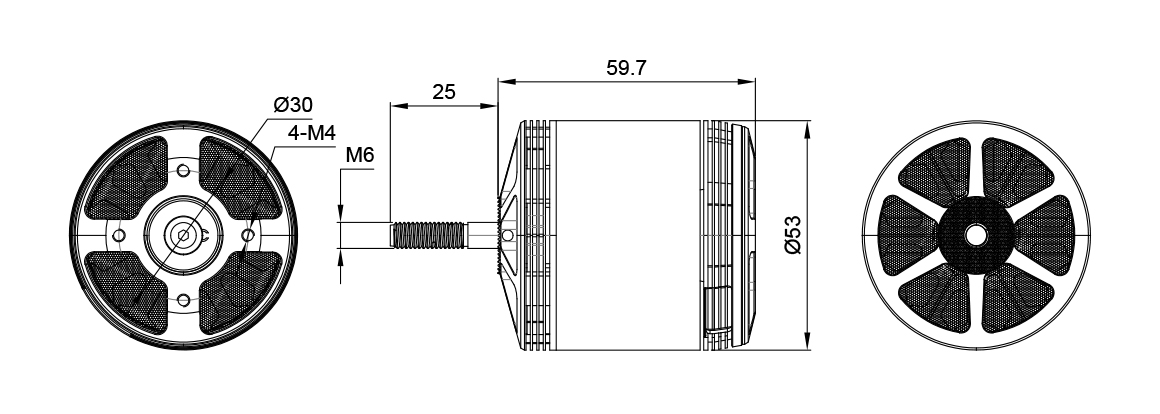

Motor size D53 × 84.7 mm
Shaft 6 mm
Motor model MAD LIFTER CM4530 V1.0
KV / nominal voltage 380KV / 12S
Motor size D53 × 84.7 mm
Maximum current 122.3 A
Maximum thrust 13.1 kg
Motor weight 496.7 g
Maximum power 5380 W
Rated output power 1073 W
Internal resistance 31.7 mΩ

Selection and Compatibility

Confirm battery, propeller load, controller, mounting pattern and airframe clearance as one system before selecting this larger-format motor.

FAQ

What is confirmed? The listing confirms 380KV, D53 × 84.7 mm size and a 6 mm shaft.

Request a Quote

Provide aircraft, propeller, battery, ESC and quantity for quotation.

Specifications

KV OPTION 380KV
Weight N/A
Product FAQ
What is the CM 4530 LIFTER FPV Drone motor intended for?

This product is intended for UAV and multirotor integration where the listed model and configuration match the aircraft design. Confirm motor, ESC, battery, mounting, clearance and flight-test requirements before ordering.

How should I confirm compatibility for the CM 4530 LIFTER FPV Drone motor?

Please provide the aircraft or propulsion-system model, required quantity, operating environment and installation details. Check the published product information against the manufacturer's operating range; do not select from the name alone.

Can the CM 4530 LIFTER FPV Drone motor be considered for OEM procurement?

It can be evaluated for an OEM or fleet project when the specification matches the target aircraft. For a quotation, share the model, quantity, application, destination and packaging or documentation requirements so compatibility and production details can be confirmed.

Frequently bought together

Pair this item with the accessories buyers usually evaluate in the same quote.

Total $339.38

4 items selected

Application scenarios

Built for teams that need continuous thrust and clear configuration options before locking a volume SKU.

UAV Propulsion Integration

UAV Propulsion Integration

Conceptual application for integrating the CM 4530 LIFTER FPV Drone motor into a compatible UAV propulsion system. Validate installation, loading, clearance and operating limits on the actual aircraft before deployment.

Professional UAV Platforms

Conceptual application for professional UAV development using the CM 4530 LIFTER FPV Drone motor. Confirm system interfaces, payload requirements and environmental conditions through the integrator's design review and flight testing.

OEM and Fleet Evaluation

Conceptual application for an OEM or fleet evaluation of the CM 4530 LIFTER FPV Drone motor. Final selection should follow aircraft-specific compatibility checks, procurement requirements and documented test procedures.
