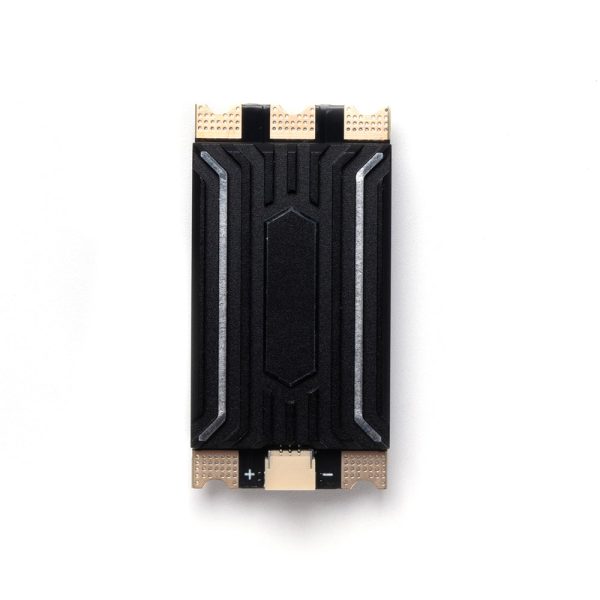

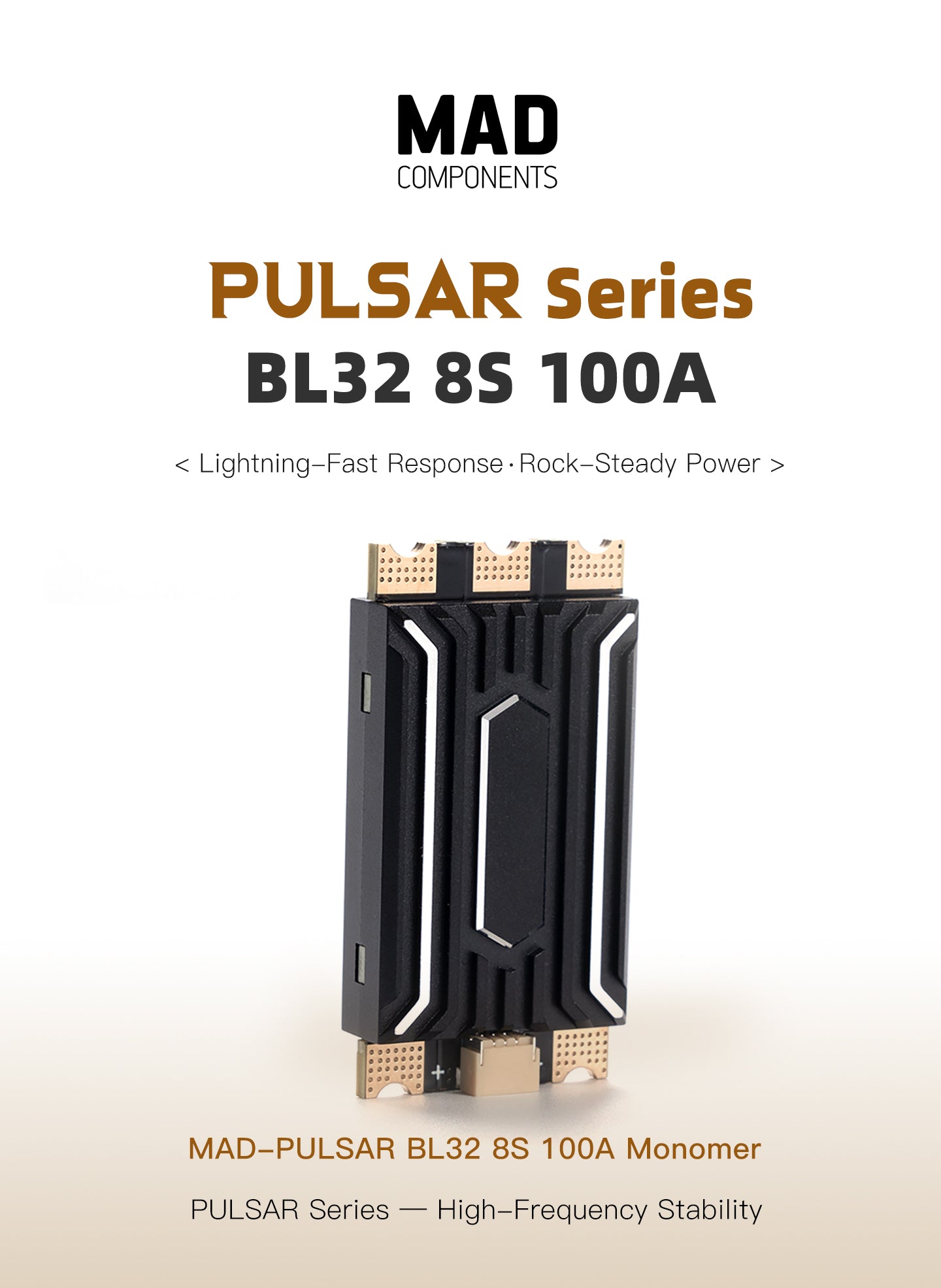

MAD PULSAR BL32 8S 100A Single ESC
This single ESC uses an STM32G071 controller with BLHeli-32 firmware and is specified for 3–8S LiPo FPV systems.

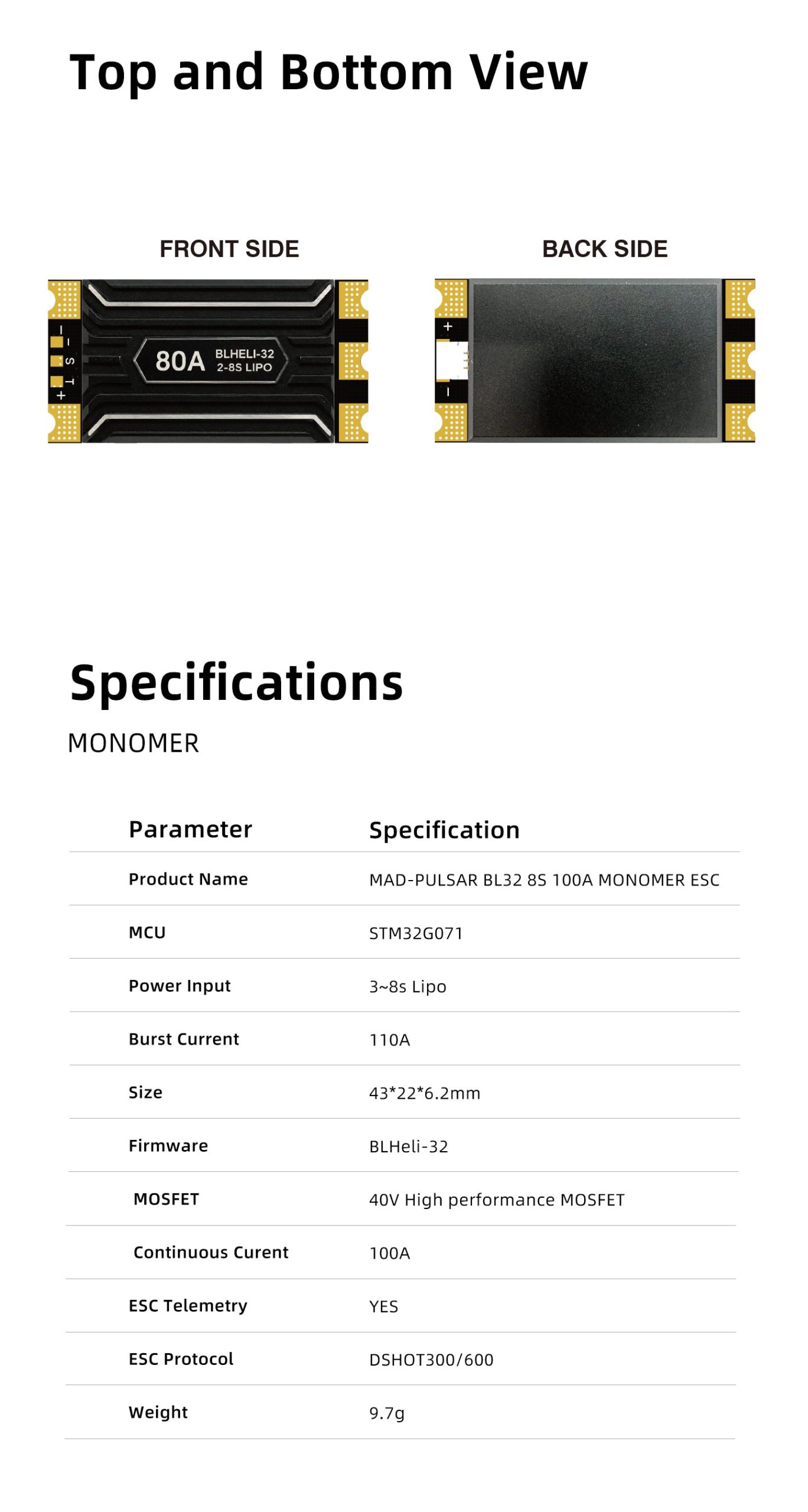

Technical Specifications
| Model | Pulsar-BL32 8S 100A Single |
|---|---|

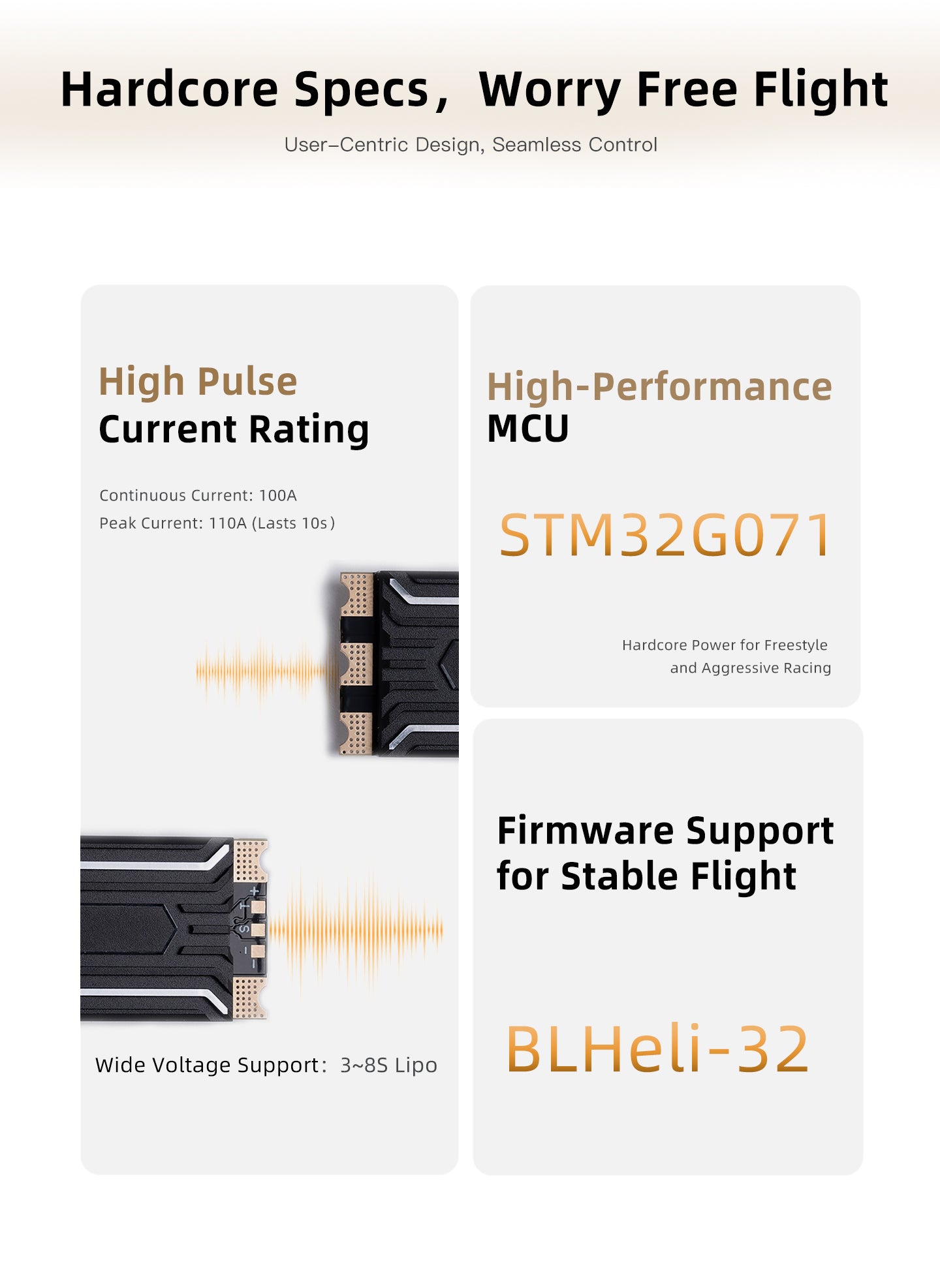

| MCU | STM32G071 |
| Firmware | BLHeli-32 |
| MOSFET | 40V high-performance MOSFET |

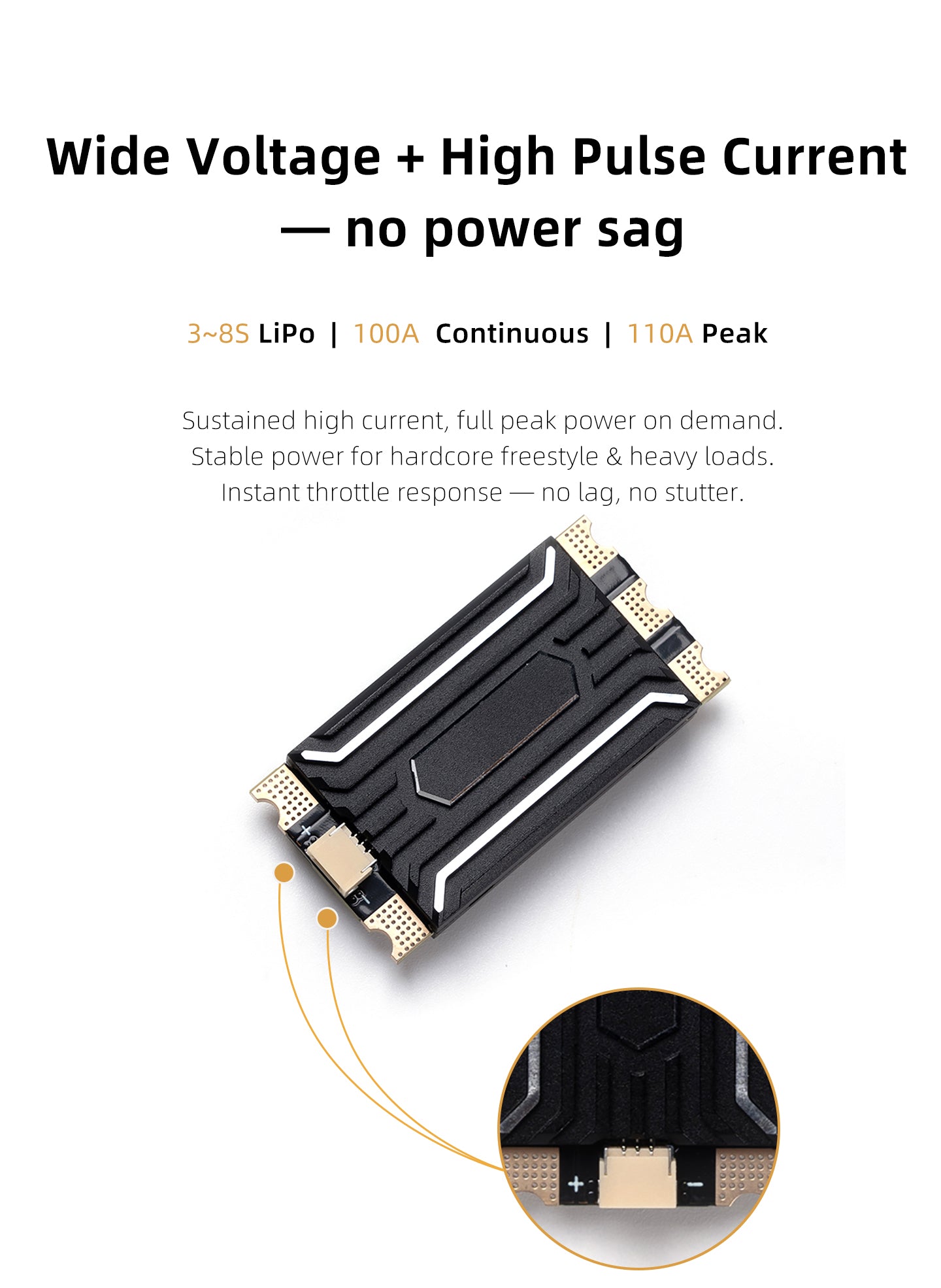

| Input | 3–8S LiPo |
| Continuous current | 100A |
| Peak current | 110A |
| Telemetry | Yes |
| Protocol | DSHOT300/600 |

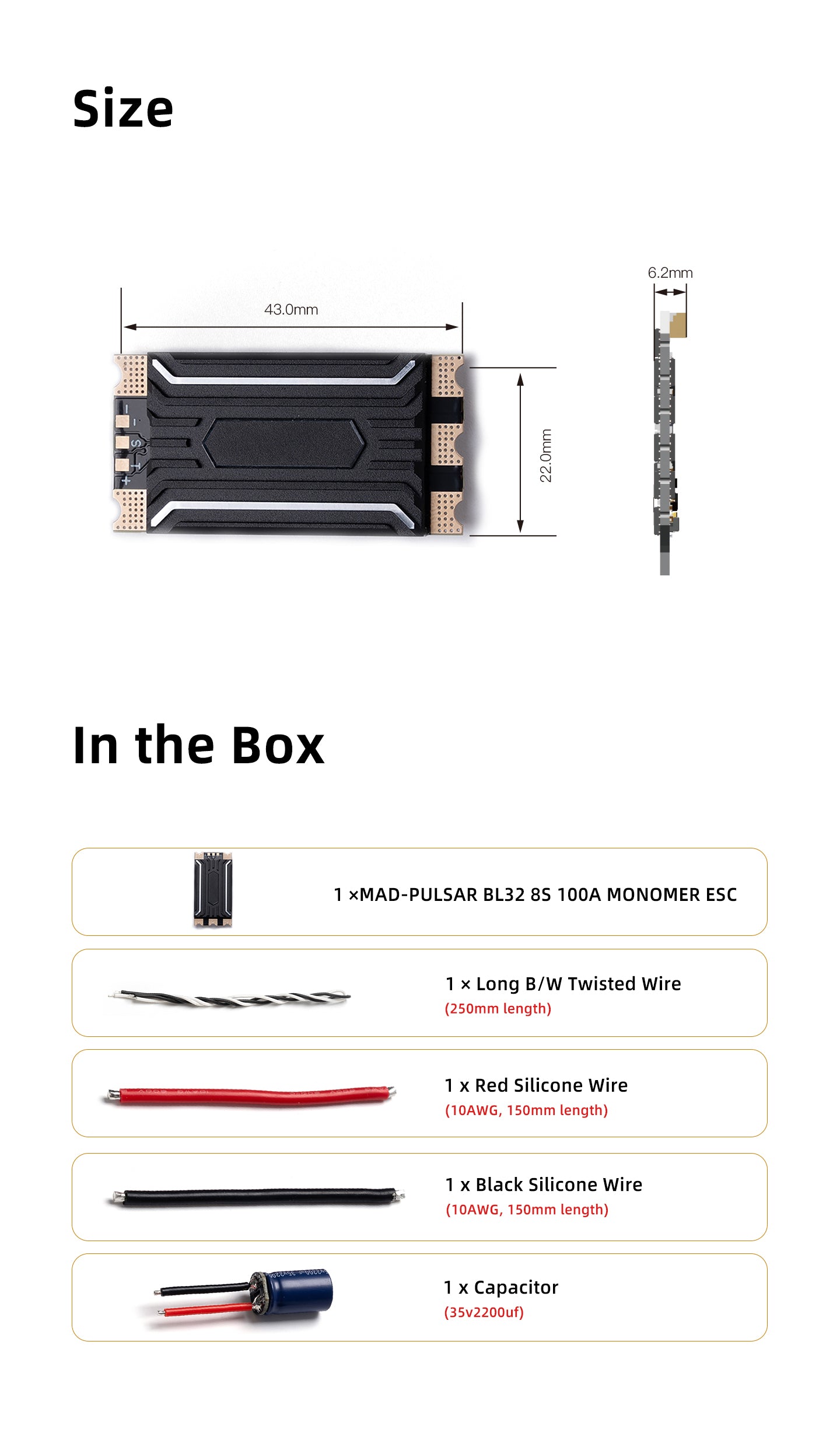

| Dimensions | 43 × 22 × 6.2mm |
| Weight | 9.7g |
Selection Notes
Choose this single-channel 100A version when the propulsion layout needs a separate ESC. Confirm battery, motor, wiring, cooling and signal interfaces before use.
Request a Quote
Send battery cell count, motor model, controller, quantity and required configuration for a quotation.
Q: How to Identify & Choose “BLHeli_S” or “BLHeli_32”
A: Identification: The easiest way is to check the label/sticker on your ESC — it usually states “BLHeli_S” or “BLHeli_32”. If not, refer to the product manual or specifications.
Software Compatibility: Do NOT mix up the configuration tools. Use BLHeliSuite for BLHeli_S and BLHeliSuite32 for BLHeli_32. Attempting to use the wrong suite will fail to detect the ESC.
Choice Guidance:
1. Choose BLHeli_S if you’re building a budget-friendly drone, performing casual flying, or simply need a reliable, proven system.
2.Choose BLHeli_32 if you’re building a high-performance racing/freestyle drone, require advanced telemetry (e.g., for RPM filtering), or want the best throttle response and protection features.
