MAD PULSAR BL-S 8S 80A Single

Scroll to switch images

FPV electronics

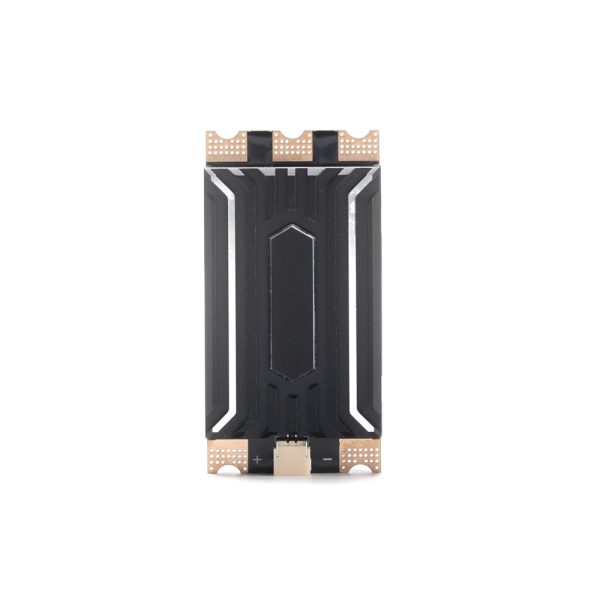

MAD PULSAR BL-S 8S 80A Single

5.0 · 3 reviews In stock

SKU: 0102DT0535

MAD PULSAR BL-S 8S 80A Single for matched FPV or UAV installation. Confirm interface, mounting and included parts before use.

$45.00

Volume quote from 50 pcs

Need OEM marking or custom winding?
Details

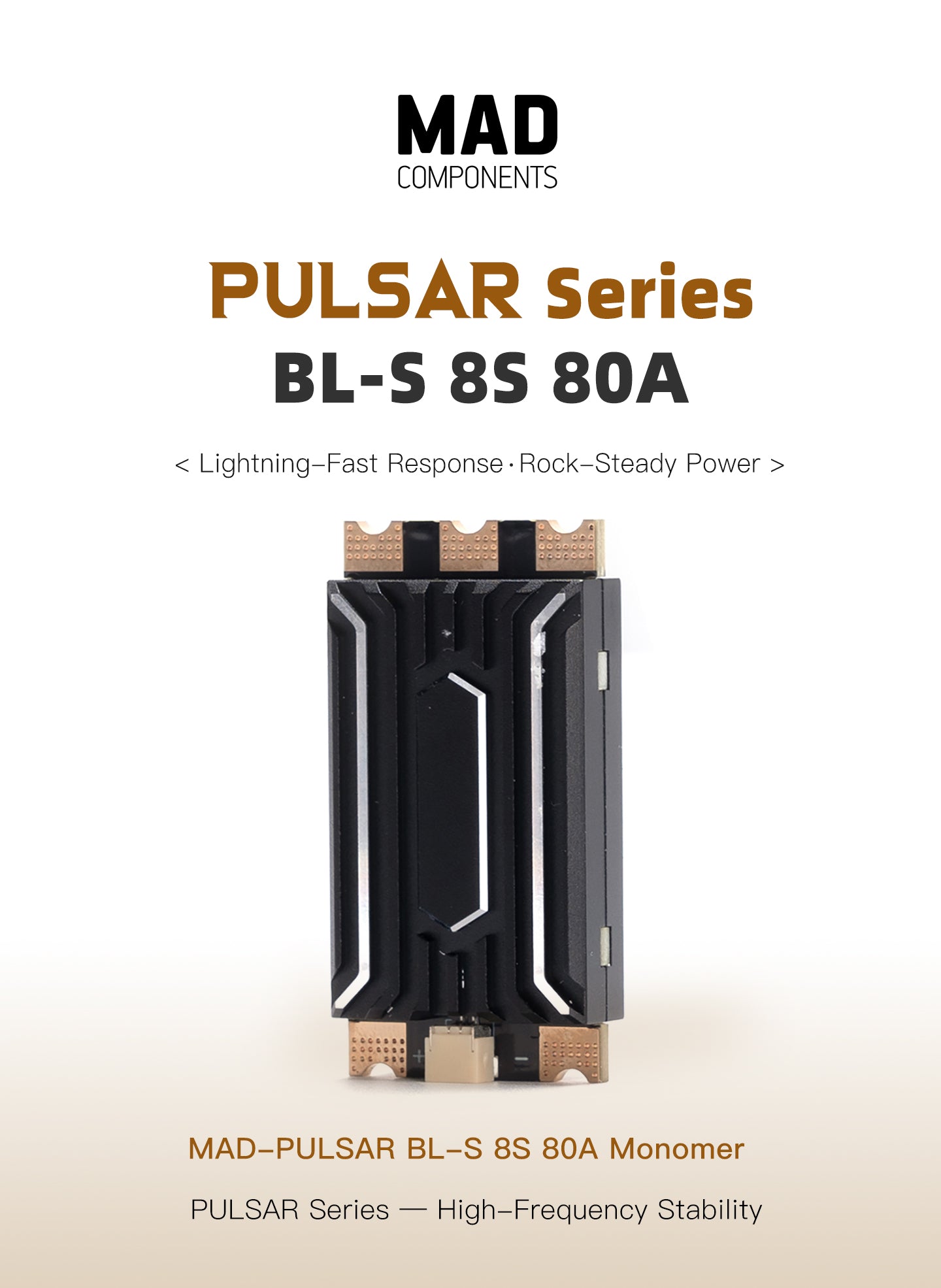

MAD PULSAR BL-S 8S 80A Single ESC

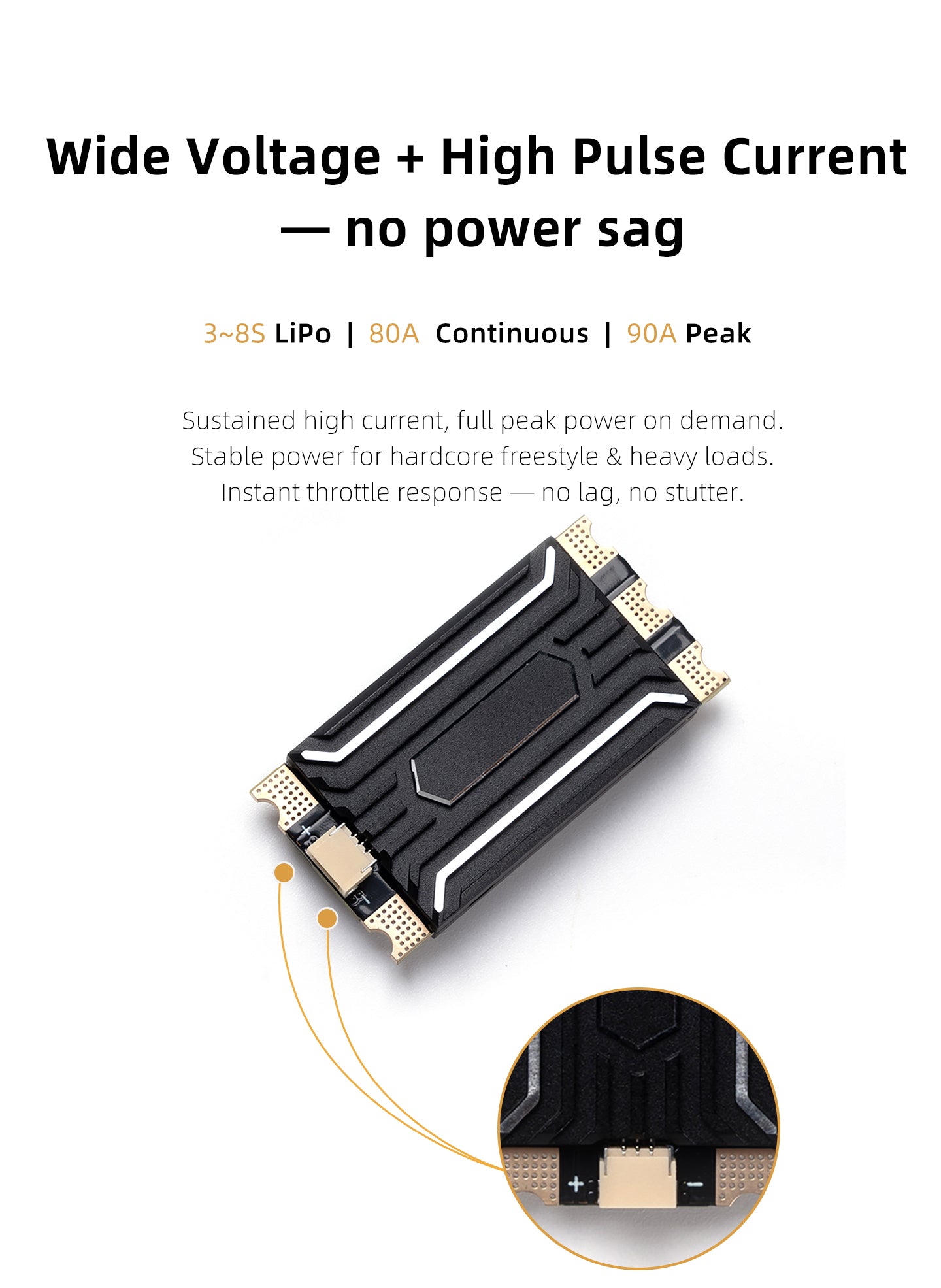

This single ESC is specified for 3–8S LiPo FPV systems, with 80A continuous current and 90A peak current for 10 seconds.

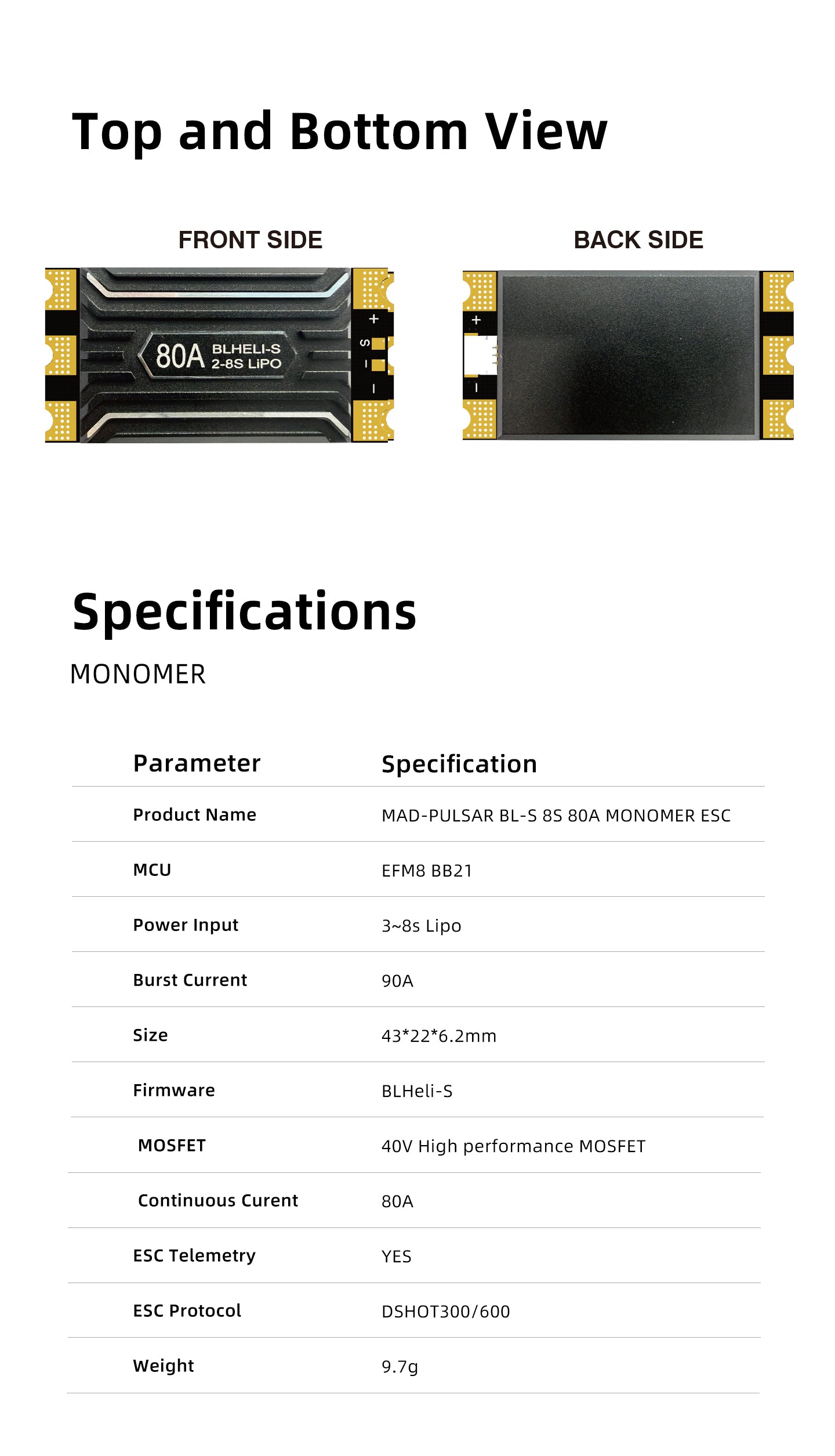

Technical Specifications

Model Pulsar-BL-S 8S 80A Single

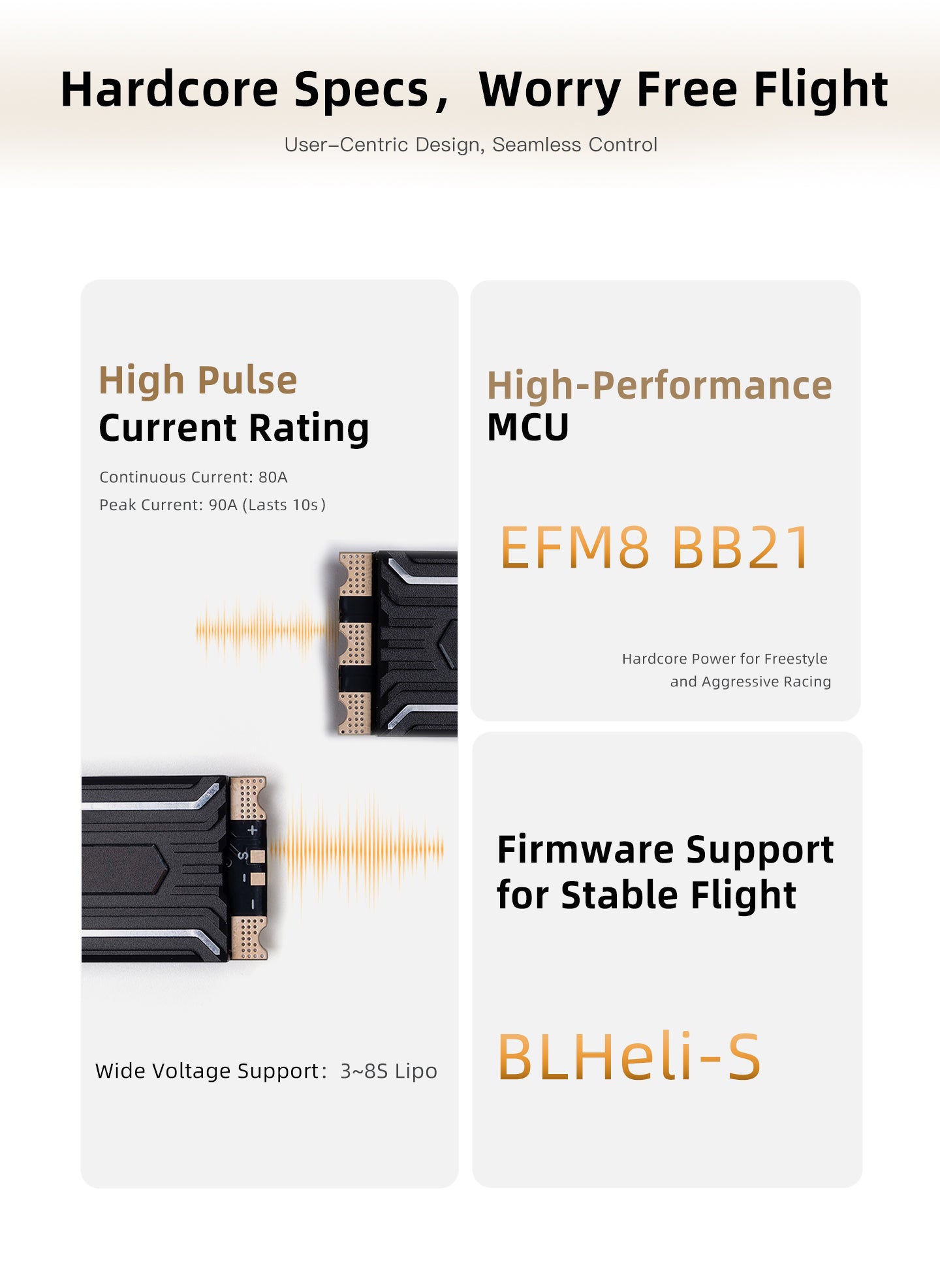

MCU EFM8 BB21
Firmware BLHeli-S
MOSFET 40V high-performance MOSFET
Input 3–8S LiPo
Continuous current 80A
Peak current 90A
Telemetry No
Protocol DSHOT300/600

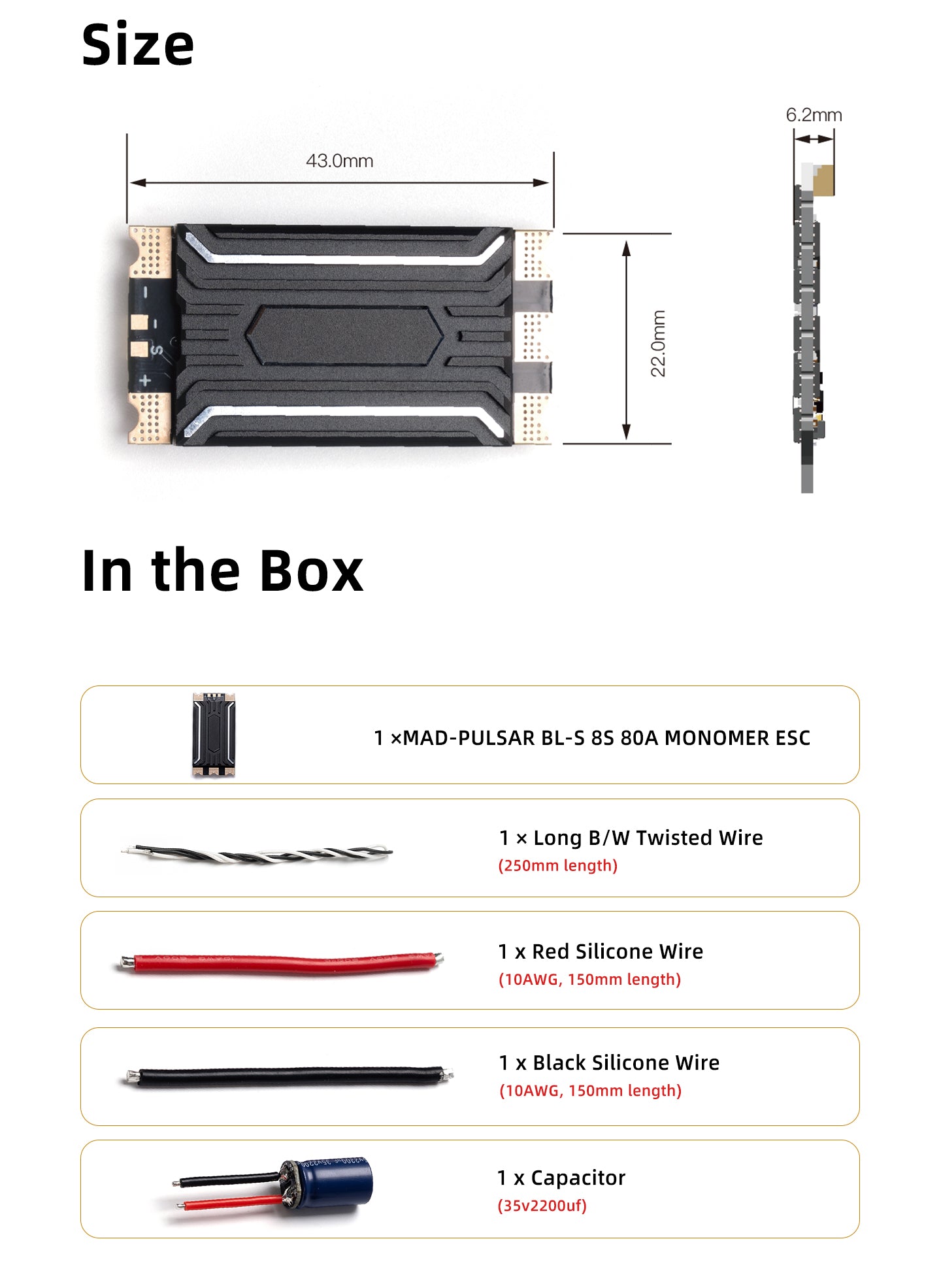

Dimensions 43 × 22 × 6.2mm
Weight 9.7g

Selection Notes

Use the single-channel format when separate ESC installation suits the aircraft wiring and power layout. Confirm cooling, interfaces and mounting before ordering.

Request a Quote

Send battery cell count, motor model, controller, quantity and required configuration for a quotation.

The continuous current of the 4-in-1 ESC is the operating current under forced air cooling, provided that forced air cooling is used to keep the overall temperature below 90 degrees. FPV series aircraft come with built-in forced air cooling and can use this during high-speed flight. However, long-endurance aircraft typically use low KV motors without forced air cooling, so they cannot be used.

Q: How to Identify & Choose “BLHeli_S” or “BLHeli_32”
A: Identification: The easiest way is to check the label/sticker on your ESC — it usually states “BLHeli_S” or “BLHeli_32”. If not, refer to the product manual or specifications.

Software Compatibility: Do NOT mix up the configuration tools. Use BLHeliSuite for BLHeli_S and BLHeliSuite32 for BLHeli_32. Attempting to use the wrong suite will fail to detect the ESC.

Choice Guidance:
1. Choose BLHeli_S if you’re building a budget-friendly drone, performing casual flying, or simply need a reliable, proven system.
2.Choose BLHeli_32 if you’re building a high-performance racing/freestyle drone, require advanced telemetry (e.g., for RPM filtering), or want the best throttle response and protection features.

Product FAQ
What is the MAD PULSAR BL-S 8S 80A Single intended for?

This product is intended for UAV and multirotor integration where the listed model and configuration match the aircraft design. Confirm motor, ESC, battery, mounting, clearance and flight-test requirements before ordering.

How should I confirm compatibility for the MAD PULSAR BL-S 8S 80A Single?

Please provide the aircraft or propulsion-system model, required quantity, operating environment and installation details. Check the published product information against the manufacturer's operating range; do not select from the name alone.

Can the MAD PULSAR BL-S 8S 80A Single be considered for OEM procurement?

It can be evaluated for an OEM or fleet project when the specification matches the target aircraft. For a quotation, share the model, quantity, application, destination and packaging or documentation requirements so compatibility and production details can be confirmed.

Frequently bought together

Pair this item with the accessories buyers usually evaluate in the same quote.

Total $225.50

4 items selected

Application scenarios

Built for teams that need continuous thrust and clear configuration options before locking a volume SKU.

UAV Propulsion Integration

UAV Propulsion Integration

Conceptual application for integrating the MAD PULSAR BL-S 8S 80A Single into a compatible UAV propulsion system. Validate installation, loading, clearance and operating limits on the actual aircraft before deployment.

Professional UAV Platforms

Conceptual application for professional UAV development using the MAD PULSAR BL-S 8S 80A Single. Confirm system interfaces, payload requirements and environmental conditions through the integrator's design review and flight testing.

OEM and Fleet Evaluation

Conceptual application for an OEM or fleet evaluation of the MAD PULSAR BL-S 8S 80A Single. Final selection should follow aircraft-specific compatibility checks, procurement requirements and documented test procedures.
